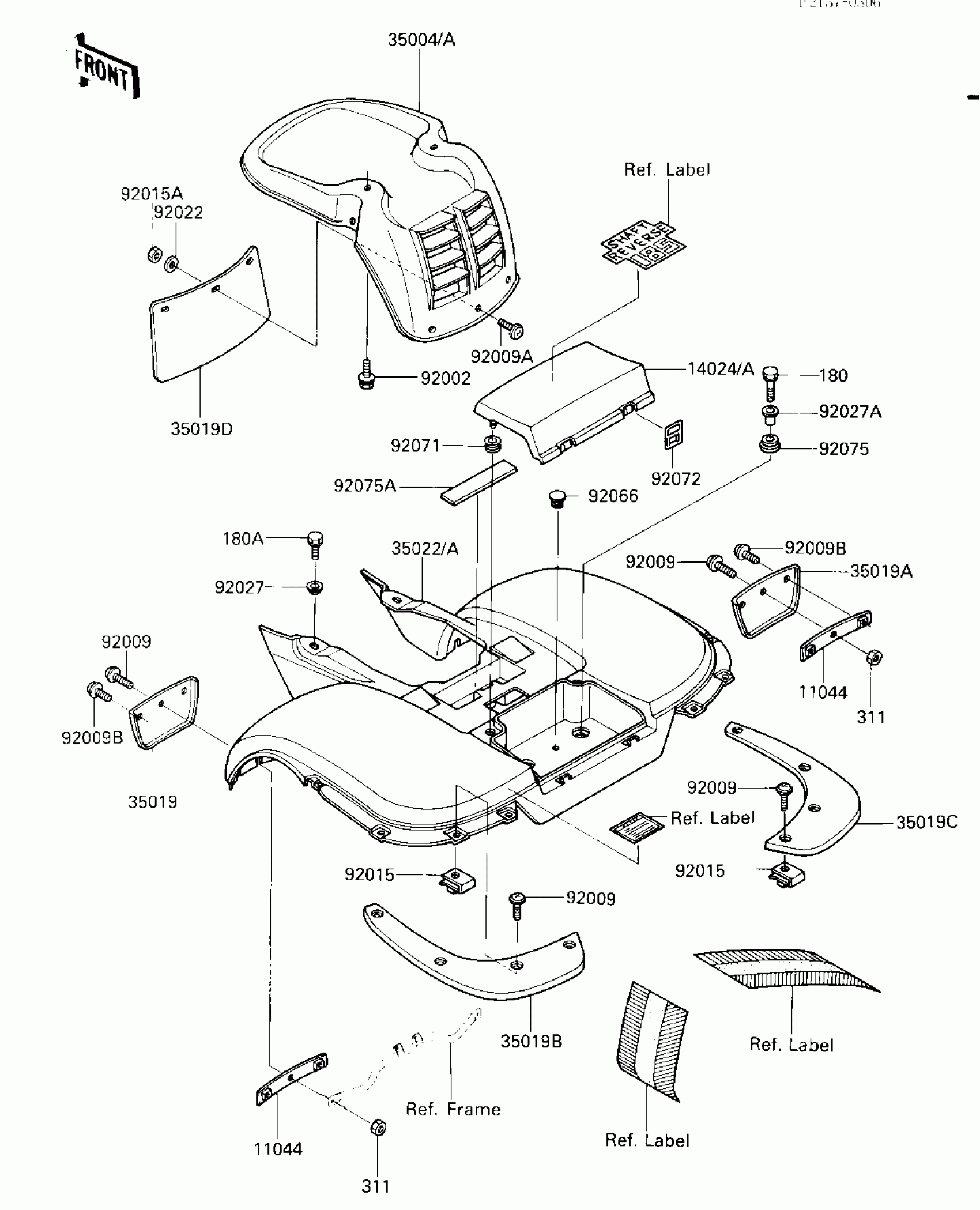

Kawasaki KLT185 FENDERS Diagram
#
Description
Price
11044
BRACKET,FLAP
11044-1385
Unavailable
14024
COVER,REAR FENDER
14024-1103-6D
Unavailable
14024A
COVER,REAR FENDER RED
14024-1103-6L
Unavailable
35004
FENDER-FR,EBONY
35004-1160-6D
Unavailable
35004A
FENDER-FRONT,F.RED
35004-1160-6L
$93.98
35019
FLAP,FRONT,LH
35019-1154
Unavailable
35019A
FLAP,FRONT,RH
35019-1155
Unavailable
35019B
FLAP,REAR,LH
35019-1156
Unavailable
35019C
FLAP,REAR,RH
35019-1157
Unavailable
35019D
FLAP,REAR FENDER
35019-1212
$36.45
35022
FENDER-COMP-REAR
35022-1215-6D
$110.20
35022A
FENDER-COMP-REAR RED
35022-1215-6L
$110.20
92002
BOLT,6X18
92001-1944
Unavailable
92009
SCREW,6X18
92009-1663
Unavailable
92009A
SCREW,6X14,WHITE
92009-1287
$2.55
92009B
SCREW,6X14
92009-1288
$3.92
92015
NUT
92015-1248
$9.97
92015A
NUT,6MM
92015-1410
$3.92
92022
WASHER,6.5X20X1.6
92022-125
$1.40
92027
COLLAR
92027-122
$8.60
92027A
COLLAR
92027-1767
$5.52
92066
PLUG,11X3.2
92074-038
$7.22
92071
GROMMET
92071-056
$4.26
92072
BAND
92072-1182
Unavailable
92075
DAMPER RUBBER
92075-112
$4.31
92075A
DAMPER,TOOL
92075-1799
$5.03
180
BOLT-UPSET-WS
180C0622
$2.98
180A
BOLT-UPSET-WS
180D0614
Unavailable
311
NUT 6MM
311B0600
$0.93
