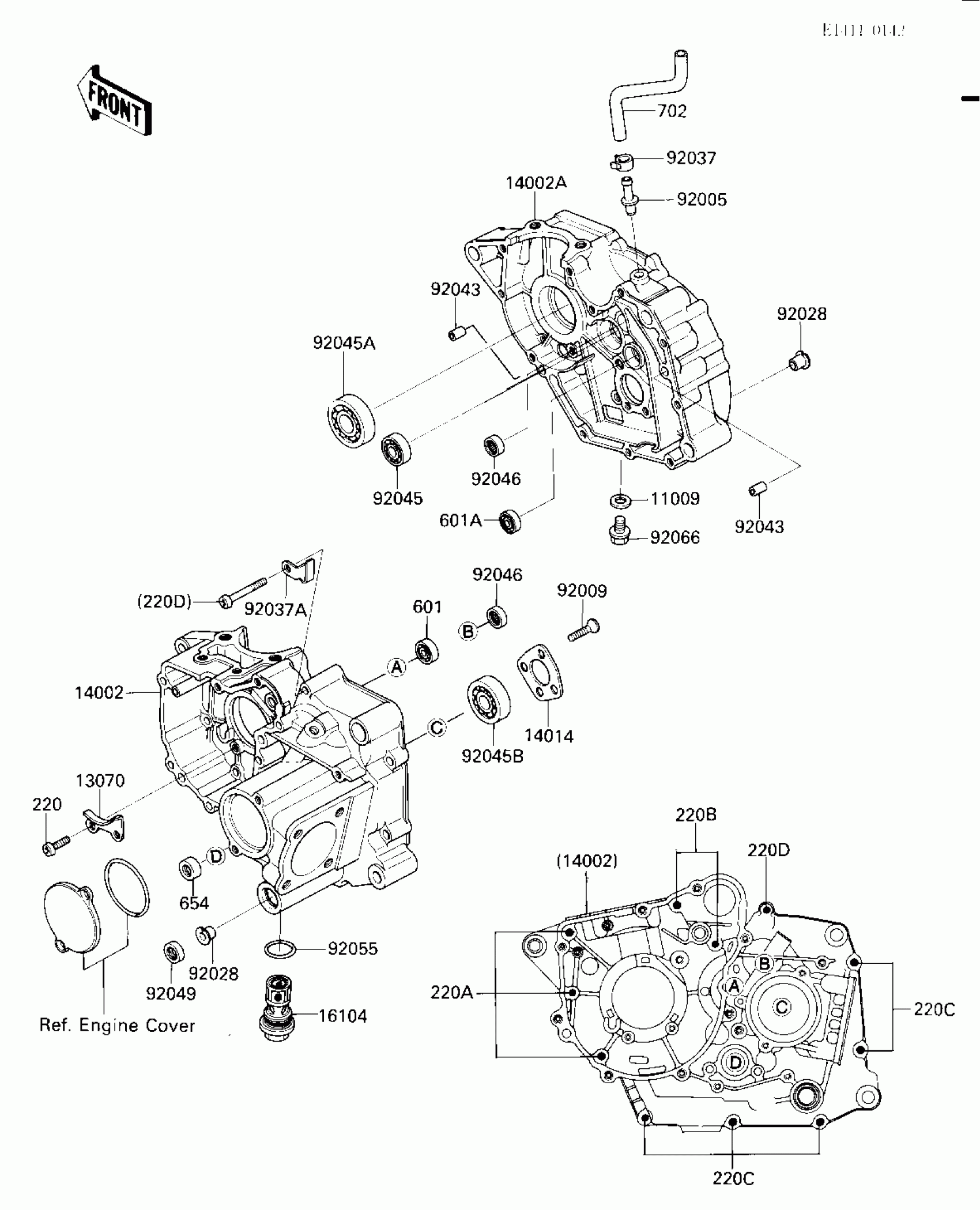

Kawasaki KLT185 CRANKCASE Diagram
#
Description
Price
11009
GASKET,12X22X2
92065-097
$0.74
13070
GUIDE,CAM CHAIN
13070-1110
Unavailable
14002
CRANKCASE,LH
14002-1370
Unavailable
14002A
CRANKCASE,RH
14002-1371
Unavailable
14014
PLATE-POSITION
14014-1055
Unavailable
16104
FILTER-COMP
16104-1055
Unavailable
92005
FITTING,BREATHER PIPE
92005-1124
$20.02
92009
SCREW,6X14
92009-1349
$4.18
92028
BUSHING
92028-1386
$17.40
92037
CLAMP,HOSE CLIP
92037-1181
$3.36
92037A
CLAMP
92037-1724
$5.33
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92045
BEARING-BALL,#6204
92045-1032
$26.25
92045A
BEARING-BALL,6305JR2C3
92045-1120
$36.26
92045B
BEARING-BALL,TMB304CCM
92045-1142
$40.43
92046
BRG,NEEDLE,HMK1515B
92046-060
$18.53
92049
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,25.7X2.4
92055-1136
$5.00
92066
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
220
SCREW-PAN-CROS,6X14
220B0614
$1.48
220A
SCREW-PAN-CROS,6X60
220B0660
$1.79
220B
SCREW PAN HEAD 6X70
220B0670
$3.84
220C
SCREW-PAN-CROS
220X0635
$4.02
220D
SCREW-PAN-CROS
220X0650
$3.84
601
BEARING-BALL
601A6202Z
$18.46
601A
BEARING-BALL,#6202C3
601B6202
$8.64
654
SEAL OIL
654B14257
$12.11
702
TUBE-RUBBER
702A08400
$6.34
