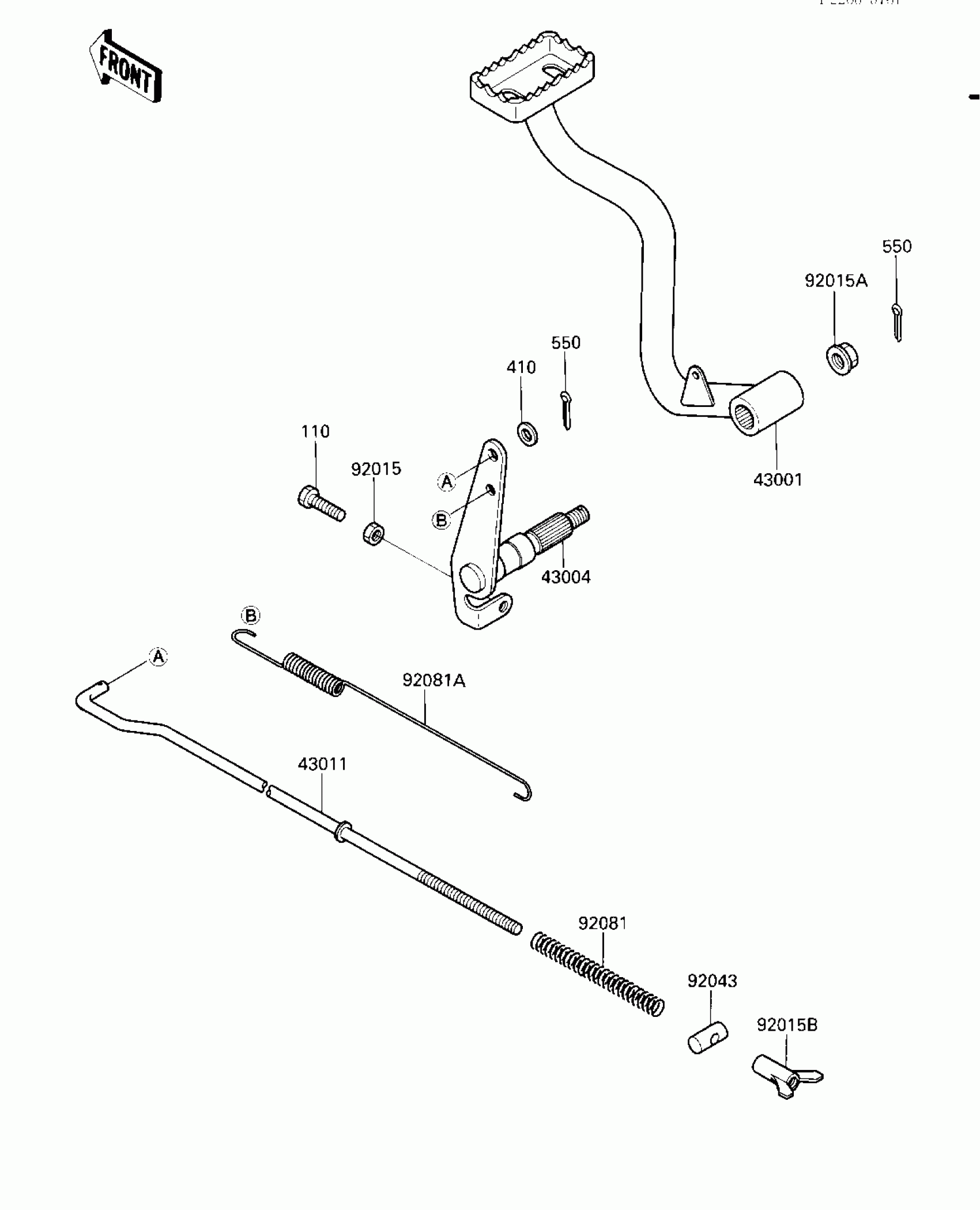

Kawasaki KLT185 BRAKE PEDAL Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1162

$58.35

43004

SHAFT-BRAKE

43004-1114

$32.52

43011

ROD-BRAKE

43011-1106

Unavailable

92015

NUT,6MM

92015-1410

$3.92

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92015B

NUT,WING,6MM

92015-1497

Unavailable

92043

PIN,12X20

92043-1280

Unavailable

92081

SPRING,BRAKE ROD

43012-001

$4.65

92081A

SPRING,BRAKE PEDAL RE

92081-1939

Unavailable

110

BOLT

110D0622

$4.30

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

550

PIN COTTER 2.0X15

550D2015

$1.04
