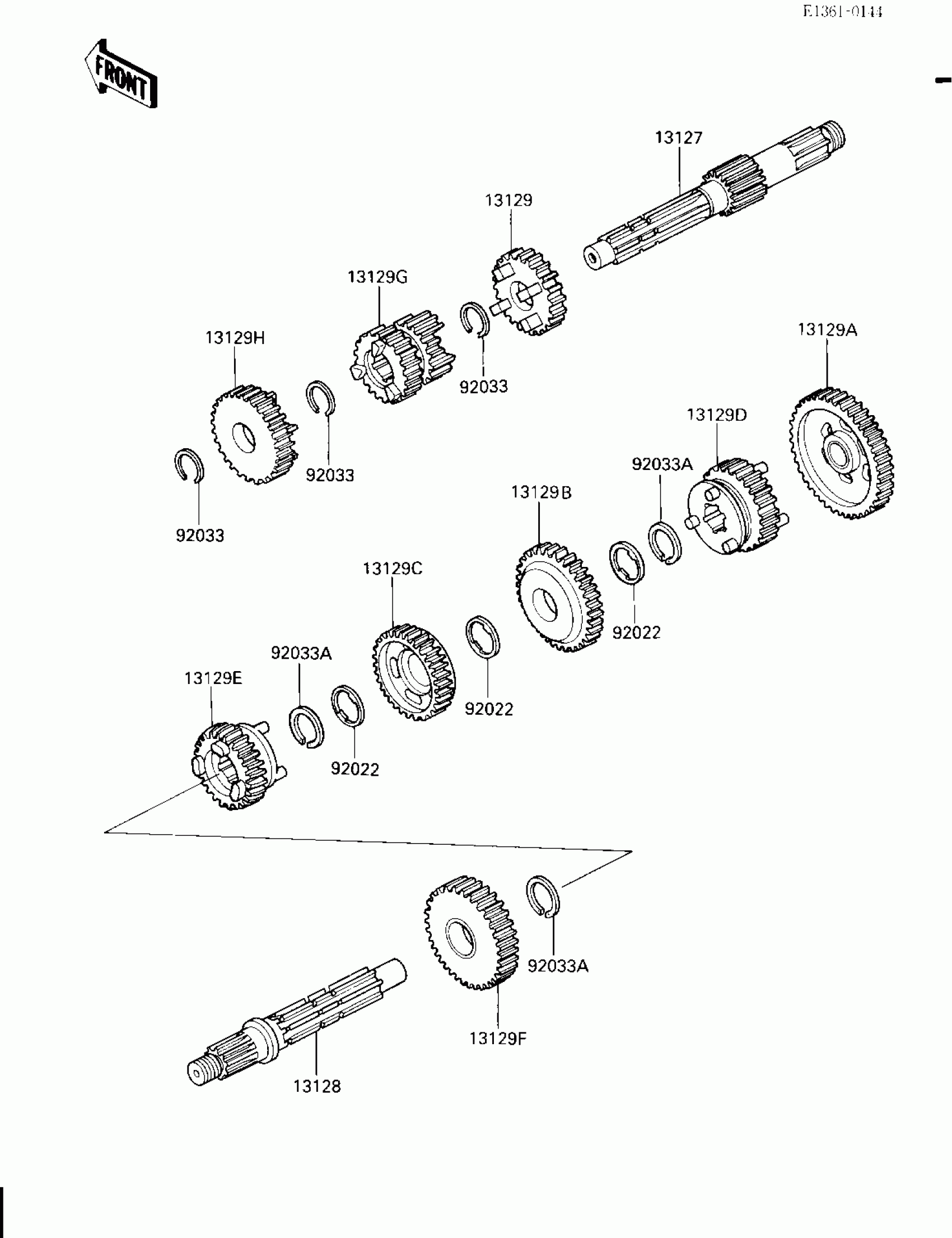

Kawasaki KLT160 TRANSMISSION Diagram

#

Description

Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-1109

Unavailable

13128

SHAFT-TRANSMISSION OU

13128-1106

Unavailable

13129

GEAR,INPUT 4TH,26T

13129-1541

Unavailable

13129A

GEAR,OUTPUT LOW,40T

13129-1543

Unavailable

13129B

GEAR,OUTPUT 2ND,35T

13129-1544

Unavailable

13129C

GEAR,OUTPUT 3RD,30T

13129-1545

Unavailable

13129D

GEAR,OUTPUT 4TH,28T

13129-1546

Unavailable

13129E

GEAR,OUTPUT TOP,26T

13129-1547

Unavailable

13129F

GEAR,REVERSE,33T

13129-1548

Unavailable

13129G

GEAR-INPUT 2ND,23T&19

13129-1673

Unavailable

13129H

GEAR,INPUT TOP,28T

13129-1674

Unavailable

92022

WASHER,LOCK

92024-059

$5.25

92033

RING-SNAP

92033-028

$8.79

92033A

RING-SNAP,18MM

92033-029

$9.82
