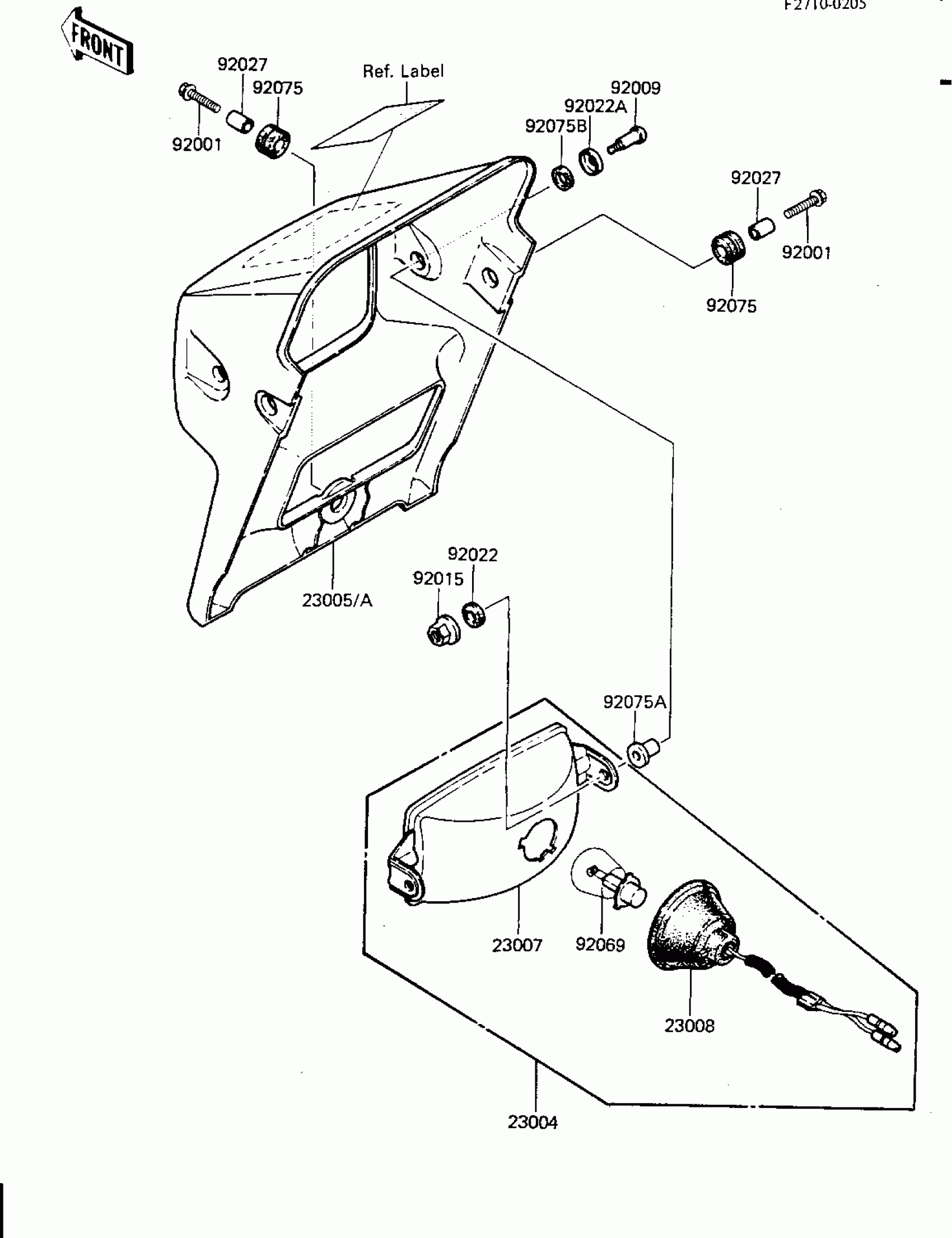

Kawasaki KLT160 HEADLIGHT Diagram

Description

Price

23004

LAMP-HEAD

23004-1175

$200.42

23005

BODY-COMP-HEAD LAMP,B

23005-4006-6D

Unavailable

23005A

BODY-COMP-HEAD LAMP,W

23005-4006-8S

Unavailable

23007

LENS-COMP

23007-1120

Unavailable

23008

SOCKET H.L.

23008-4004

$55.49

92001

UNAVAILABLE IN PRICE BOOK

92001-185

Unavailable

92009

SCREW,5MM

92009-1343

$3.02

92015

NUT,5MM

23020-023

Unavailable

92022

WASHER,PLAIN,5MM

23021-012

$5.43

92022A

WASHER,HEAD LAMP

92022-1597

$3.52

92027

COLLAR,6.8X10X11.5

92027-1210

$10.28

92069

BULB,12V 45/45W

92069-1061

$13.28

92075

DAMPER

92075-1057

$4.92

92075A

DAMPER,HEAD LAMP

92075-4009

Unavailable

92075B

DAMPER,HEAD LAMP

92075-4010

Unavailable
