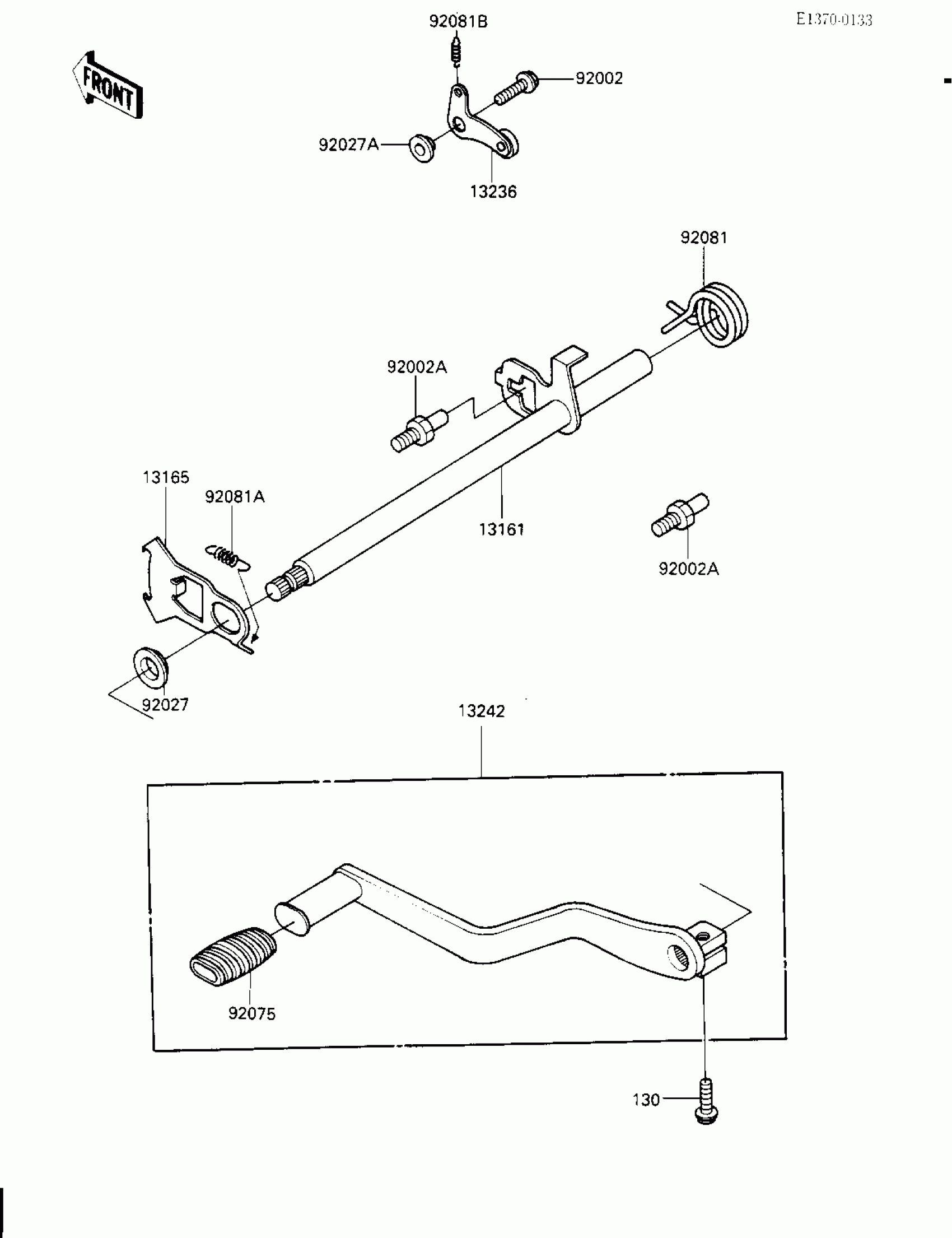

Kawasaki KLT160 GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1110

Unavailable

13165

PAWL,CHANGE LEVER

13165-1112

Unavailable

13236

LEVER-COMP,CHANGE DRU

13236-1104

Unavailable

13242

LEVER-ASSY-CHANGE,PED

13242-1168

Unavailable

92002

BOLT,6X20

92002-1237

$3.29

92002A

BOLT,SOCKET,4X8

92002-1408

$5.75

92027

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92027A

COLLAR,L=5.2

92027-1716

$3.15

92075

DAMPER,FUEL TANK

92075-1716

$8.04

92081

SPRING,CHANGE SHAFT R

92081-1684

$11.66

92081A

SPRING,CHANGE LEVER

92081-1753

$5.71

92081B

SPRING,CHANGE DRUM LEVER

92083-012

$3.54

130

BOLT-FLANGED,6X20

130S0620

Unavailable
