1985 Kawasaki KLT160 Drive Shaft/final Gears Diagram

← All diagrams

Find the part on the Drive Shaft/final Gears diagram for your 1985 Kawasaki KLT160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

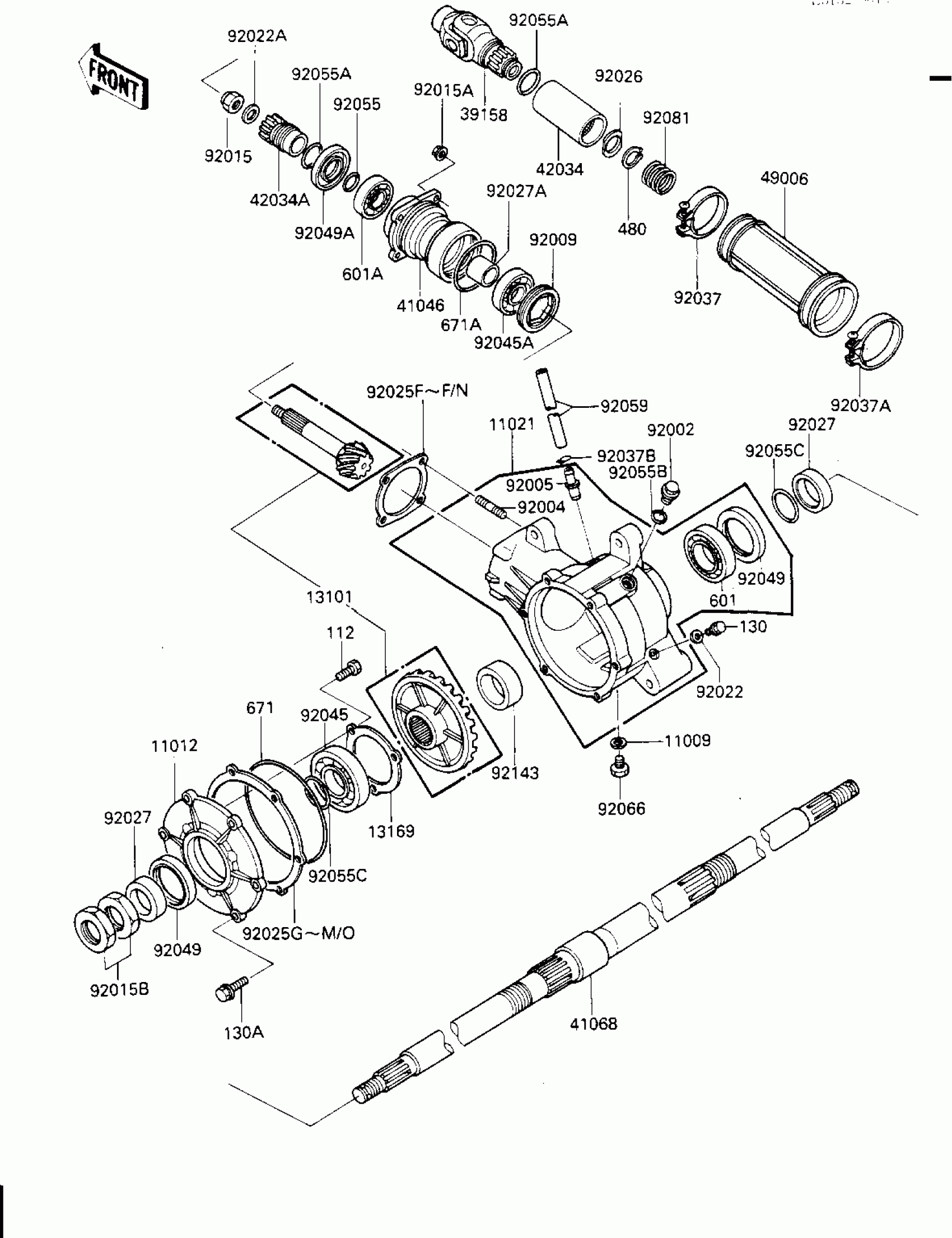

1985 Kawasaki KLT160 Drive Shaft/final Gears Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1
Out of stock

11012

CAP

11012-1375

1
Out of stock

11021

CASE-ASSY,FINAL GEAR

11021-1051

1
Out of stock

13101

GEAR-ASSY,FINAL BEVEL

13101-5045

1
Out of stock

13169

PLATE

13169-1751

1
Out of stock

39158

SHAFT-ASSY-DRIVE

39158-1053

1

$120.53

In stock

41046

HOUSING-BEARING

41046-1052

1

$165.26

In stock

41068

AXLE,FINAL

41068-1172

1
Out of stock

42034

COUPLING,DRIVE SHAFT

42034-1058

1
Out of stock

42034A

COUPLING

42034-1059

1
Out of stock

49006

BOOT

49006-1160

1
Out of stock

92002

BOLT,16X10

92002-1238

1
Out of stock

92004

STUD,6X18

92004-1127

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92009

SCREW

92009-1290

1
Out of stock

92015

NUT,12MM

92015-1182

1
Out of stock

92015A

NUT,6MM

92015-1365

1
Out of stock

92015B

NUT,LOCK,32MM

92015-1493

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER,12.3X25X3.2

92022-1293

1
Out of stock

92025

SHIM,T=0.1

92025-1545

—
Out of stock

92025A

SHIM,T=0.5

92025-1546

—
Out of stock

92025B

SHIM,T=0.7

92025-1547

—
Out of stock

92025C

SHIM,T=0.8

92025-1548

—
Out of stock

92025D

SHIM,T=0.9

92025-1549

—
Out of stock

92025E

SHIM,T=1.0

92025-1550

—
Out of stock

92025F

SHIM,T=1.2

92025-1551

—
Out of stock

92025G

SHIM,T=0.1

92025-1552

—
Out of stock

92025H

SHIM,T=0.5

92025-1553

—
Out of stock

92025I

SHIM,T=0.7

92025-1554

—
Out of stock

92025J

SHIM,T=0.8

92025-1555

—
Out of stock

92025K

SHIM,T=0.9

92025-1556

—
Out of stock

92025L

SHIM,T=1.0

92025-1557

—
Out of stock

92025M

SHIM,T=1.2

92025-1558

—
Out of stock

92025N

SHIM,T=0.15

92025-1577

—
Out of stock

92025O

SHIM,T=0.15

92025-1578

—
Out of stock

92026

SPACER,DRIVE SHAFT

92026-1106

1
Out of stock

92027

COLLAR,L=13.5

92027-1718

1
Out of stock

92027A

COLLAR

92027-1724

1
Out of stock

92037

CLAMP

92037-1523

1
Out of stock

92037A

CLAMP

92037-1554

1
Out of stock

92037B

CLAMP

92037-1610

1
Out of stock

92045

BEARING-BALL

92045-1110

1
Out of stock

92045A

BEARING-BALL,TMB304CCM

92045-1142

1
Out of stock

92049

SEAL-OIL

92049-1167

1
Out of stock

92049A

SEAL-OIL

92049-1170

1
Out of stock

92055

RING-O,17.5X1.5

92055-022

1
Out of stock

92055A

RING-O,27MM

92055-1119

1
Out of stock

92055B

RING-O,ID=13.8

92055-1141

1
Out of stock

92055C

RING-O,33X1.6

92055-4002

1
Out of stock

92059

TUBE,6X9X750

92059-1372

1
Out of stock

92066

PLUG,DRAIN,10X12

92067-001

1
Out of stock

92081

SPRING

92081-1650

1
Out of stock

92143

COLLAR,40X50X20

92143-1003

1
Out of stock

112

BOLT-UPSET,6X12

112G0612

1
Out of stock

130

BOLT-FLANGED

130H0608

1
Out of stock

130A

BOLT-FLANGED

130H0620

1
Out of stock

480

CIRCLIP-TYPE-C,20MM

480J2000

1
Out of stock

601

BEARING-BALL,#6007C3

601B6007

1
Out of stock

601A

BEARING-BALL,#6204C3

601B6204

1
Out of stock

671

O RING

671B25125

1
Out of stock

671A

O RING,60MM

671B2560

1
Out of stock
