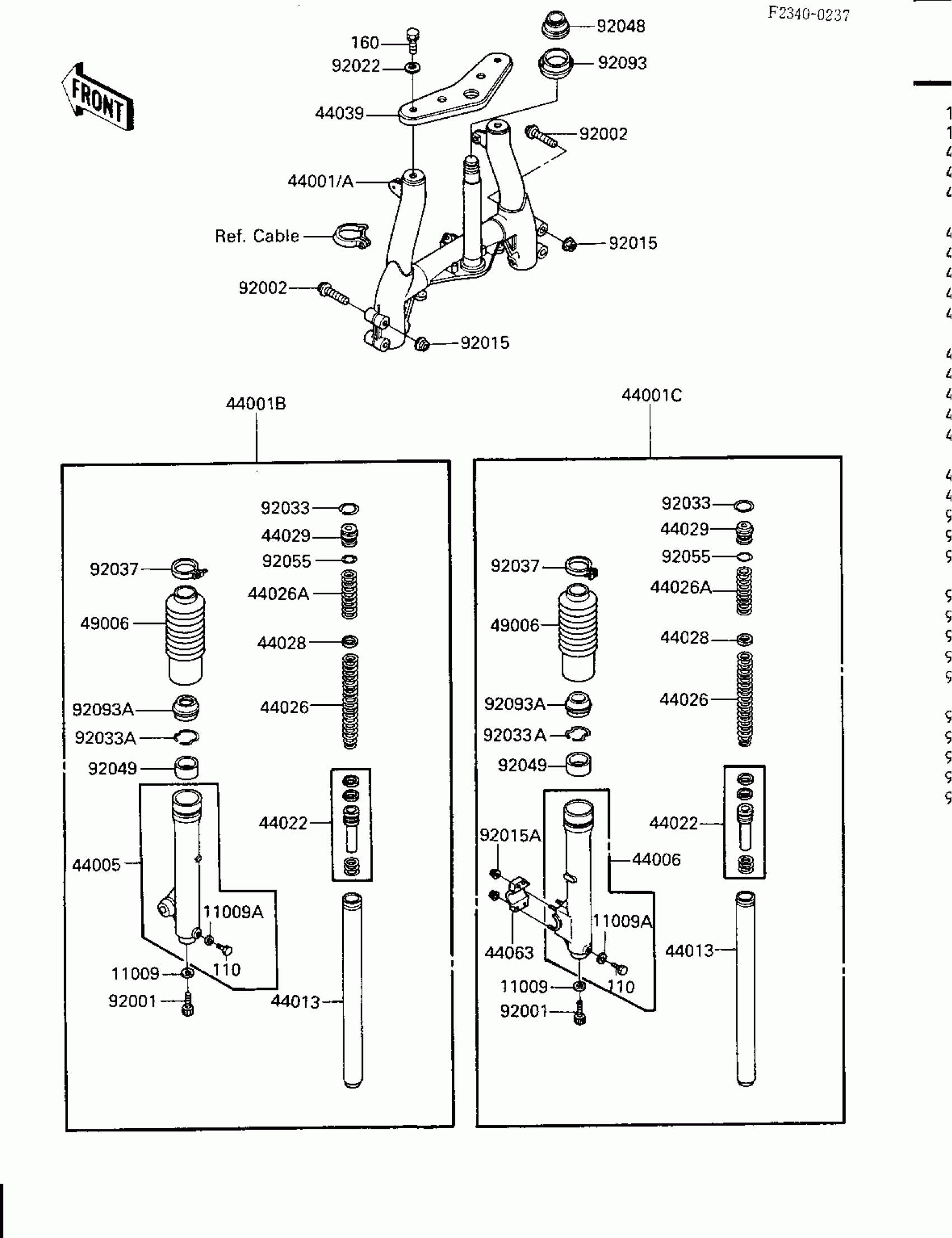

Kawasaki KLT160 FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

11009A

UNAVAILABLE IN PRICE BOOK

44045-05

Unavailable

44001

FORK-FR,EBONY

44001-1563-8G

$253.87

44001A

FORK-FR,W.RED

44001-1563-8R

$243.56

44001B

FORK-FRONT,LH

44001-1613

$933.38

44001C

FORK-FRONT,RH

44001-1614

$460.94

44005

PIPE-LEFT FORK OUTER

44005-1240

$132.59

44006

PIPE-RIGHT FORK OUTER

44006-1239

$129.33

44013

PIPE-FORK INNER

44013-1215

$184.88

44022

CYLINDER-FORK

44022-1164

$58.87

44026

SPRING-FRONT FORK

44026-1270

$20.40

44026A

SPRING-FRONT FORK

44026-1271

$11.19

44028

GUIDE-FORK SPRING

44028-1053

$9.37

44029

SEAT-FORK SPRING

44029-022

$11.61

44039

HOLDER FORK UPPER-BLK

44039-4006

$48.65

44063

HOLDER-FRONT AXLE

44063-1052

$45.36

49006

BOOT,FORK

49006-1163

Unavailable

92001

BOLT,FORK CYLINDER

92001-1464

$6.22

92002

BOLT,FLANGED,10X50

92002-1314

$8.66

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92015A

NUT,FLANGED

92015-1399

$3.69

92022

WASHER,10.5X35X4,BLAC

92022-4027

$6.41

92033

RING-SNAP

44044-023

$5.46

92033A

RING-SNAP,FORK OUTER TUBE

92033-1028

$4.65

92037

CLAMP

92037-1519

$17.31

92048

RACE,STEERING STEM BEARING

92047-010

$10.51

92049

SEAL-OIL,FORK OUTER TUBE

92049-1069

$19.64

92055

RING-O

44046-025

$6.57

92093

SEAL,STEERING STEM

44010-027

Unavailable

92093A

SEAL,FORK OUTER

92093-1167

$13.44

110

BOLT HEX HEAD 6X8

110B0608

$0.18

160

BOLT-FINE-WS

160J1030

$4.04
