Description

Price

11034

BRACKET,FLAP

11034-4062

Unavailable

11034A

BRACKET,FLAP

11034-4063

Unavailable

14024

COVER,SEAT,EBONY

14025-1921-6D

Unavailable

14024A

COVER,SEAT,RED

14025-1921-8S

Unavailable

27012

HOOK,TAIL LAMP

27012-1319

$8.42

35004

FENDER-FR,EBONY

35004-1160-6D

Unavailable

35004A

FENDER-FR,W.RED

35004-1160-8S

Unavailable

35019

FLAP,RR FENDER

35019-4005

Unavailable

35019A

FLAP,FR FENDER

35019-4008

Unavailable

35022

FENDER-RR,BLACK

35022-4004-6D

$99.93

35022A

FENDER-RR,RED

35022-4004-8S

Unavailable

53044

TRIM,SEAT COVER

53044-1129

$29.30

92002

BOLT,6X18

92001-1944

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$2.55

92015

NUT,6MM

92015-1410

$3.92

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR

92027-122

$8.60

92027A

COLLAR

92027-1767

$5.52

92066

PLUG,11X3.2

92074-038

$7.22

92072

BAND

92072-4008

Unavailable

92075

DAMPER RUBBER

92075-112

$4.31

180

BOLT-UPSET-WS

180C0622

$2.98

180A

BOLT-UPSET-WS

180D0614

Unavailable

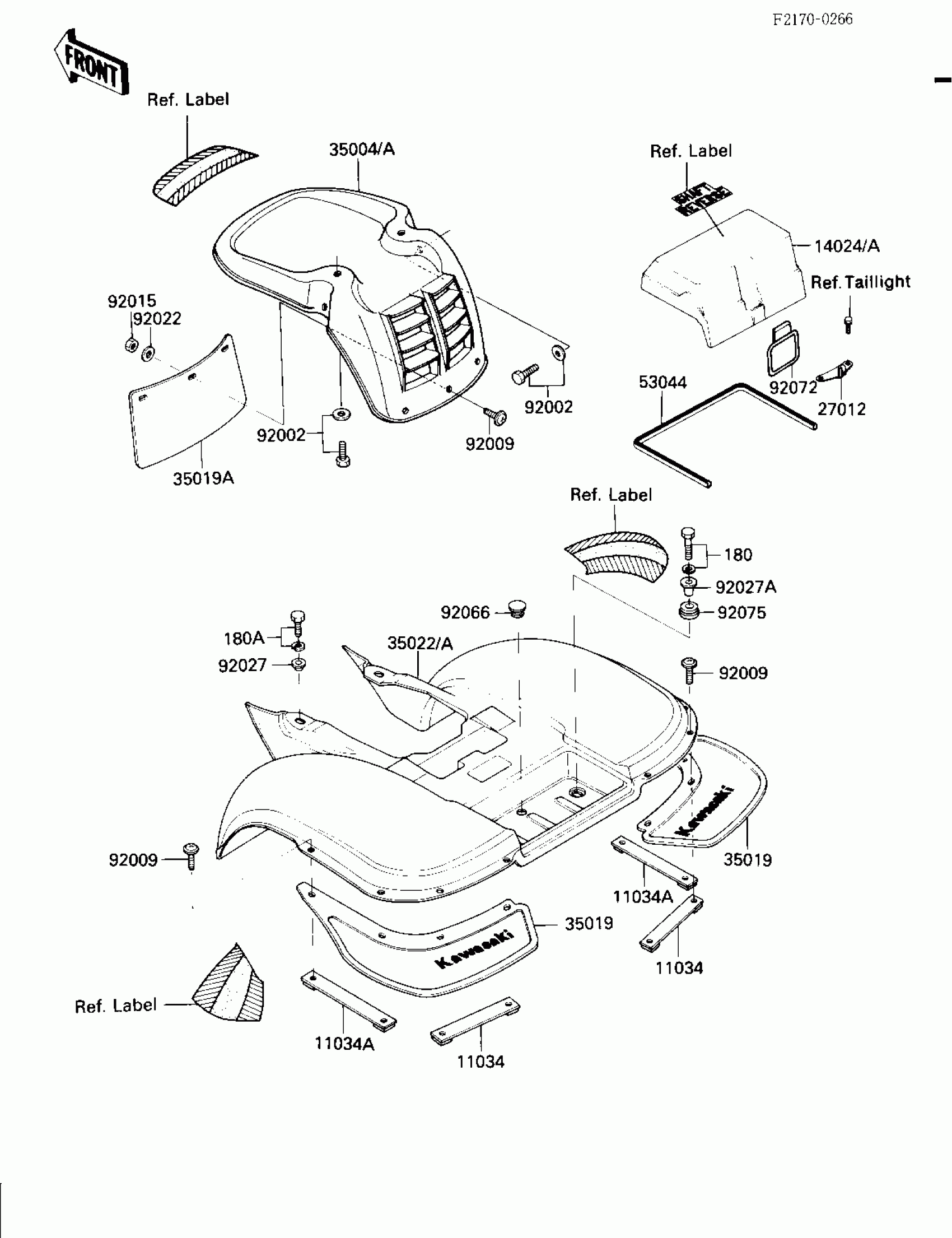

Kawasaki KLT160 FENDERS Diagram

BRACKET,FLAP

BRACKET,FLAP

COVER,SEAT,EBONY

COVER,SEAT,RED

HOOK,TAIL LAMP

FENDER-FR,EBONY

FENDER-FR,W.RED

FLAP,RR FENDER

FLAP,FR FENDER

FENDER-RR,BLACK

FENDER-RR,RED

TRIM,SEAT COVER

BOLT,6X18

SCREW,6X14,WHITE

NUT,6MM

WASHER,6.5X20X1.6

COLLAR

COLLAR

PLUG,11X3.2

BAND

DAMPER RUBBER

BOLT-UPSET-WS

BOLT-UPSET-WS
