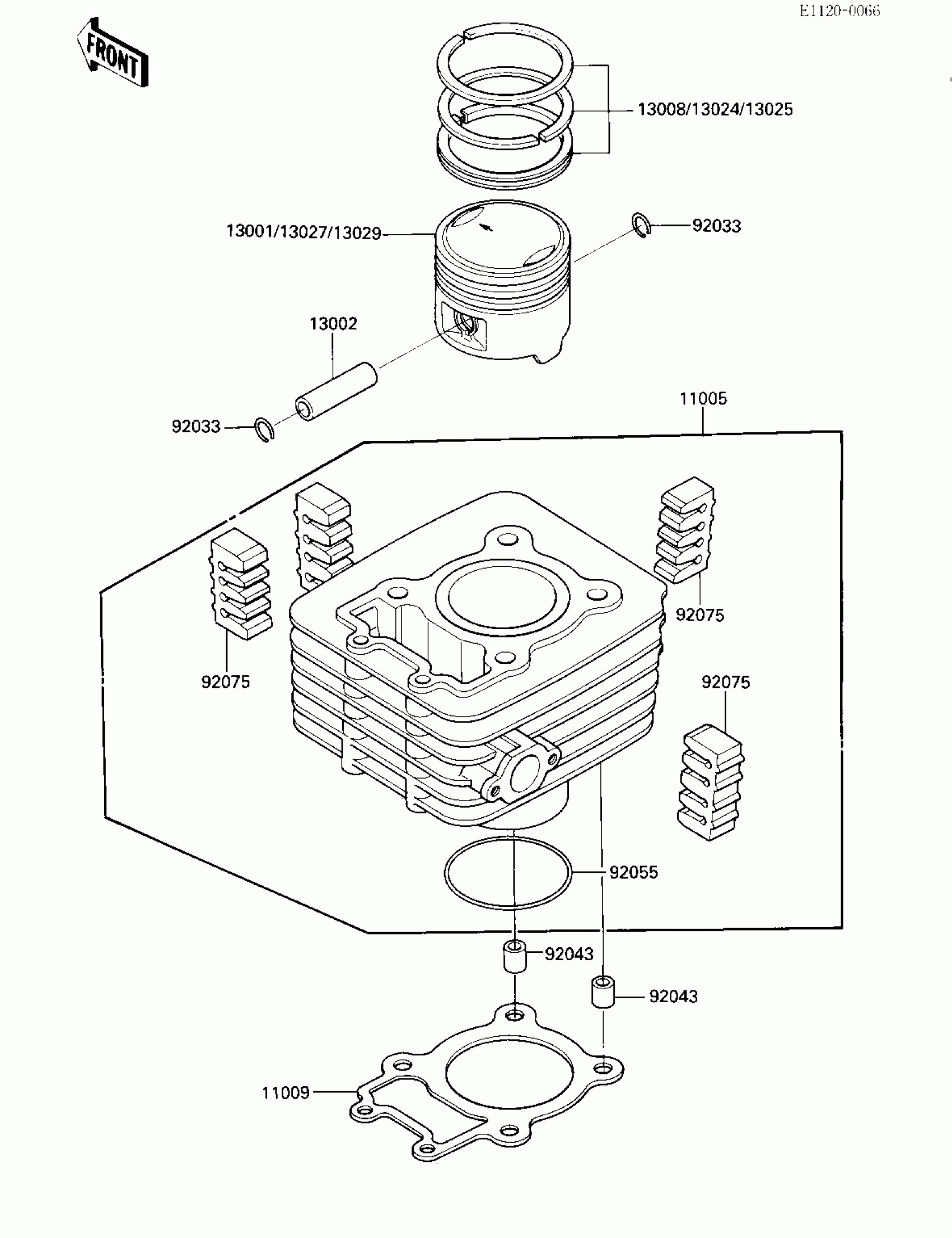

Kawasaki KLT160 CYLINDER/PISTON Diagram

#

Description

Price

11005

CYLINDER-ENGINE

11005-1354

Unavailable

11009

GASKET,CYLINDER BASE

11009-1392

Unavailable

13001

PISTON-ENGINE,STD

13001-1176

Unavailable

13002

PIN-PISTON

13002-1008

Unavailable

13008

RING-SET-PISTON,STD

13008-1057

Unavailable

13024

RING-SET PISTON LL,O/

13024-1057

Unavailable

13025

RING-SET PISTON L,O/S

13025-1057

Unavailable

13027

PISTON-ENGINE LL,O/S,

13027-1122

Unavailable

13029

PISTON-ENGINE L,O/S,0

13029-1121

Unavailable

92033

RING-SNAP,PISTON PIN

92033-1151

$3.89

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,67.5MM

92055-1035

Unavailable

92075

DAMPER

92075-1657

$13.84
