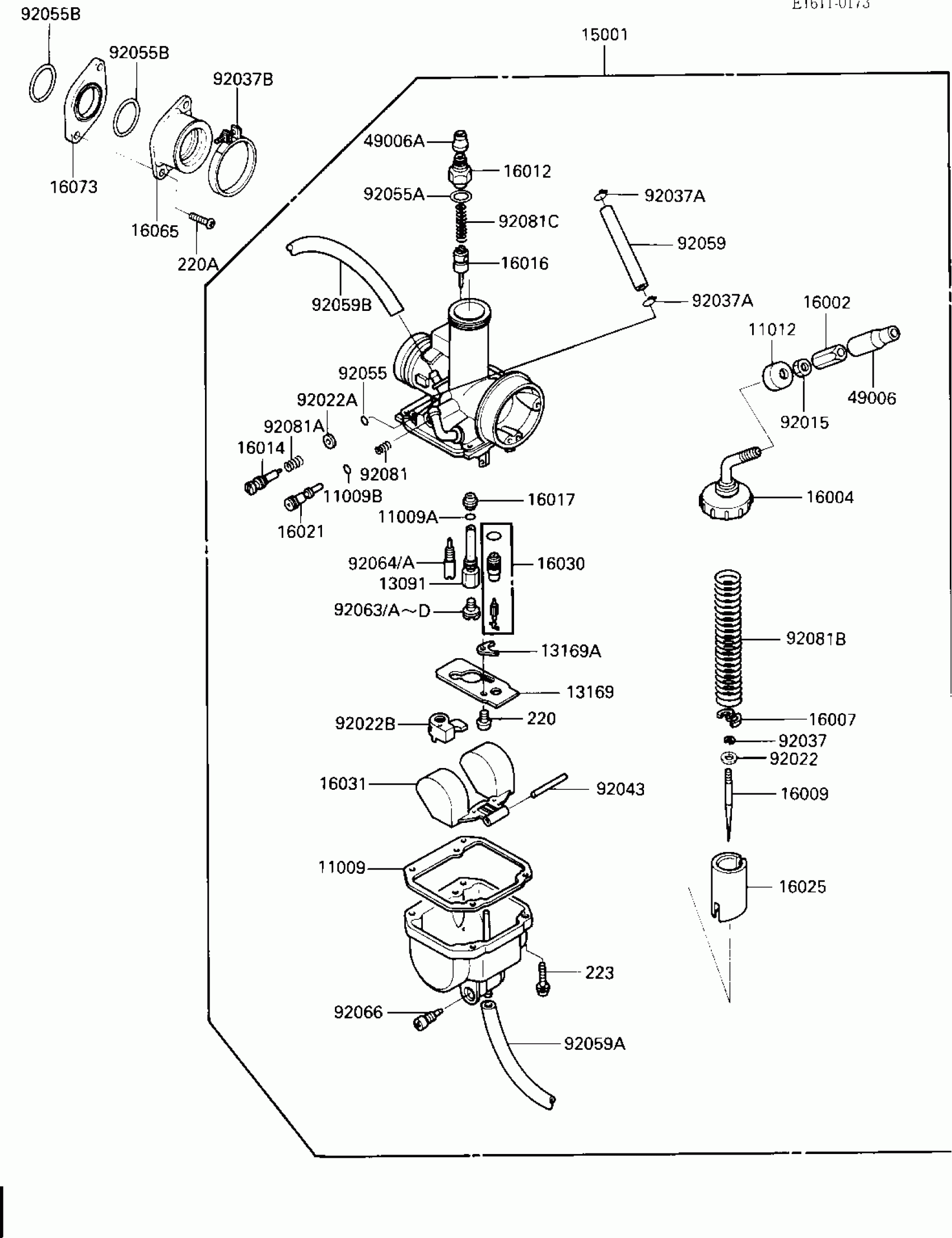

Kawasaki KLT160 CARBURETOR Diagram
#
11009
GASKET,FLOAT CHAMBER
11009-1409
Unavailable
11009A
"0" RING,MAIN JET COV
16038-016
$3.02
11009B
GASKET,"O"RING
16038-022
$6.89
11012
CAP,CHAMBER CAP
11012-1389
Unavailable
13091
HOLDER,NEEDLE JET
13091-1348
Unavailable
13169
PLATE,FLOAT CHAMBER
13169-1808
Unavailable
13169A
PLATE,LOCK
13169-1809
$6.57
15001
CARB ASSY
15001-1233
$316.62
16002
ADJUSTER-CABLE
16002-1052
$15.06
16004
CAP-CHAMBER
16004-1052
$63.67
16007
SEAT-SPRING,THROTTLE VALVE
16007-1111
$5.83
16009
NEEDLE-JET,5J14
16009-1247
Unavailable
16012
CAP-STARTER PLUNGER
16012-1056
$15.45
16014
SCREW-PILOT AIR
16014-1052
$18.80
16016
PLUNGER,STARTER
16016-1056
Unavailable
16017
JET-NEEDLE,O-2
16017-1244
$45.79
16021
SCREW-THROTTLE STOP
16021-1111
Unavailable
16025
VALVE-THROTTLE,CA3.5
16025-1117
$142.37
16030
VALVE-FLOAT,#1.5
16030-1058
$60.56
16031
FLOAT
16031-1055
$53.59
16065
HOLDER-CARBURETOR
16065-1109
Unavailable
16073
INSULATOR
16073-1053
$10.56
49006
BOOT,CABLE ADJUSTER
49006-1084
$6.16
49006A
BOOT,STARTER PLUNGER
49006-1164
$14.10
92015
NUT,CABLE ADJUST LOCK
92015-1362
$4.82
92022
WASHER,THROTTLE VALVE
92022-1024
$6.61
92022A
WASHER,ADJUST SCREW
92022-1187
$6.22
92022B
WASHER,TOOTHED,30X42X1.6 (Cana
92022-1330
$9.11
92037
CLAMP,E-TYPE
16008-010
$9.21
92037A
CLAMP,TUBE
92037-072
$7.22
92037B
CLAMP,TUBE
92037-072
$7.22
92043
PIN,FLOAT
16032-003
$6.57
92055
RING-O,ADJUST SCREW
92055-1078
$6.27
92055A
RING-O,STARTER PLUNGER
92055-1252
$5.29
92055B
RING-O,32MM
92055-1256
$13.08
92059
TUBE,5.3X10.5X120
92059-1489
$17.72
92059A
TUBE,3X5X400
92059-1653
Unavailable
92059B
TUBE,5X8X270
92059-1491
$6.61
92063
MAIN JET,#A105R
92063-1042
$15.74
92063A
JET-MAIN NO 107.5R
92063-073
$15.74
92063B
JET-MAIN NO 112.5R
92063-075
$15.42
92063C
JET-MAIN NO 115R
92063-076
$15.42
92063D
MAIN JET,#110R
92063-1038
$16.50
92064
JET-PILOT,#22.5
92064-1114
Unavailable
92064A
JET-PILOT,#20
92064-1121
Unavailable
92066
PLUG,DRAIN
92066-1171
$15.74
92081
SPRING,STOP SCREW
92081-1153
$4.96
92081A
SPRING,PILOT AIR SCREW
92081-1690
$6.16
92081B
SPRING,THROTTLE VALVE
92081-1691
$14.10
92081C
SPRING,STARTER PLUNGER
92081-1705
Unavailable
220
SCREW-PAN-CROS,3X6
220B0306
$0.63
220A
SCREW-PAN-CROS, 6X20
220C0620
$1.47
223
SCREW-PAN-WS-CROS
223B0416
$0.67
