1986 Kawasaki KLT110 Seat Diagram

← All diagrams

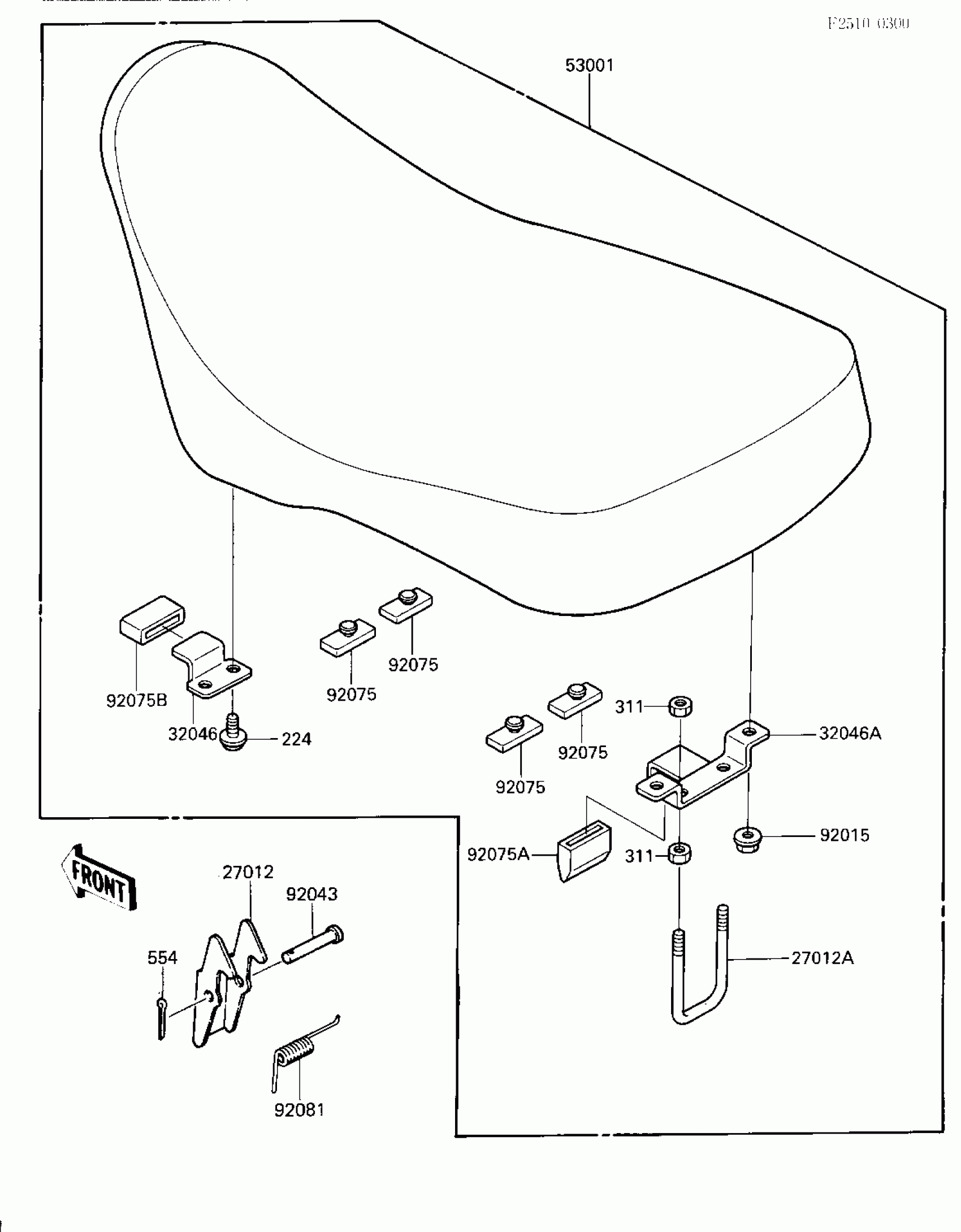

Find the part on the Seat diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLT110 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27012

HOOK,SEAT

27012-4009

1
Out of stock

27012A

HOOK,SEAT

27012-4010

1
Out of stock

32046

BRACKET-SEAT,FR

32046-4018

1
Out of stock

32046A

BRACKET,SEAT,RR

32046-4025

1
Out of stock

53001

SEAT-ASSY

53001-1429

1

$167.05

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92043

1

$4.61

In stock

92075

DAMPER

92075-1054

1
Out of stock

92075A

DAMPER,SEAT

92075-219

1
Out of stock

92075B

DAMPER,SEAT

92075-4039

1
Out of stock

92081

SPRING

92081-4020

1
Out of stock

224

SCREW,6X14

92009-1333

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock
