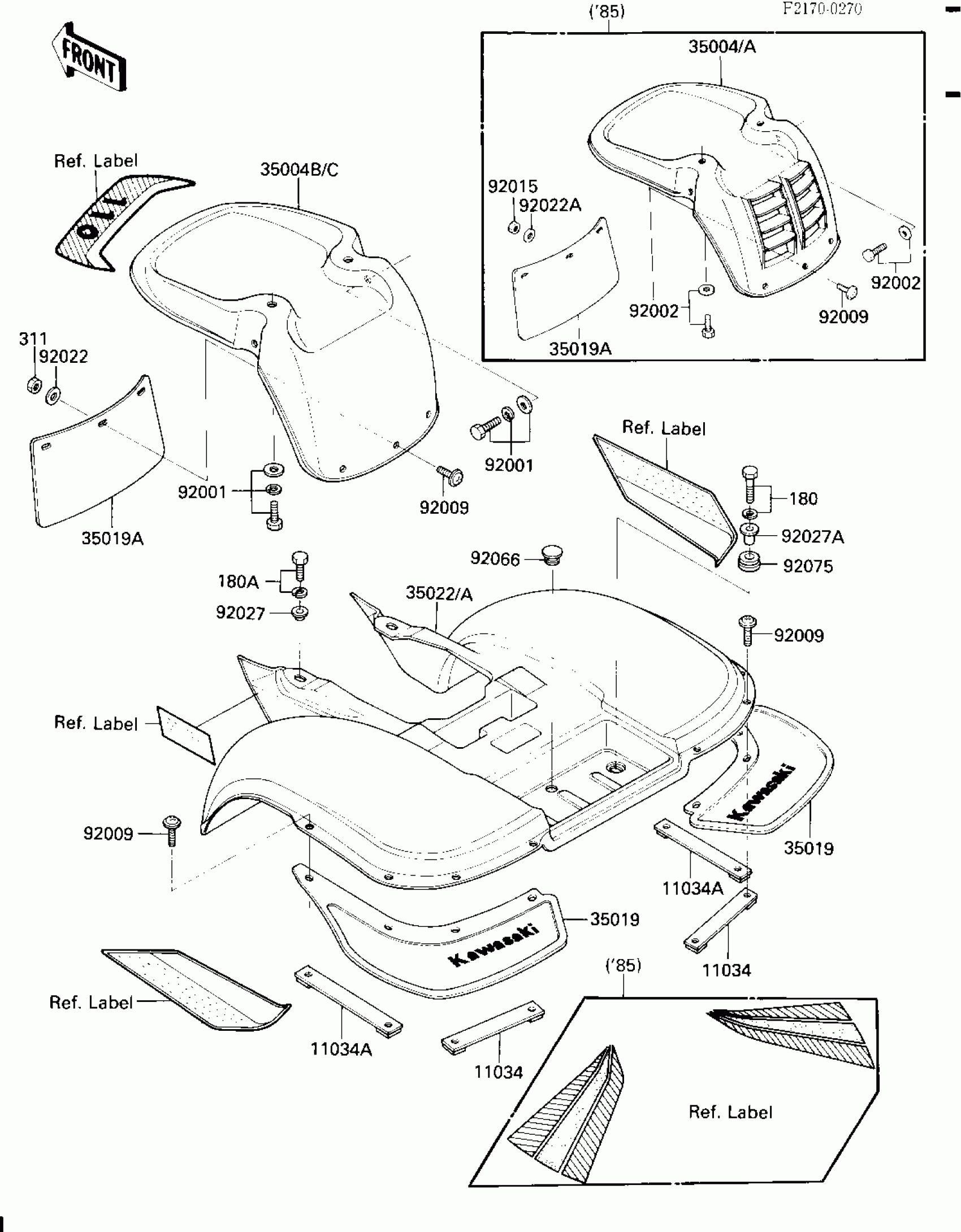

Kawasaki KLT110 FENDERS (KLT110-A1/A2) Diagram

Description

Price

11034

BRACKET,FLAP

11034-4062

Unavailable

11034A

BRACKET,FLAP

11034-4063

Unavailable

35004B

FENDER-FR,BLACK

35004-4006-6D

$15.85

35004C

FENDER-FR,RED

35004-4005-8S

Unavailable

35019

FLAP,RR FENDER

35019-4005

Unavailable

35019A

FLAP,FR FENDER

35019-4008

Unavailable

35022

FENDER-RR,BLACK

35022-4004-6D

$101.70

35022A

FENDER-RR,RED

35022-4004-8S

Unavailable

92001

BOLT,W/SP,6X18

92001-1764

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$1.81

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR

92027-122

$6.56

92027A

COLLAR

92027-1767

$4.18

92066

PLUG,11X3.2

92074-038

$7.14

92075

DAMPER RUBBER

92075-112

$3.43

180

BOLT-UPSET-WS

180C0622

Unavailable

180A

BOLT-UPSET-WS

180D0614

Unavailable

311

NUT 6MM

311B0600

Unavailable
