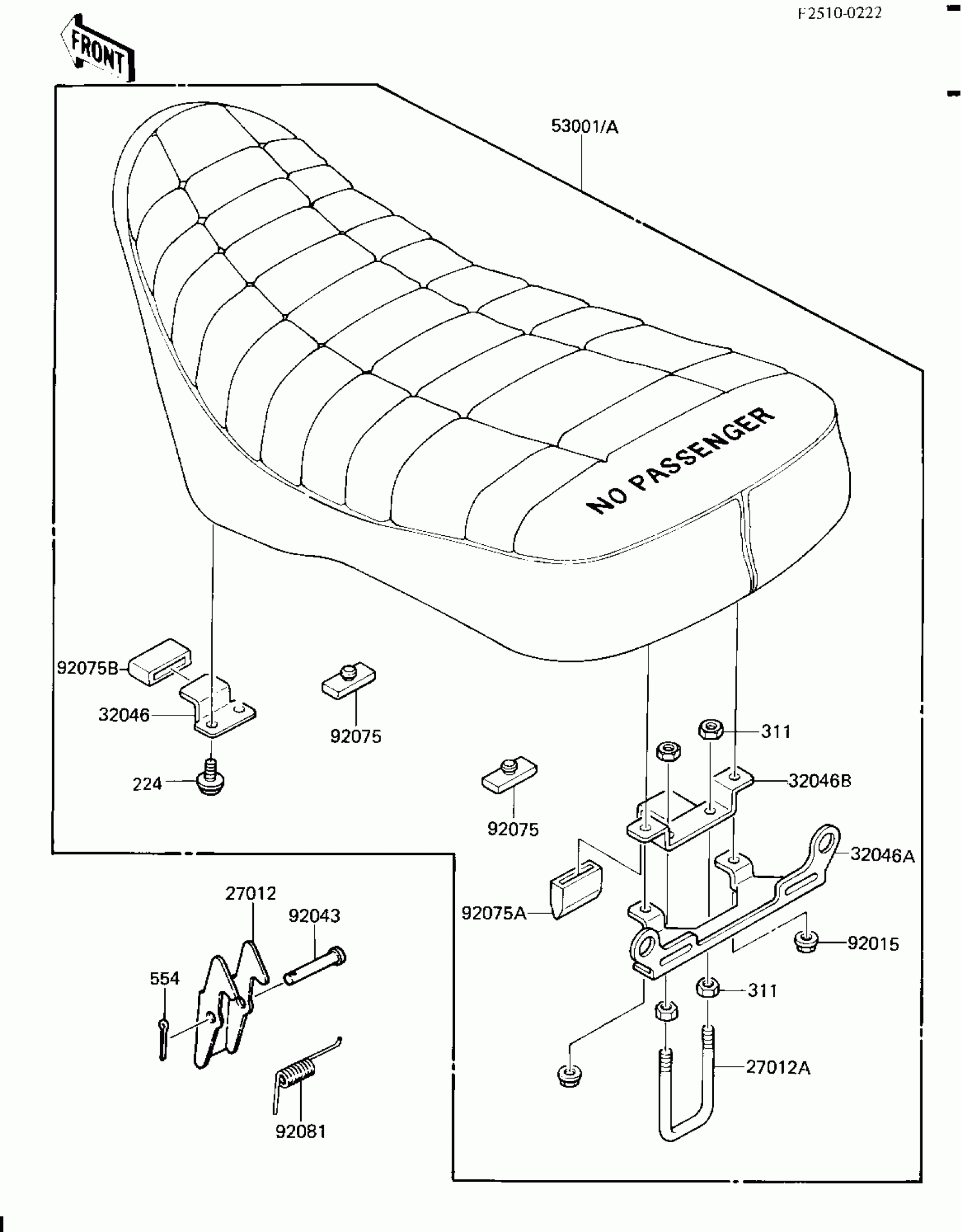

Kawasaki KLT110 SEAT (KLT110-A1/A2) Diagram

Description

Price

27012

HOOK,SEAT

27012-4009

$10.12

27012A

HOOK,SEAT

27012-4010

$8.28

32046

BRACKET-SEAT,FR

32046-4018

Unavailable

32046A

BRACKET-SEAT,TIE DOWN

32046-4019

$8.28

32046B

BRACKET,SEAT,RR

32046-4025

$8.28

53001A

SEAT-ASSY,WHITE LOGO

53001-4010

$163.84

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92043

PIN, DUAL SEAT PIVOT

53011-006

$5.24

92075

DAMPER

92075-1054

$5.00

92075A

DAMPER,SEAT

92075-219

Unavailable

92075B

DAMPER,SEAT

92075-4039

Unavailable

92081

SPRING

92081-4020

Unavailable

224

SCREW,6X14

92009-1333

Unavailable

311

NUT 6MM

311B0600

$0.93

554

PIN,SNAP

554A0600

$0.93
