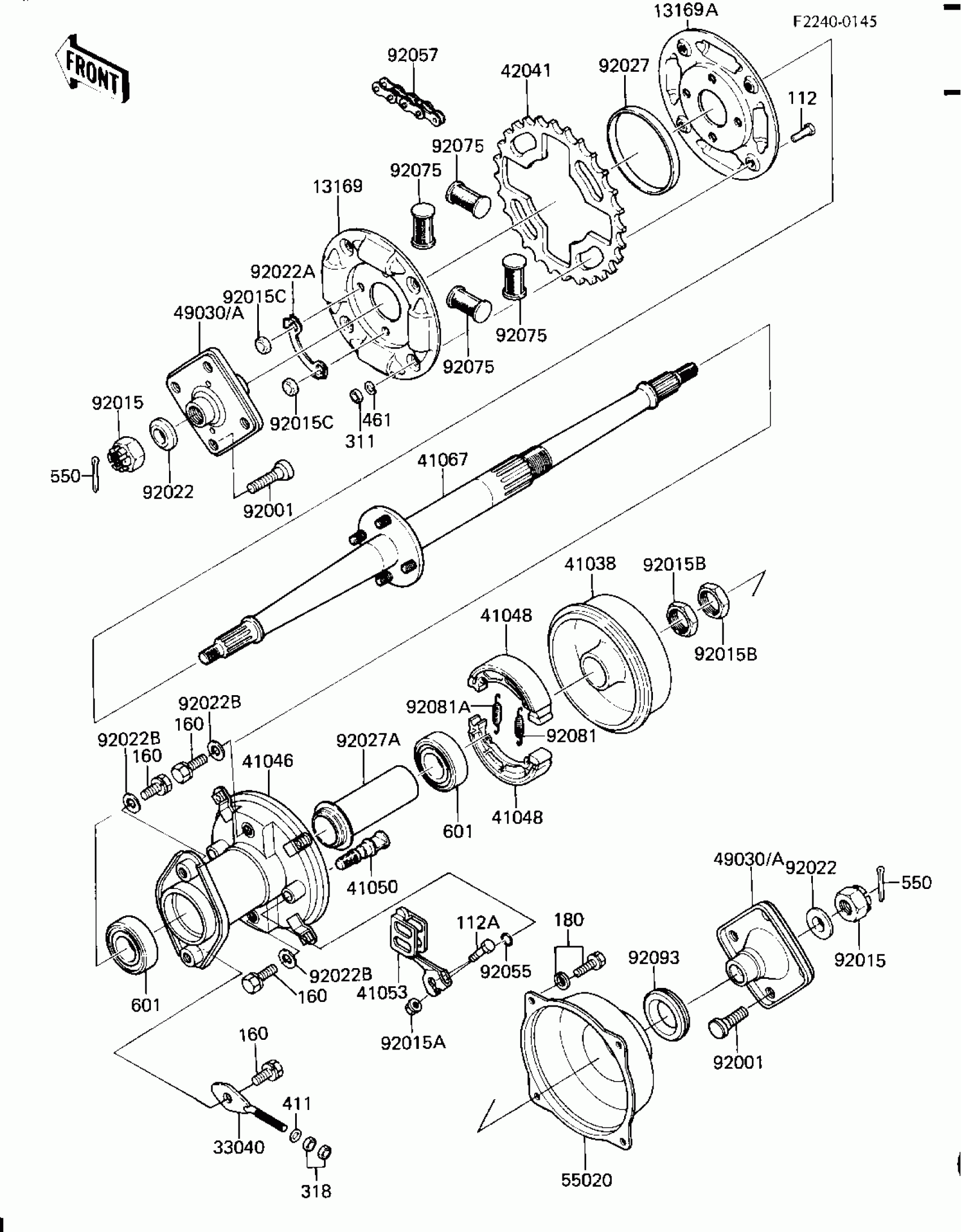

Kawasaki KLT110 REAR HUB/AXLE/BRAKE/CHAIN (KLT110-A1/A2) Diagram
#
13169
PLATE,RR SPROCKETT
13169-1754
Unavailable
13169A
PLATE-SPROCKET GUIDE
13169-4021
Unavailable
33040
ADJUSTER-CHAIN
33040-4006
Unavailable
41038
DRUM
41038-4010
$309.73
41046
HOUSING,BEARING
41046-4006
$80.87
41048
SHOE-BRAKE,RR
41048-1025
$38.07
41050
CAM SHAFT,REAR BRAKE
42026-026
Unavailable
41053
LEVER-BRAKE CAM
41053-4004
$39.46
41067
AXLE-ASSY
41067-4011
$402.81
42041
SPROCKET-HUB
42041-4006
Unavailable
49030A
HUB,RR
49030-4022-8T
$20.73
55020
GUARD,RR-BRAKE-DRUM
55020-4036
$16.88
92001
BOLT,LUG
92001-4006
Unavailable
92015
NUT,CASTLE,14MM
42045-020
$9.91
92015A
NUT,FLANGED,6MM
92015-1078
Unavailable
92015B
NUT,LOCK,32MM
92015-1493
Unavailable
92015C
NUT,10MM
92015-1429
$6.88
92022
WASHER
92022-1229
$11.50
92022A
WASHER,LOCK
92022-4025
$2.87
92022B
WASHER,12.5X28X4.5
92022-4037
Unavailable
92027
COLLAR,102X109X9
92027-1731
$38.00
92027A
COLLAR
92027-4025
$17.26
92055
RING-O,BRAKE CAM
92055-004
$4.80
92057
DR CHAIN,EK428SH 100L
92057-4010
$315.31
92075
DAMPER
92075-4034
$25.01
92081
SPRING,BRAKE SHOE
92081-1550
$9.49
92081A
SPRING,BRAKE SHOE
92081-1766
$8.03
92093
SEAL
92093-4008
$18.25
112
BOLT-UPSET,6X12
112G0612
$1.45
112A
BOLT-UPSET
112H0640
$3.90
160
BOLT-FINE-WS
160H1225
$5.09
180
BOLT-UPSET-WS
180D0612
$4.01
311
NUT 6MM
311B0600
$0.93
318
NUT-HEX-SMALL,8MM
318G0800
Unavailable
411
WASHER PLAIN 8MM
411B0800
$0.93
461
WASHER SPRING 6MM
461F0600
$0.69
550
PIN,COTTER
550D3230
$2.33
601
BEARING-BALL,#6007UU
601A6007UU
$42.10
