1986 Kawasaki KLT110 Ignition/generator Diagram

← All diagrams

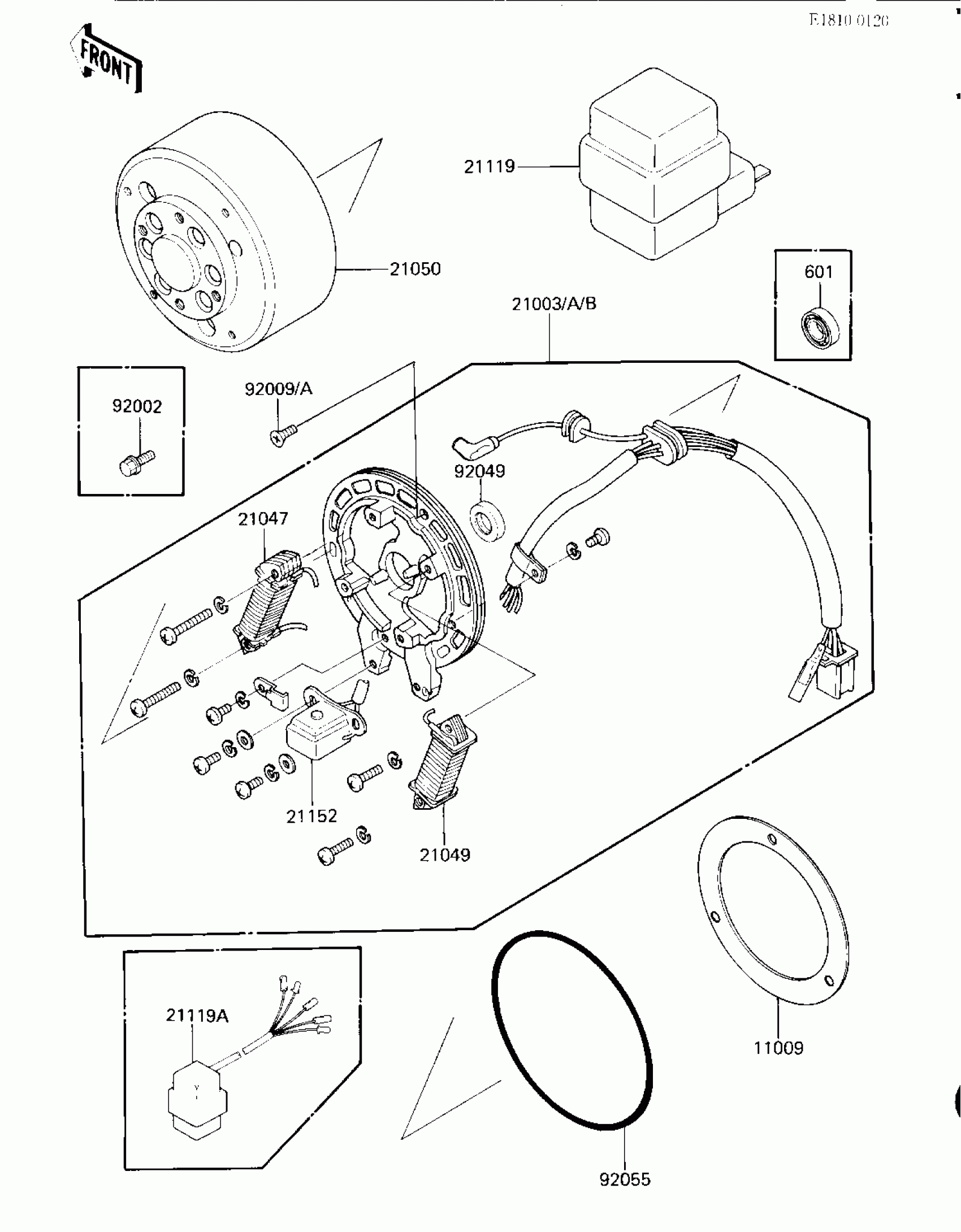

Find the part on the Ignition/generator diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLT110 Ignition/generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003A

STATOR

21003-1103

1
Out of stock

92002

BOLT,5X18

92002-1414

1
Out of stock

601

BEARING-BALL,#6003

601A6003

1
Out of stock
