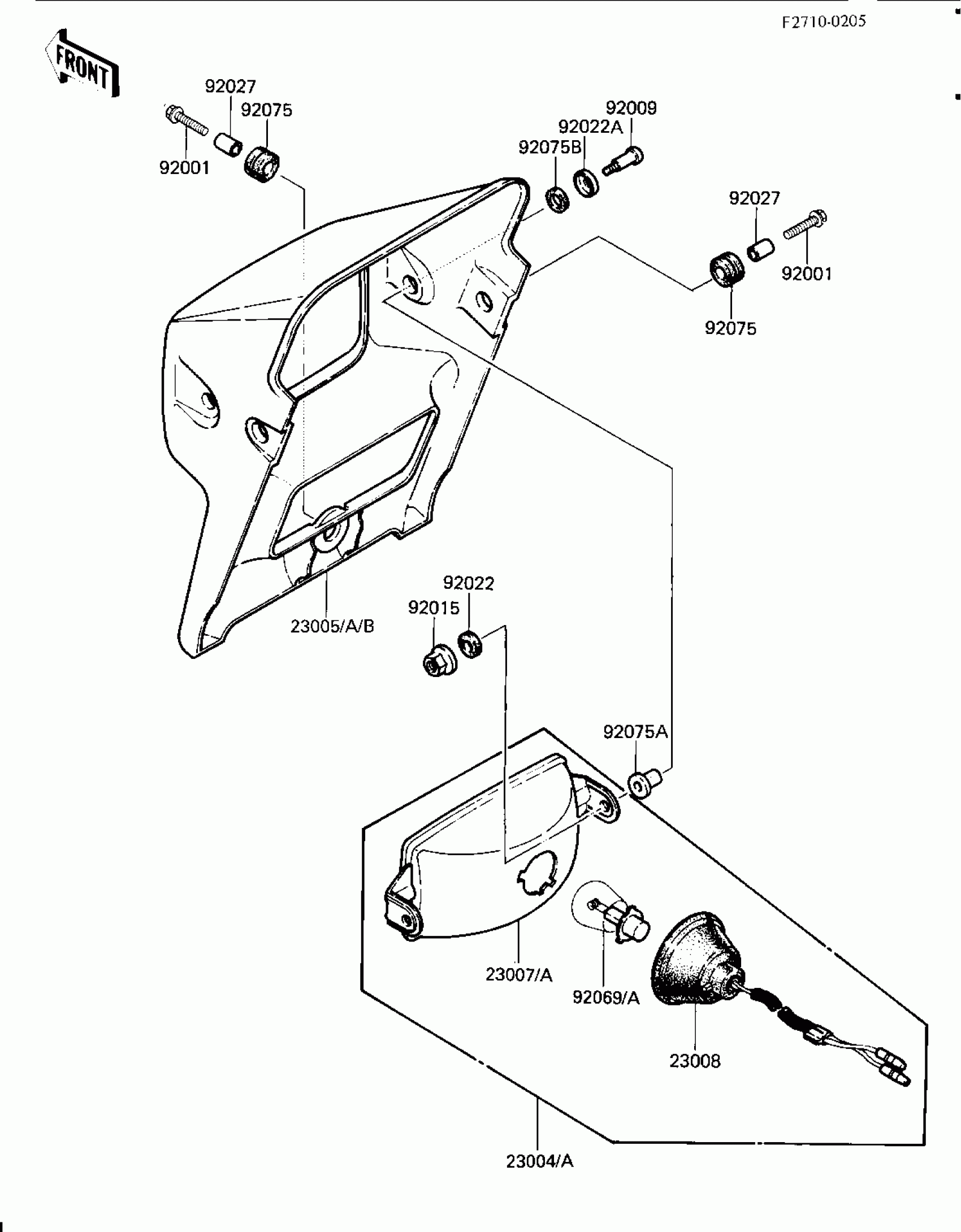

Kawasaki KLT110 HEADLIGHT Diagram

Description

Price

23004

LAMP-HEAD

23004-1175

$204.65

23005

BODY-COMP-HEAD LAMP,B

23005-4006-6D

Unavailable

23005A

BODY-HEAD LAMP,F.RED

23005-4006-6L

Unavailable

23007

LENS-COMP

23007-1120

Unavailable

23008

SOCKET H.L.

23008-4004

$56.57

92001

BOLT,6X25

92001-1852

$3.35

92009

SCREW,5MM

92009-1343

$2.41

92015

NUT,5MM

23020-023

Unavailable

92022

WASHER,PLAIN,5MM

23021-012

Unavailable

92022A

WASHER,HEAD LAMP

92022-1597

$2.78

92027

COLLAR,6.8X10X11.5

92027-1210

$7.83

92069A

BULB,12V 45/45W

92069-1061

$12.66

92075

DAMPER

92075-1057

$3.74

92075A

DAMPER,HEAD LAMP

92075-4009

Unavailable

92075B

DAMPER,HEAD LAMP

92075-4010

Unavailable
