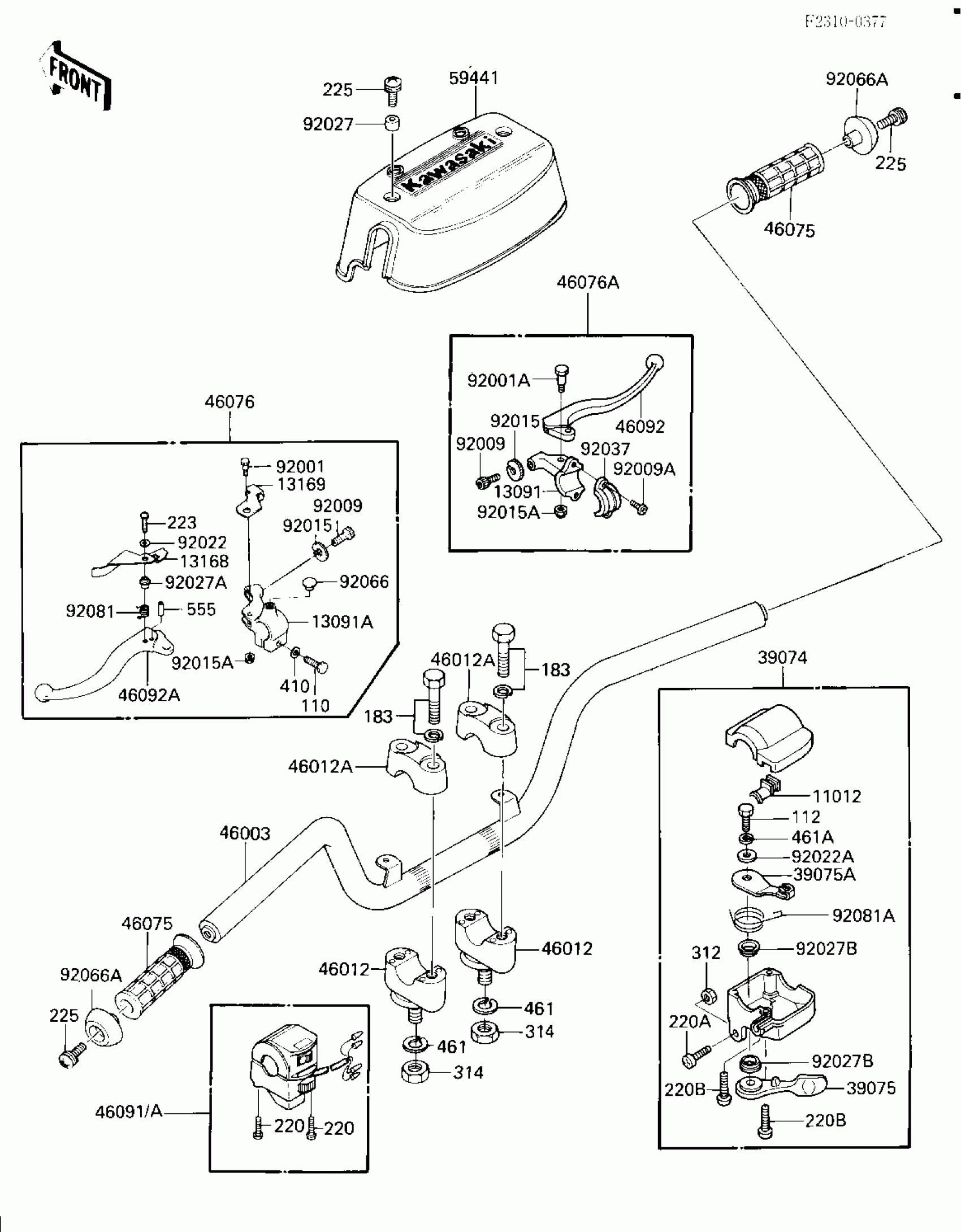

Kawasaki KLT110 HANDLEBAR (KLT110-A3) Diagram
#
11012
CAP
11012-1425
Unavailable
13091
HOLDER,RH
13091-1418
Unavailable
13091A
HOLDER,F.BLACK
46094-011-21
Unavailable
13168
LEVER,LOCK
13168-1224
Unavailable
13169
PLATE,LOCK
13169-1398
Unavailable
39074
LEVER-ASSY-THROTTLE
39074-1052
$79.09
39075
LEVER-THROTTLE
39075-1053
$33.25
39075A
LEVER-THROTTLE,ARM
39075-1054
$11.51
46003
HANDLE
46003-1209
$32.76
46012
HOLDER,HANDLEBAR,BUFF
46012-002-80
$29.86
46012A
HOLDER-HANDLE,UPP
46012-004
Unavailable
46075
GRIP
46075-4003
$25.83
46076
LEVER-ASSY-GRIP,CLUTC
46076-1115
$43.65
46076A
LEVER-ASSY-GRIP,RH
46076-1134
Unavailable
46091
HOUSING-ASSY-CONTROL,
46091-1392
$152.42
46091A
HOUSING-ASSY-CONTROL,
46091-1392
$152.42
46092
LEVER-GRIP,FRONT BRAKE
46092-1014
Unavailable
46092A
LEVER-GRIP
46092-1107
Unavailable
59441
COVER-HANDLEBAR
59441-4001
$26.89
92001
BOLT,5MM
92007-039
$6.18
92001A
BOLT,5X22
92007-046
$7.62
92009
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
92009A
SCREW,5X18
92009-1367
$4.60
92015
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
92015A
NUT,LOCK,5MM
92019-014
$4.50
92022
WASHER,4X12X1
92022-1245
$2.52
92022A
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
92027
COLLAR,6.8X10X8.5
92027-129
$5.00
92027A
COLLAR,RETURN SPRING
92027-1336
$13.68
92027B
COLLAR
92027-1982
$3.56
92037
CLAMP,LEVER HOLDER
92037-1621
$27.29
92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
$4.65
92066A
PLUG,HANDLE
92066-1191
Unavailable
92081
SPRING,LOCK RETURN
92081-1358
$5.46
92081A
SPRING
92081-1685
$79.09
110
BOLT HEX HEAD 6X25
110N0625
$5.46
112
BOLT-UPSET
112D0614
$0.49
183
BOLT-UPSET-WS-SMALL
183B0835
Unavailable
220
SCREW-PAN-CROS
220B0535
$3.70
220A
SCREW-PAN-CROS,5X25
220C0525
$3.52
220B
SCREW-PAN-CROS,5X30
220C0530
Unavailable
223
SCREW-PAN-WS-CROS
223B0420
$0.25
225
SCREW-PAN-WSP-CROS,6X20
225C0620
$3.84
312
NUT-HEX
312C0500
Unavailable
314
NUT-HEX-FINE,10MM
314B1000
$0.67
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
461
WASHER SPRING 10MM
461F1000
$0.67
461A
WASHER SPRING 6MM
461F0600
$0.69
555
PIN-SPRING,3X16
555A0316
$1.14
