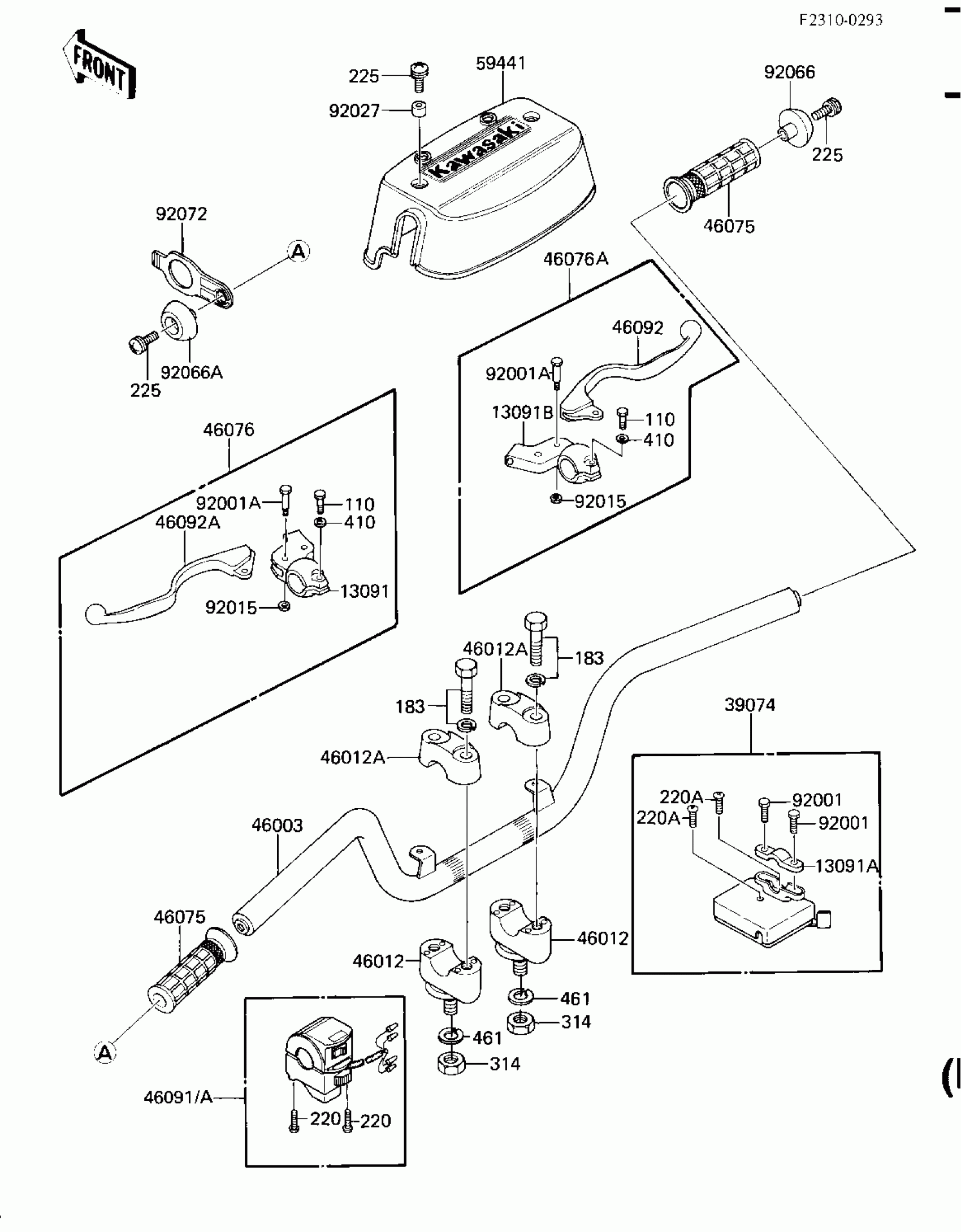

Kawasaki KLT110 HANDLEBAR (KLT110-A1) Diagram

#

Description
Price

13091

HOLDER

13091-4015

Unavailable

13091A

HOLDER,THROTTLE LEVER

13091-4017

Unavailable

13091B

HOLDER,FRONT BRAKE LE

13091-4018

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-4002

$48.04

46003

HANDLEBAR,BLACK

46003-4006

$32.44

46012

HOLDER,HANDLEBAR,BUFF

46012-002-80

$29.86

46012A

HOLDER-HANDLE,UPP

46012-004

Unavailable

46075

GRIP

46075-4003

$25.83

46076

LEVER-ASSY-GRIP

46076-4001

$24.64

46076A

LEVER-ASSY-GRIP

46076-4003

$22.47

46091

HOUSING-ASSY-CONTROL,

46091-1392

$152.42

46091A

HOUSING-ASSY-CONTROL,

46091-1392

$152.42

46092

LEVER-GRIP,FRONT BRAKE

46092-1014

Unavailable

46092A

LEVER-GRIP,CLUTCH

46092-1015

Unavailable

59441

COVER-HANDLEBAR

59441-4001

$26.89

92001

BOLT

92001-4024

$3.22

92001A

BOLT,5X22

92007-046

$7.62

92015

NUT,LOCK,5MM

92019-014

$4.50

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92066

PLUG,HANDLE

92066-1191

Unavailable

92066A

PLUG,BRAKE LEVER

92066-4005

$2.18

92072

BAND-BRAKE LEVER

92072-4007

$1.52

110

BOLT HEX HEAD 6X25

110N0625

$5.46

183

BOLT-UPSET-WS-SMALL

183B0835

Unavailable

220

SCREW-PAN-CROS

220B0535

$3.70

220A

SCREW-PAN-CROS,6X10,BLACK

220C0610

$1.81

225

SCREW-PAN-WSP-CROS,6X20

225C0620

$3.84

314

NUT-HEX-FINE,10MM

314B1000

$0.67

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

461

WASHER SPRING 10MM

461F1000

$0.67
