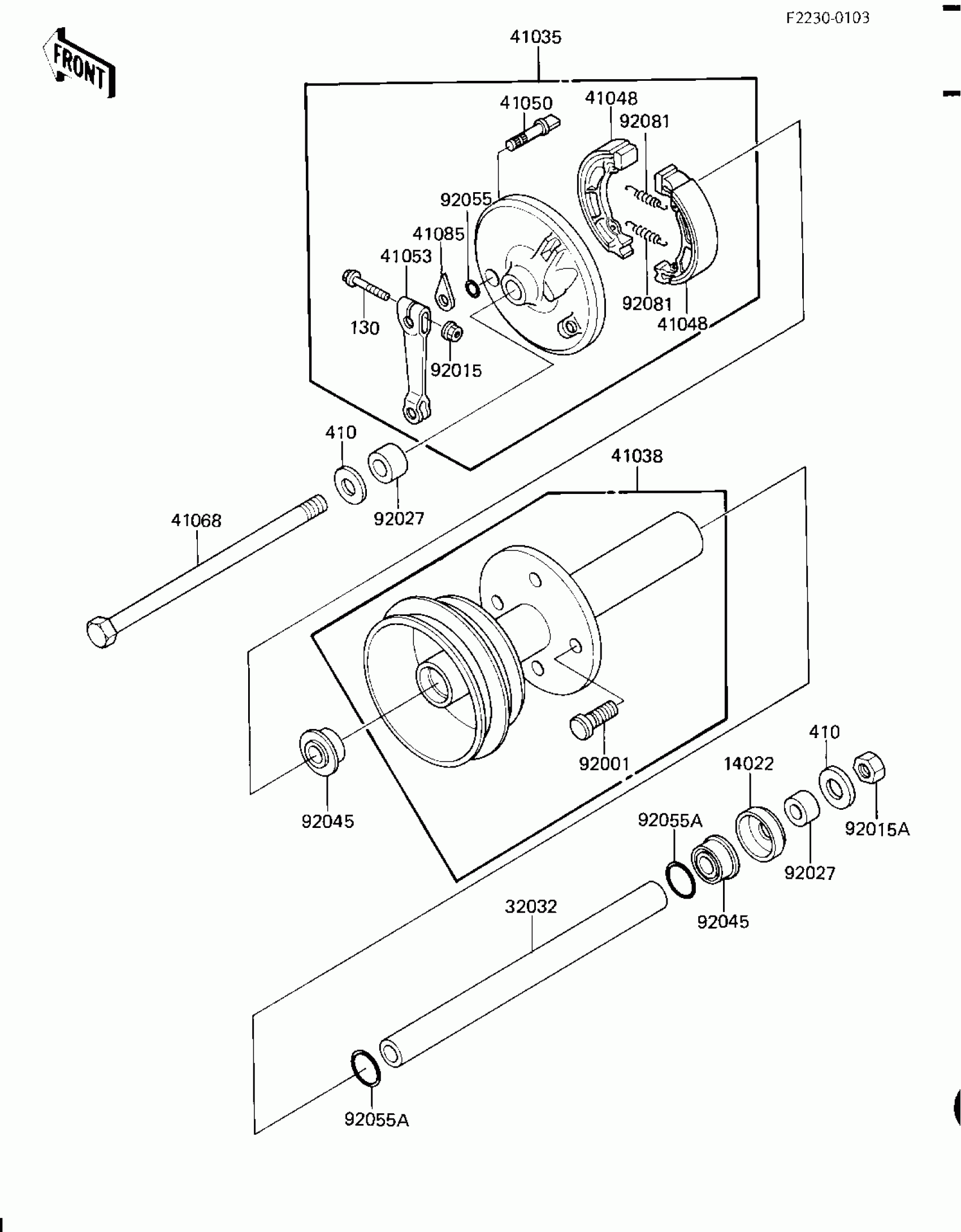

Kawasaki KLT110 FRONT HUB/BRAKE (KLT110-A1) Diagram

Description

Price

14022

CAP-BEARING

14022-4003

Unavailable

32032

PIPE,SPACER

32032-4109

$9.69

41035

PANEL-ASSY-BRAKE,FR

41035-1164

$271.14

41038

DRUM ASSY,FRONT

41038-4013

$66.09

41048

SHOE-BRAKE

41048-1085

$22.53

41050

CAM-BRAKE

41050-018

$23.50

41053

LEVER-BRAKE CAM

41053-005

$15.47

41068

AXLE,FRONT

41068-4003

$75.32

41085

INDICATOR,BRAKE SHOE

41085-013

$14.51

92001

BOLT,LUG

92001-4006

Unavailable

92015

NUT,6MM

41072-007

$3.92

92015A

NUT,LOCK 14M/M

92015-1122

$7.34

92027

COLLAR

92027-4009

$3.63

92045

BEARING BALL HUB-ASSY

92045-4005

Unavailable

92055

RING-O,BRAKE CAM

92055-004

$4.80

92055A

"0" RING

92055-4001

$1.99

92081

SPRING,BRAKE SHOE

92081-1766

$8.03

130

BOLT,FLANGED,6X25

130G0625

$1.17

410

WASHER PLAIN 16MM

410B1600

Unavailable
