Description

Price

11012

CAP,STEERING STEM

46098-012

Unavailable

32002

FRAME-COMP

32002-1868

Unavailable

32065

BRACKET-FENDER RR

32065-1193

$3.72

35011

STAY,REAR FENDER

35011-1282

$28.82

55020

GUARD

55020-4017

$35.30

55020A

GUARD,CHAIN-CASE

55020-4035

$40.43

92015

NUT,STEERING STEM

92015-4007

Unavailable

92022

WASHER,10.5X35X4,BLAC

92022-4028

Unavailable

92048

RACE,STEERING STEM BEARING

92047-014

$12.72

92048A

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

92048B

RACE,STEERING STEM BEARING

92048-009

$14.10

92075

DAMPER,9X24X14

92075-281

$6.22

113

BOLT-SMALL-FINE,12X25

113J1225

$3.81

130

BOLT-FLANGED,6X10

130C0610

$3.84

180

BOLT 6X12

180B0612

$4.01

184

BOLT-UPSET-WP-SMALL

184J0820

$5.33

187

BOLT-UPSET-WSP

187B0616

$1.17

600

BALL-STEEL,3/16

600A0600

$1.07

600A

BALL-STEEL,1/4

600A0800

$0.62

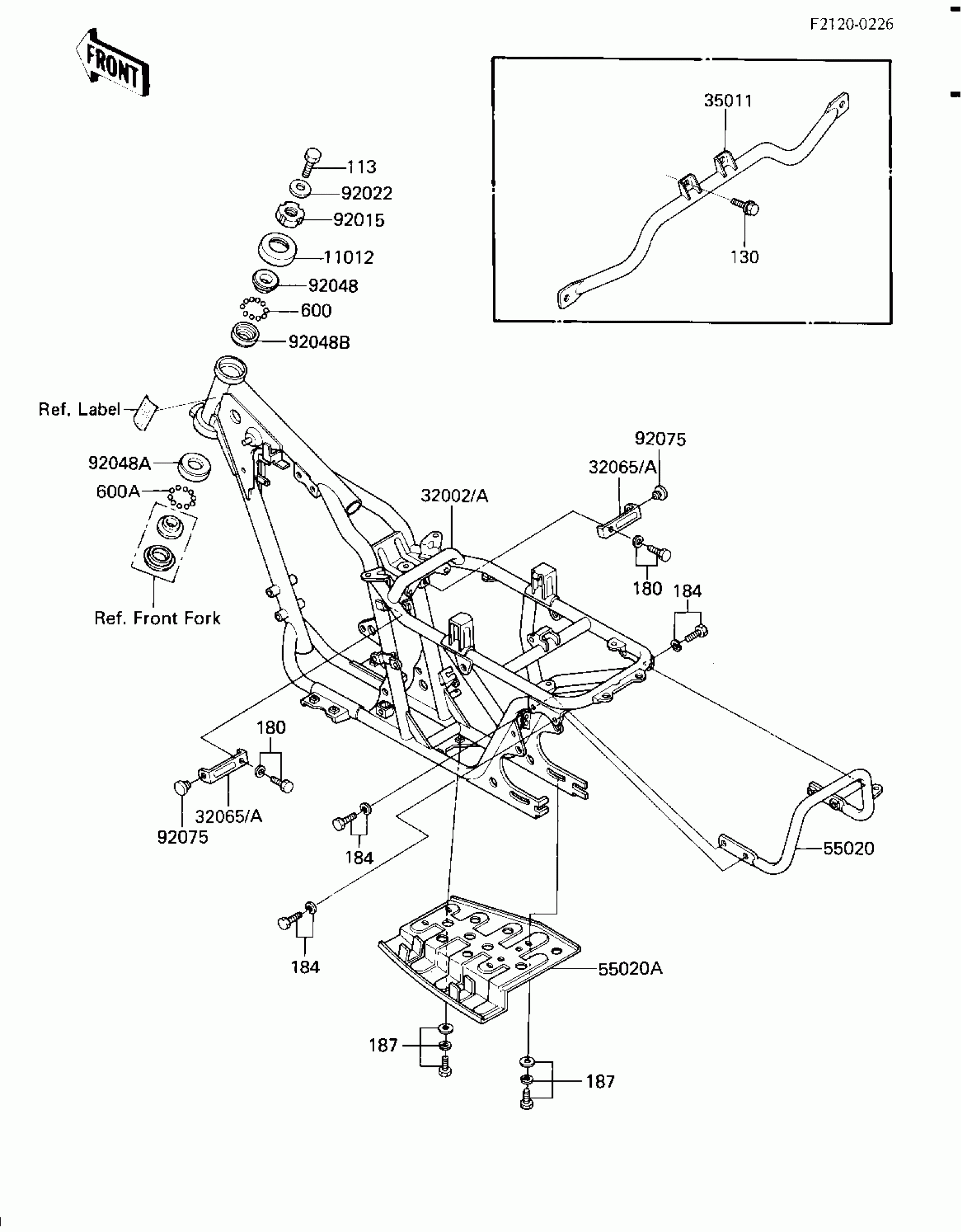

Kawasaki KLT110 FRAME Diagram

CAP,STEERING STEM

FRAME-COMP

BRACKET-FENDER RR

STAY,REAR FENDER

GUARD

GUARD,CHAIN-CASE

NUT,STEERING STEM

WASHER,10.5X35X4,BLAC

RACE,STEERING STEM BEARING

RACE,STEERING STEM BEARING,LWR

RACE,STEERING STEM BEARING

DAMPER,9X24X14

BOLT-SMALL-FINE,12X25

BOLT-FLANGED,6X10

BOLT 6X12

BOLT-UPSET-WP-SMALL

BOLT-UPSET-WSP

BALL-STEEL,3/16

BALL-STEEL,1/4
