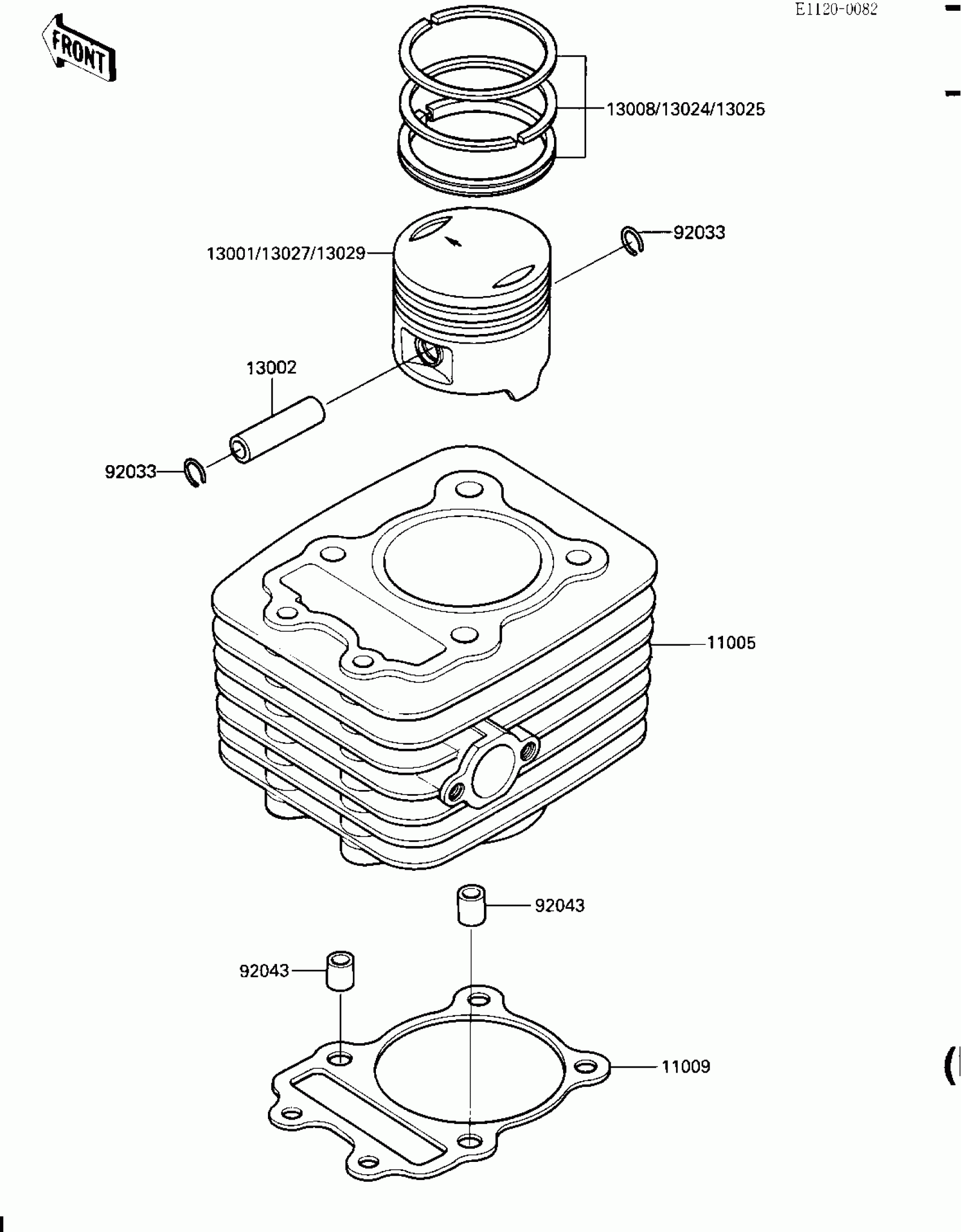

Kawasaki KLT110 CYLINDER/PISTON (KLT110-A3) Diagram

#

Description

Price

11005

CYLINDER-ENGINE

11005-1454

Unavailable

11009

GASKET,CYLINDER BASE

11009-1431

Unavailable

13001

PISTON-ENGINE,STD

13001-1223

Unavailable

13002

PIN-PISTON

13002-1061

$17.55

13008

RING-SET-PISTON,STD

13008-1062

Unavailable

13024

RING-SET-PISTON LL,O/S 1.00

13024-1011

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1011

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1057

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1060

Unavailable

92033

RING-SNAP

92033-1072

$3.89

92043

PIN,8.2X10X14

92043-1264

$0.64
