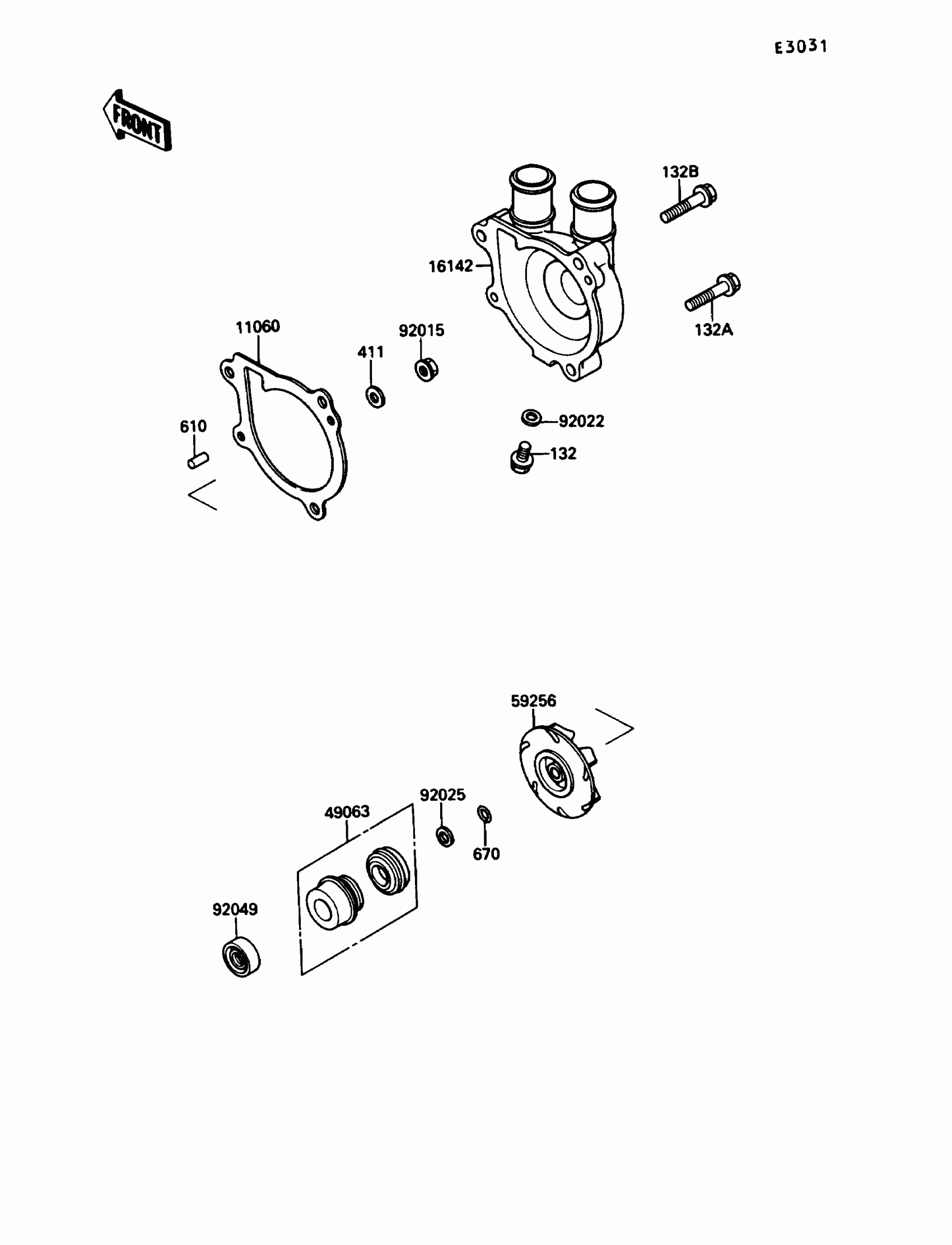

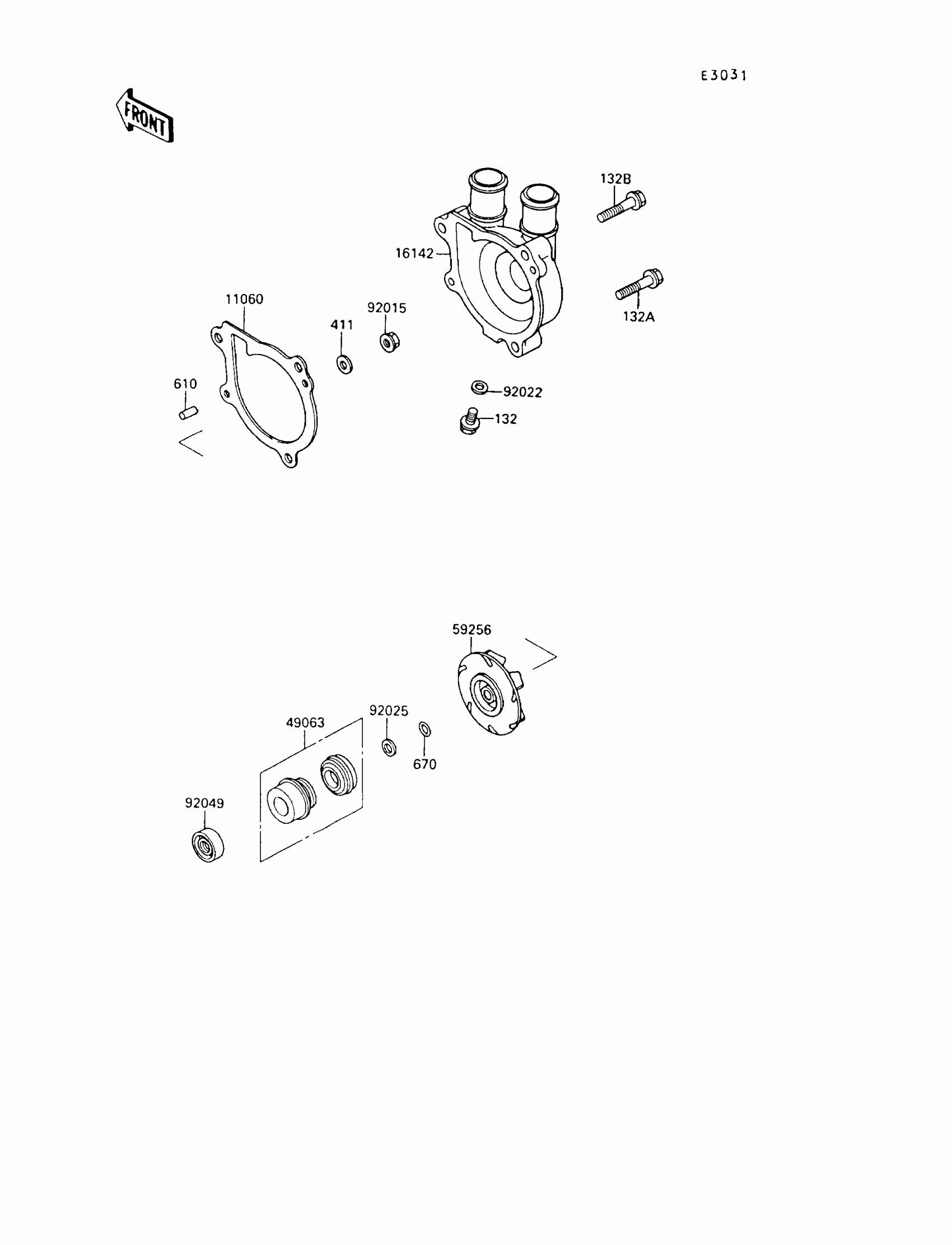

Kawasaki KLR650 Water Pump Diagram

Description

Price

11060

GASKET,WATER PUMP COVER

11060-1114

$8.03

16142

COVER-PUMP,WATER

16142-1057

$104.94

49063

SEAL-MECHANICAL

49063-1054

$16.68

59256

IMPELLER

59256-1055

$30.63

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.2X11X1

92022-304

$3.65

92025

SHIM,T=0.8

92025-1507

$3.21

92049

SEAL-OIL,SC10227

92049-1157

$9.28

132

BOLT-FLANGED-SMALL,6X8

132J0608

$3.41

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

132B

BOLT-FLANGED-SMALL,6X35

132J0635

$3.84

411

WASHER PLAIN

411F0600

$1.18

610

ROLLER,4X8

610A0408

$4.31

670

O RING,6MM

670B1506

$1.28
