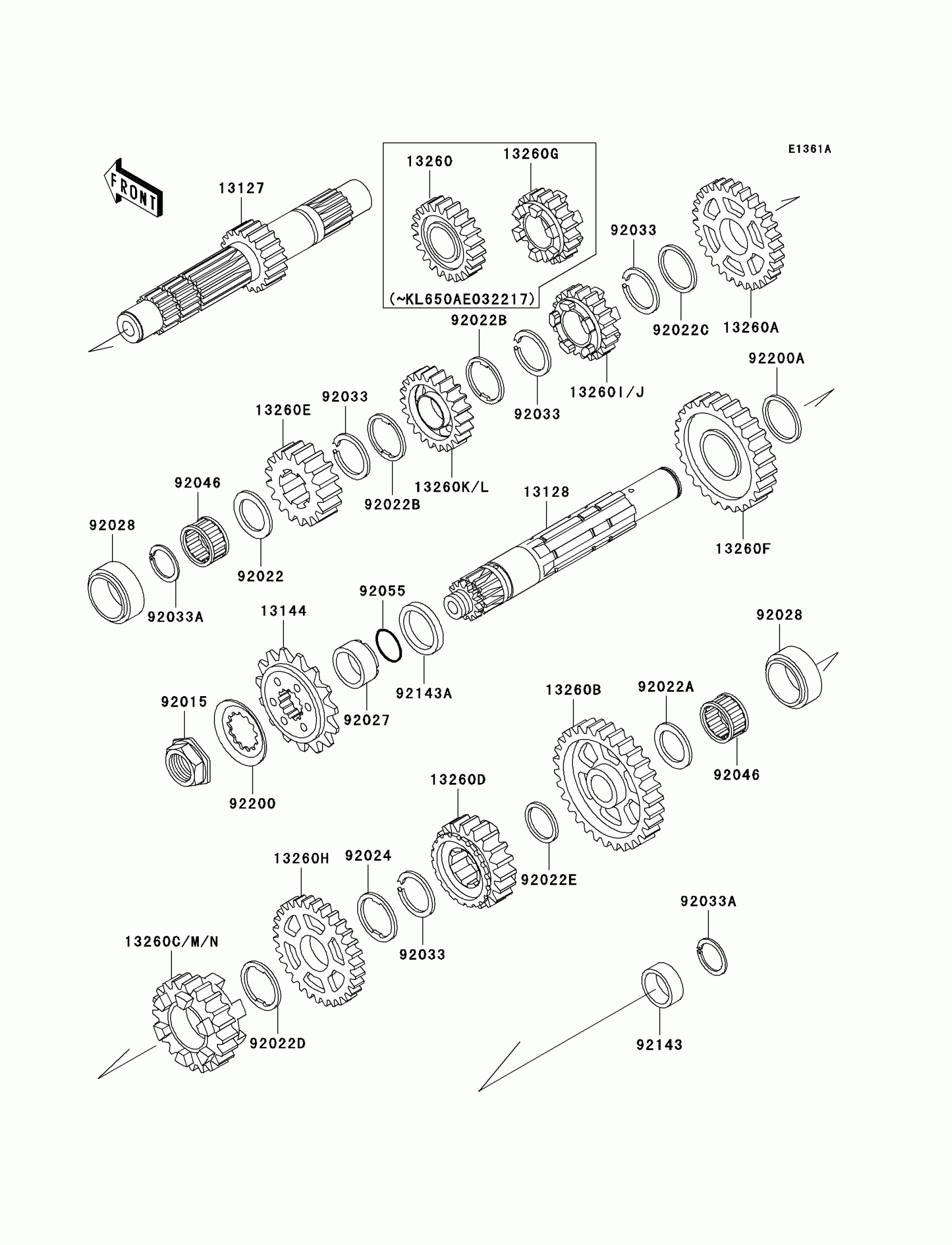

Kawasaki KLR650 Transmission(KL650AE032210-) Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT,15T
13127-1147
$234.29
13128
SHAFT-TRANSMISSION OUTPUT
13128-1203
Unavailable
13144
SPROCKET-OUTPUT,15T
13144-1253
$55.51
13260A
GEAR,INPUT TOP,24T
13260-1326
$130.80
13260B
GEAR,OUTPUT LOW,34T
13260-1327
$135.01
13260D
GEAR,OUTPUT TOP,19T
13260-1331
$129.59
13260E
GEAR,INPUT 2ND,18T
13260-1464
$88.46
13260F
GEAR,OUTPUT 2ND,26T
13260-1465
$133.24
13260H
GEAR,OUTPUT 3RD,25T
13260-1467
$133.24
13260I
GEAR,INPUT 3RD,22T
13260-1518
$130.80
13260K
GEAR,INPUT 4TH,22T
13260-1519
$123.43
13260M
GEAR,OUTPUT 4TH,21T
13260-1520
$137.37
92015
NUT,20MM
92015-1963
$14.90
92022
WASHER,20.5X30X1,STEEL
92022-112
$8.86
92022A
WASHER,20.3X29X0.5
92022-1479
$5.05
92022B
WASHER,TOOTHED,25.3X29.5X0.5
92022-1482
$4.69
92022C
WASHER,25.3X30X0.5
92022-159
$8.58
92022D
WASHER,25.3X32X0.5
92022-225
$5.52
92022E
WASHER,20.5X25.5X0.5
92022-252
$6.22
92024
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
92027
COLLAR,25X32X15.3
92027-1800
$28.72
92028
BUSHING,26X35X14
92028-131
$38.06
92033
RING-SNAP,24MM
92033-026
$8.79
92033A
RING-SNAP,18MM
92033-029
$9.82
92046
BEARING-NEEDLE,KT202614
92046-1170
$18.16
92055
RING-O,21.5X1.5
92055-1293
$5.00
92143
COLLAR,20X25X9.5
92143-1624
$10.56
92143A
COLLAR,25X32X3.0
92143-1721
$10.65
92200
WASHER
92200-1065
$6.63
92200A
WASHER,2ND GEAR
92200-1170
$4.31
