Description

Price

13107

SHAFT,IDLER

13107-1135

$18.57

13194

CLUTCH-ONEWAY

13194-1073

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1205

Unavailable

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-1108

$512.18

26011

WIRE-LEAD,STARTER MOTOR

26011-1397

$60.08

27010

SWITCH,STARTER

27010-1075

$45.86

39076

LIMITER,STARTER IDLE GEAR

39076-1056

$224.51

42034

COUPLING

42034-1094

$135.66

59051

GEAR-SPUR,20T & 37T

59051-1133

$115.66

92009

SCREW

92009-1369

$9.51

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,10.2X20X0.5

92022-1649

$4.31

92022A

WASHER,32.2X50X1.0

92022-1650

$7.62

92026

SPACER,32.15X39.7X2.8

92026-1295

$21.77

92046

BEARING-NEEDLE,K10X14X10

92046-1134

$15.95

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92071A

GROMMET,TERMINAL

92071-1130

$11.29

120

BOLT-SOCKET,8X18

120P0818

$2.62

130

BOLT,FLANGED,6X25

130G0625

$1.17

461

WASHER SPRING 5MM

461F0500

$0.69

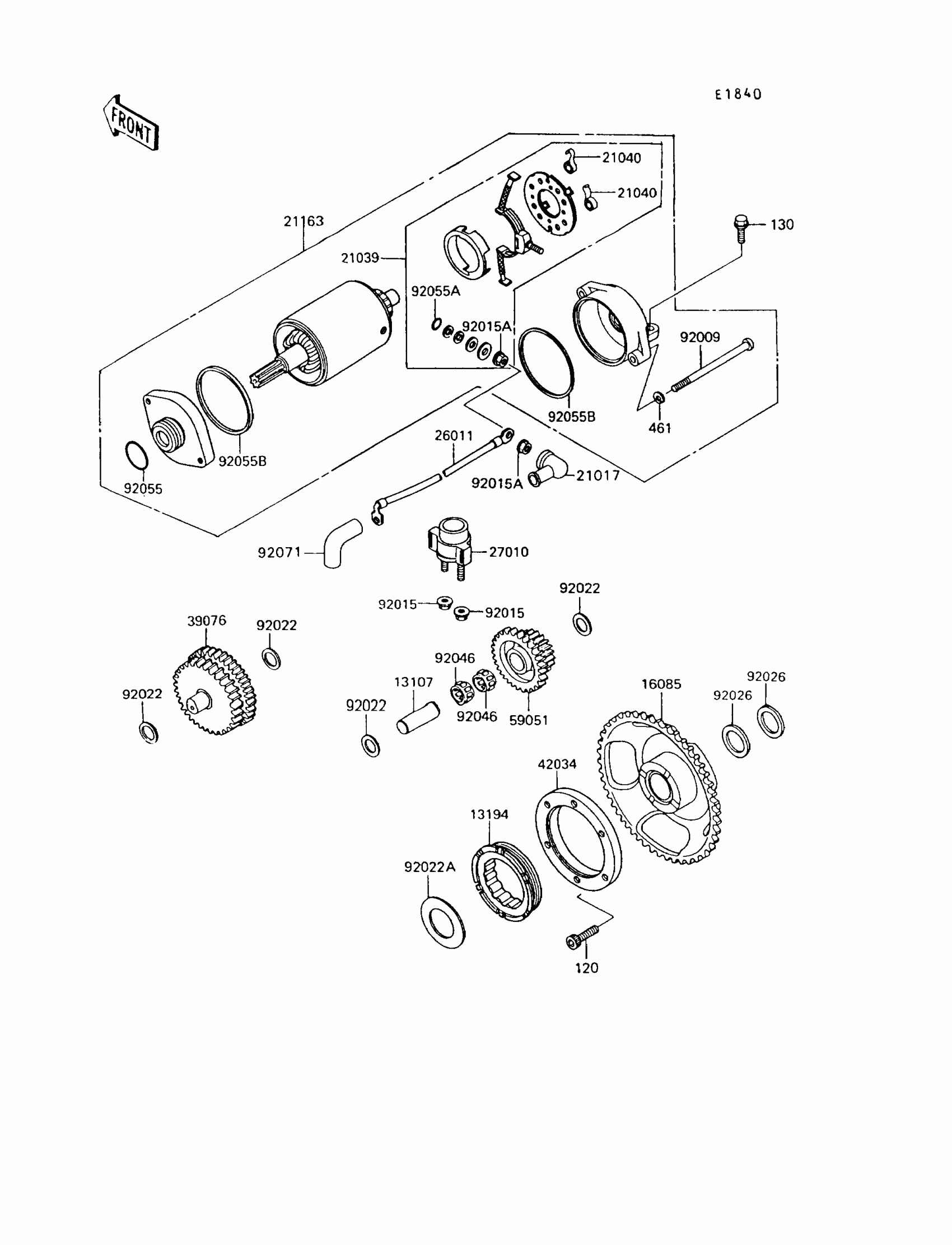

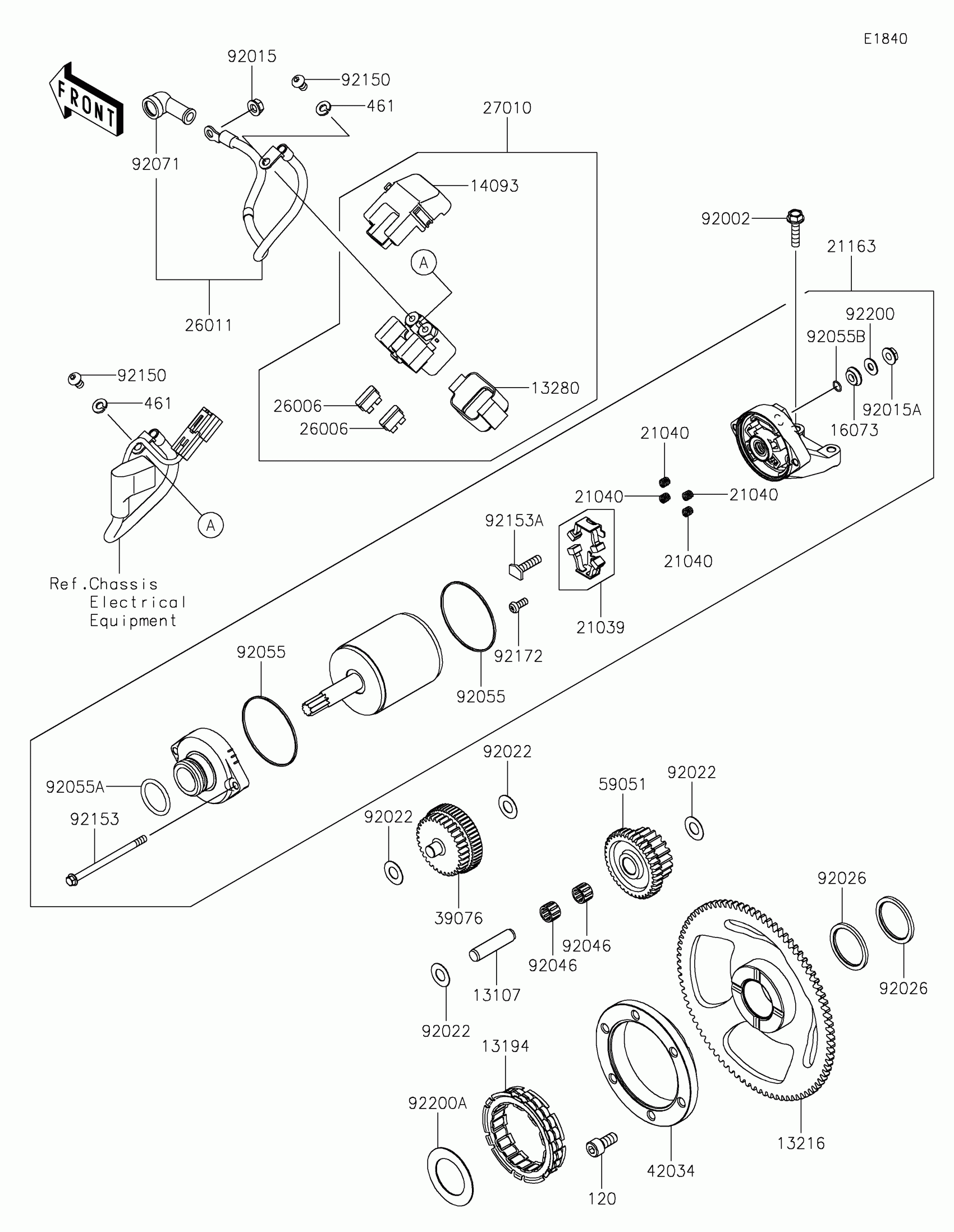

Kawasaki KLR650 Starter Motor Diagram

SHAFT,IDLER

CLUTCH-ONEWAY

GEAR,ONEWAY CLUTCH

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

WIRE-LEAD,STARTER MOTOR

SWITCH,STARTER

LIMITER,STARTER IDLE GEAR

COUPLING

GEAR-SPUR,20T & 37T

SCREW

NUT,FLANGED,6MM

NUT,STARTER MOTOR

WASHER,10.2X20X0.5

WASHER,32.2X50X1.0

SPACER,32.15X39.7X2.8

BEARING-NEEDLE,K10X14X10

RING-O

RING-O,4.5X2.0

RING-O,STARTER MOTOR

GROMMET,STARTER TERMINAL

GROMMET,TERMINAL

BOLT-SOCKET,8X18

BOLT,FLANGED,6X25

WASHER SPRING 5MM
