1995 Kawasaki KLR650 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

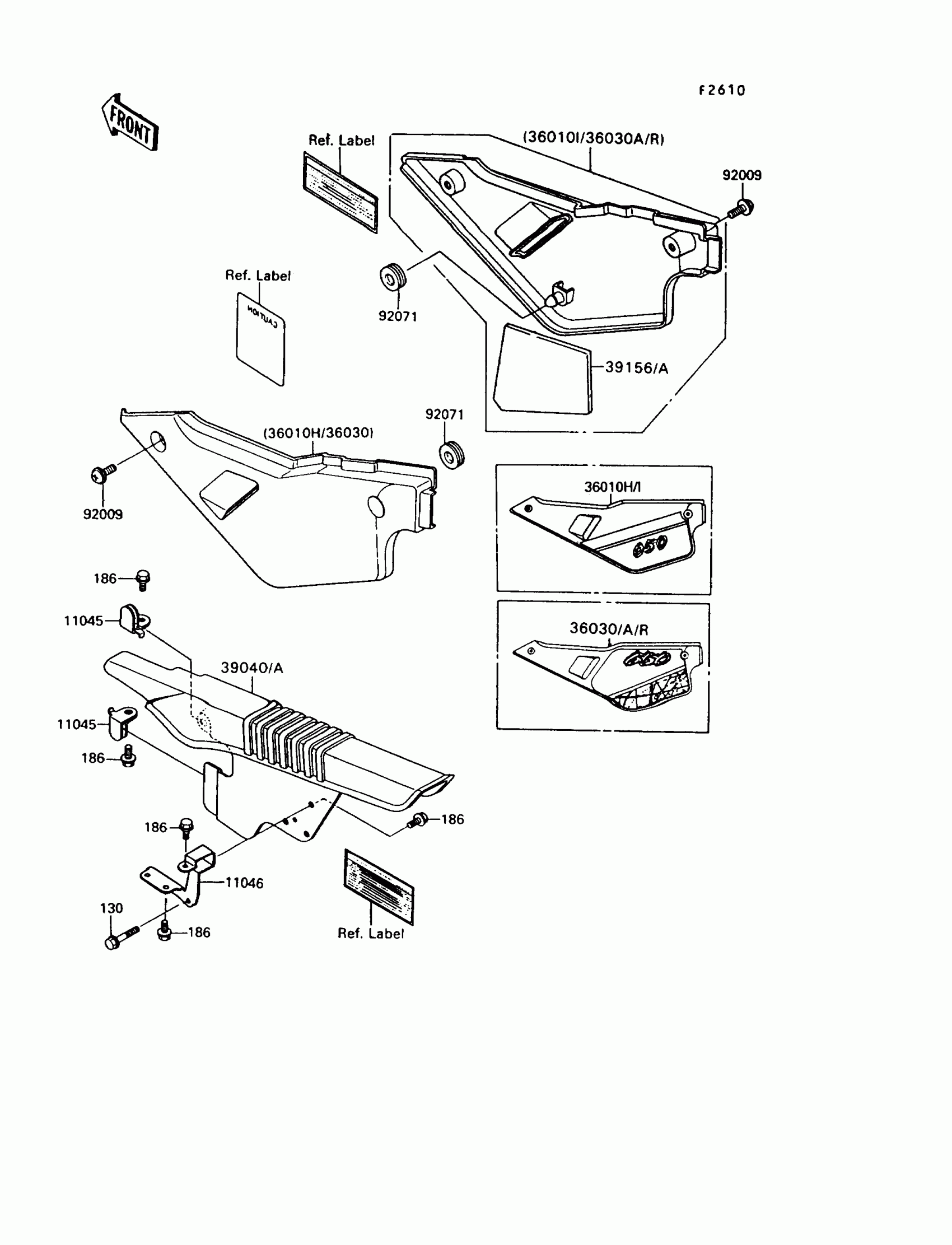

1995 Kawasaki KLR650 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

1

$9.92

In stock

11046

BRACKET,CHAIN CASE,RR

11046-1391

1
Out of stock

36030

COVER-SIDE,LH,P.WHITE

36030-5262-6F

1
Out of stock

36030R

COVER-SIDE,RH,P.WHITE

36030-5371-6F

1

$127.41

In stock

39040A

1

$100.93

In stock

39156A

PAD,SIDE COVER

39156-1426

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92071

GROMMET

92071-056

1

$3.39

In stock

130

BOLT-FLANGED,6X40

130H0640

1
Out of stock

186

BOLT-UPSET-WP,6X12

186C0612

1
Out of stock
