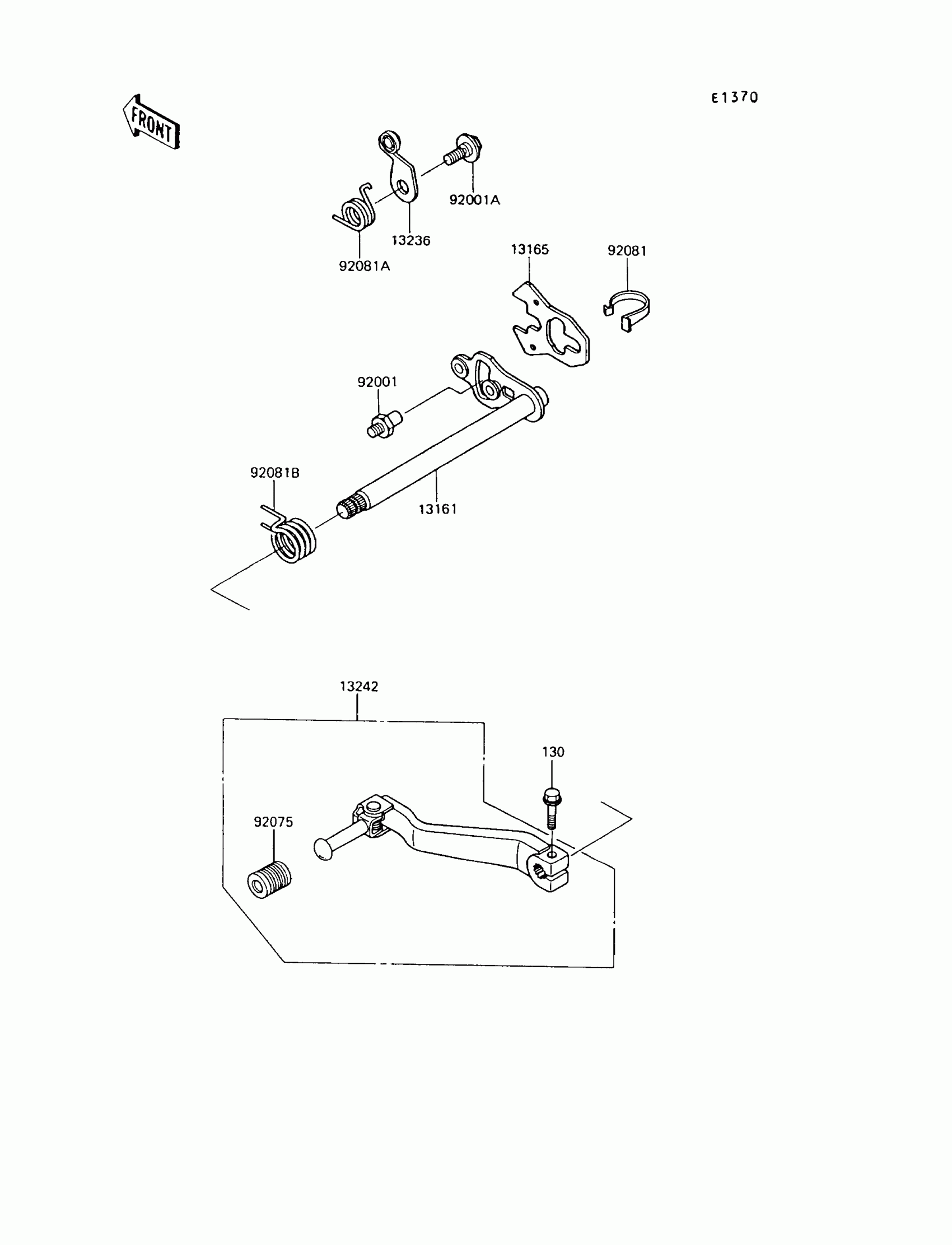

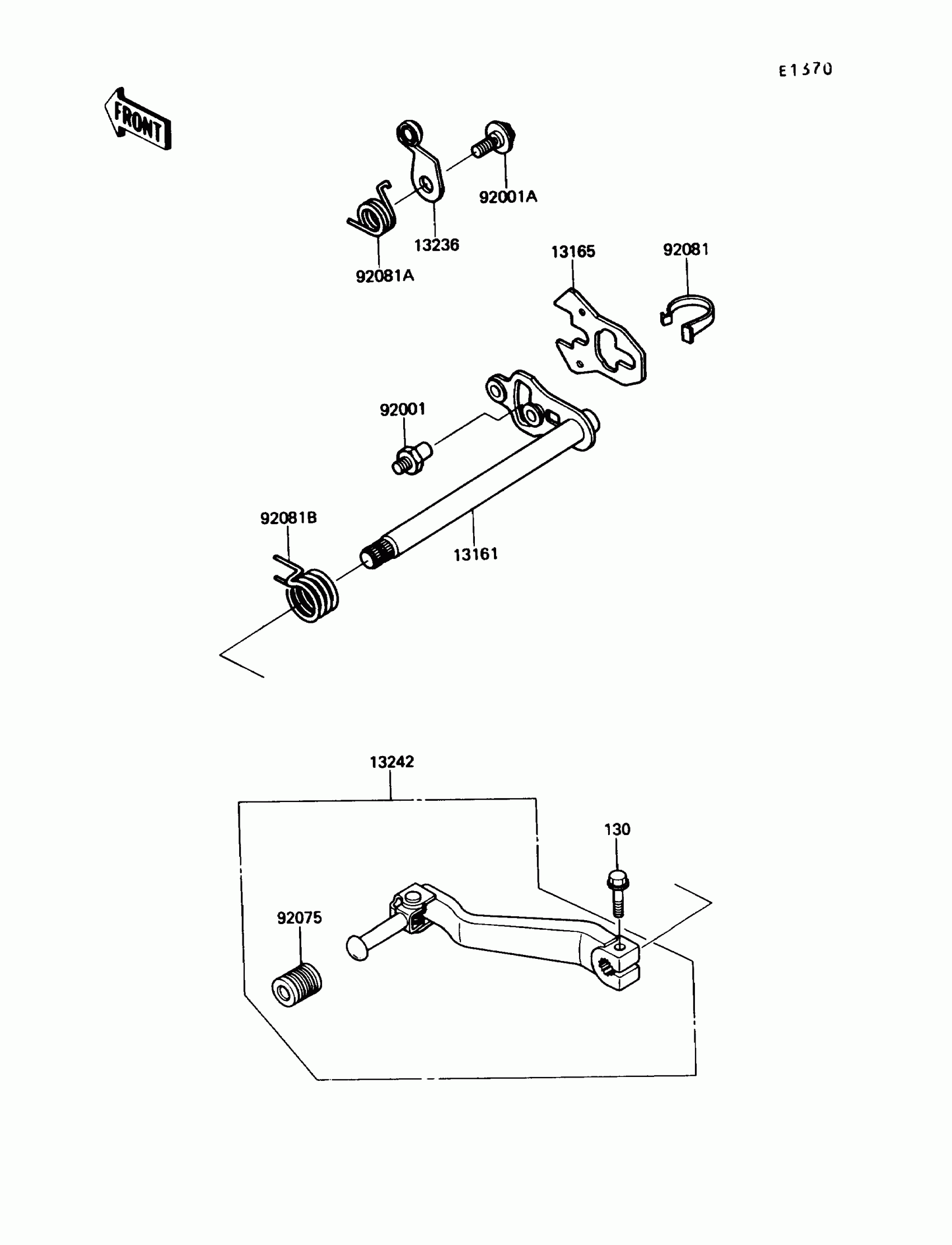

Kawasaki KLR650 Gear Change Mechanism Diagram

#

Description
Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1104

Unavailable

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP

13236-1101

$8.58

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1233

Unavailable

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92001A

BOLT,FLANGED,6X14

92001-1715

$10.25

92075

DAMPER,CHANGE PEDAL

92075-1944

$8.44

92081

SPRING,CHANGE LEVER

92081-1493

$5.55

92081A

SPRING

92081-1496

$8.73

92081B

SPRING,CHANGE PEDAL RETURN

92081-1750

$10.93

130

BOLT-FLANGED,6X20

130S0620

Unavailable
