2025 Kawasaki KLR650 S Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

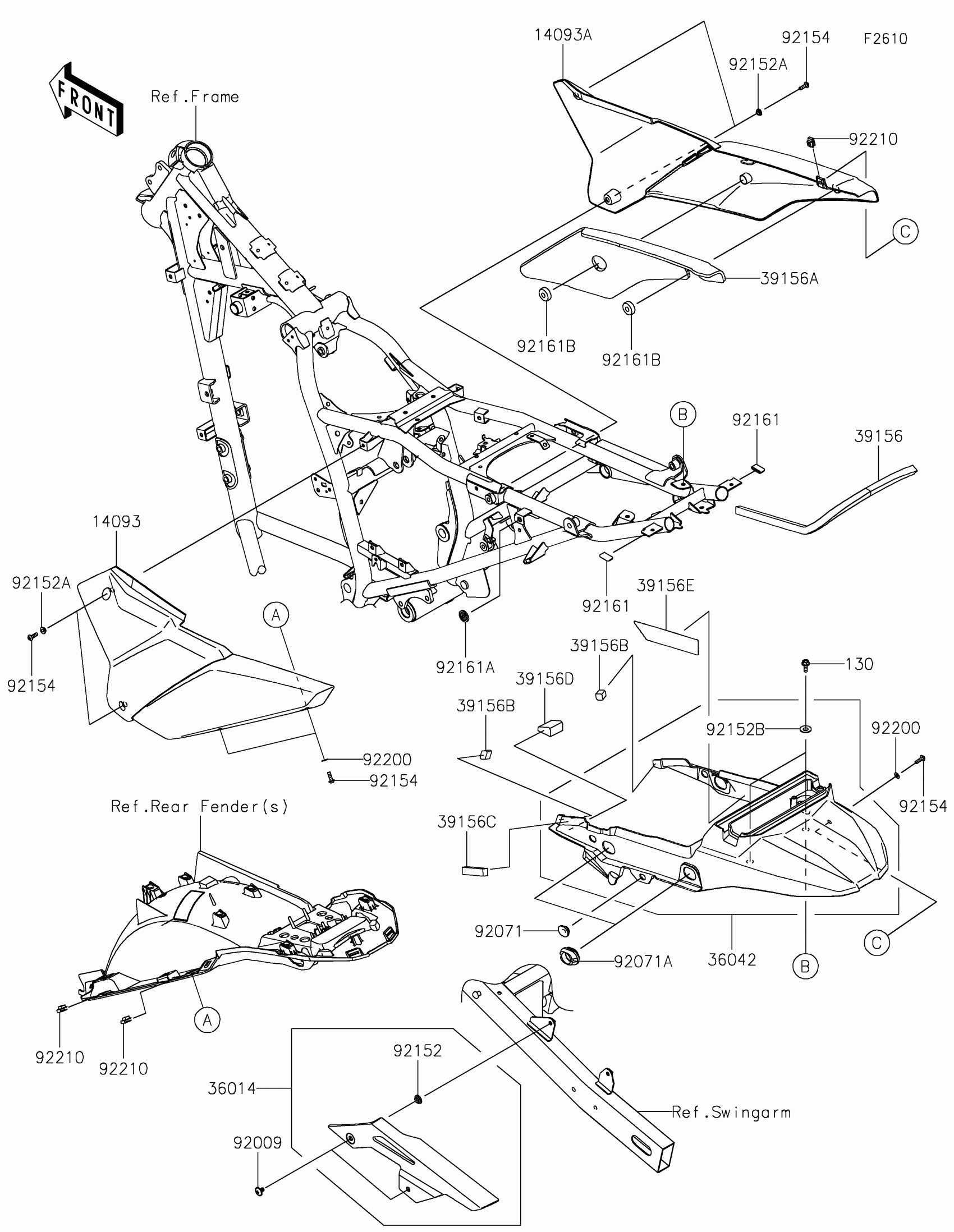

2025 Kawasaki KLR650 S Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SIDE,LH,BLACK

14093-1275-6Z

1
Out of stock

14093A

COVER,SIDE,RH,BLACK

14093-1276-6Z

1
Out of stock

36014

CASE-CHAIN

36014-0044

1
Out of stock

36042

COVER-TAIL,BLACK

36042-0015-6Z

1
Out of stock

39156

PAD,10X13X440

39156-2663

1
Out of stock

39156A

PAD,SIDE COVER,RH

39156-2682

1
Out of stock

39156B

PAD

39156-2750

1
Out of stock

39156C

PAD,10X13X62

39156-2763

1
Out of stock

39156D

PAD

39156-2764

1
Out of stock

39156E

PAD,TAIL COVER

39156-2780

1
Out of stock

92009

SCREW,6X10

92009-1729

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92071A

GROMMET,26.4X42.4X15.8

92071-0772

1
Out of stock

92152

COLLAR,8.8X11.2X4

92152-0909

1
Out of stock

92152A

COLLAR

92152-2903

1
Out of stock

92152B

COLLAR

92152-2907

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0182

1
Out of stock

92161

DAMPER,12X23

92161-1367

1
Out of stock

92161A

DAMPER,8X22X10

92161-1685

1
Out of stock

92161B

DAMPER

92161-2090

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1
Out of stock
