2025 Kawasaki KLR650 S Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

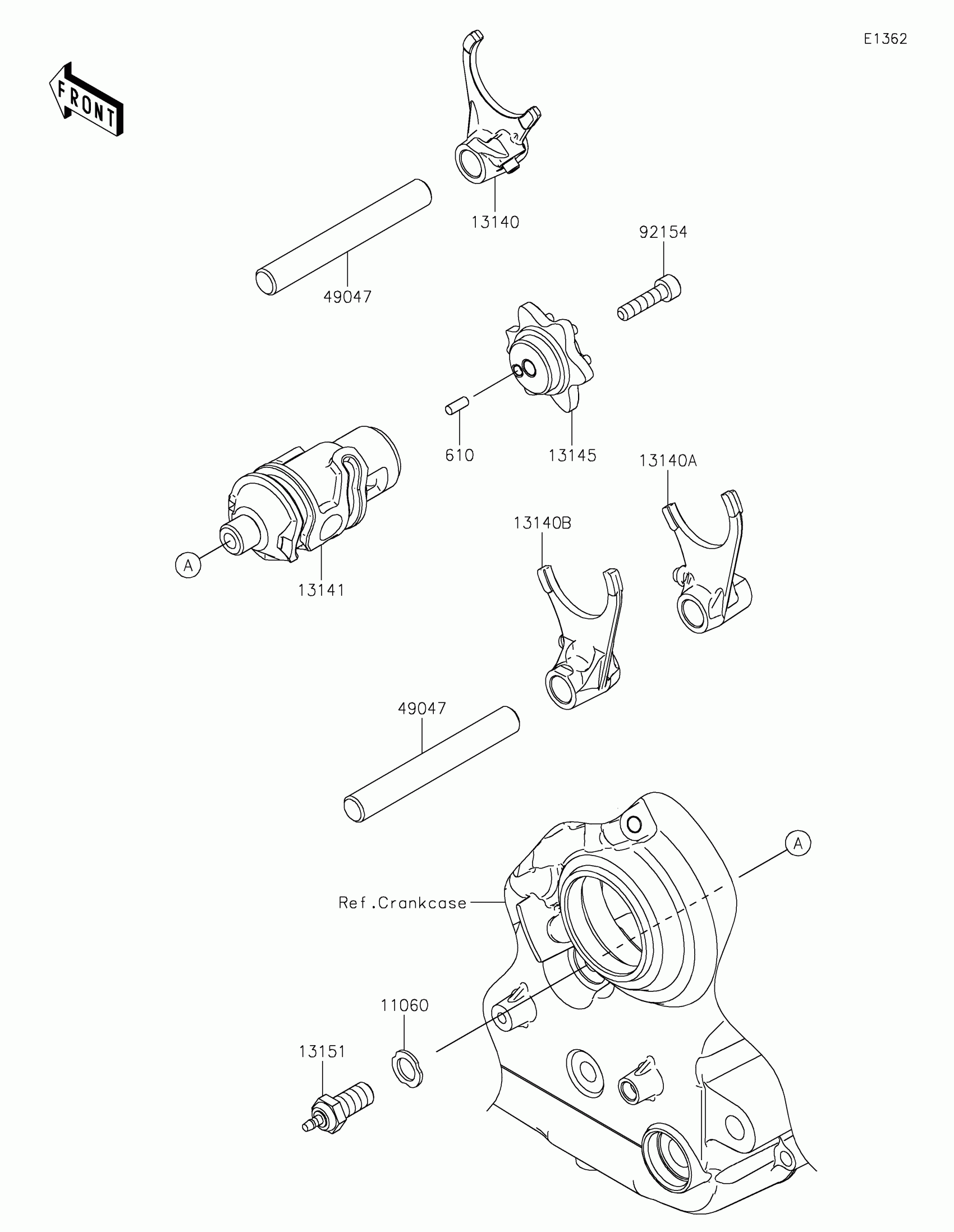

2025 Kawasaki KLR650 S Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,10.5X16X1.5

11060-1676

1
Out of stock

13140

FORK-SHIFT

13140-0694

1
Out of stock

13140A

FORK-SHIFT,LOW

13140-1023

1
Out of stock

13140B

FORK-SHIFT,2ND&3RD

13140-1024

1
Out of stock

13141

DRUM-CHANGE

13141-0613

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0050

1
Out of stock

13151

SWITCH-COMP

13151-0559

1
Out of stock

49047

ROD-SHIFT,L=93.7

49047-0039

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0477

1
Out of stock

610

ROLLER,4X10

610A0410

1
Out of stock
