2025 Kawasaki KLR650 S Headlight Diagram

← All diagrams

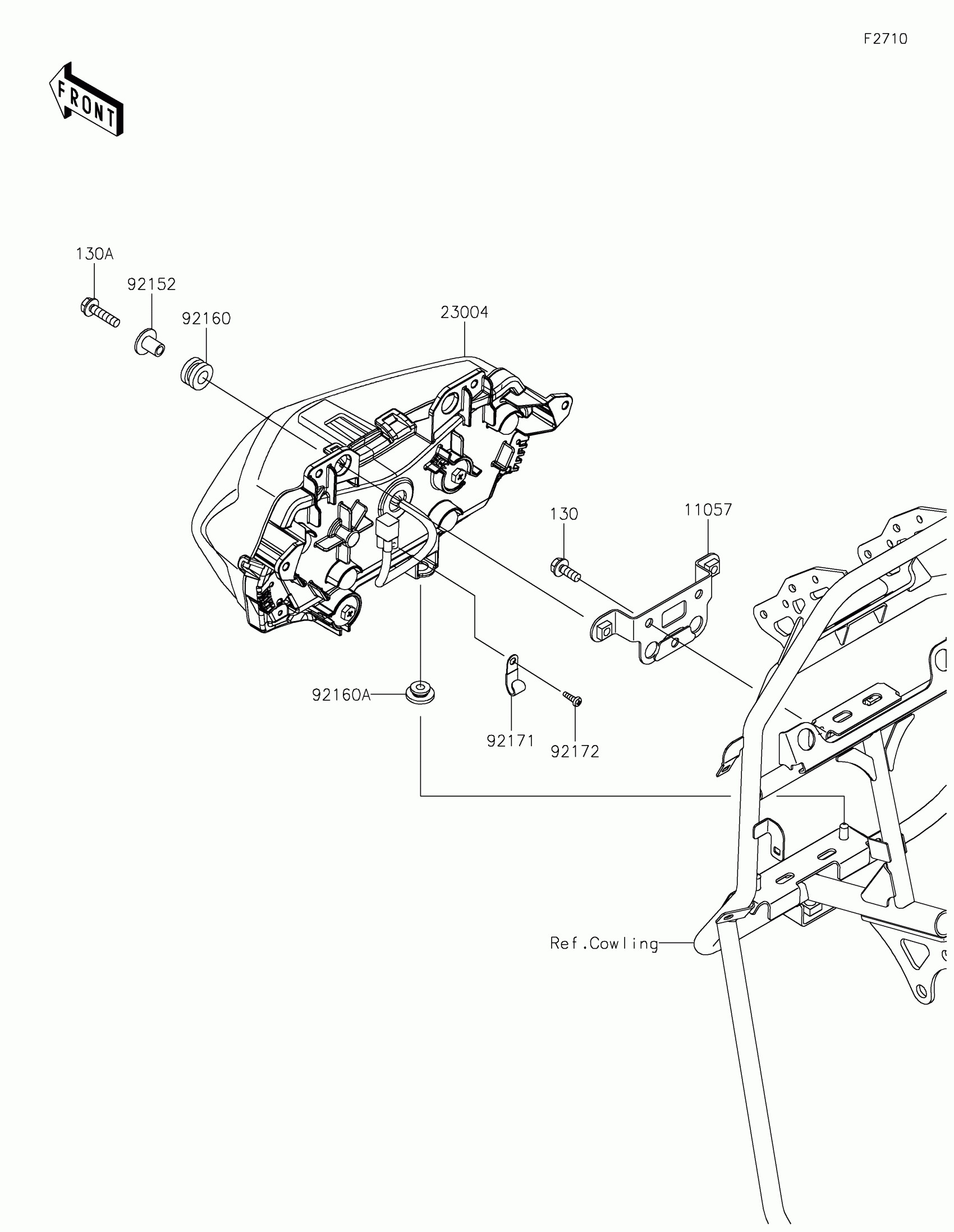

Find the part on the Headlight diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP

11057-7884

1

$12.95

In stock

23004

LAMP-HEAD,LED

23004-0414

1

$1,249.46

In stock

92152

COLLAR,6.3X20X15.1

92152-2322

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92171

CLAMP

92171-1539

1

$2.29

In stock

92172

SCREW,TAPPING,4X12

92172-0233

1

$1.20

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
