2025 Kawasaki KLR650 S Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

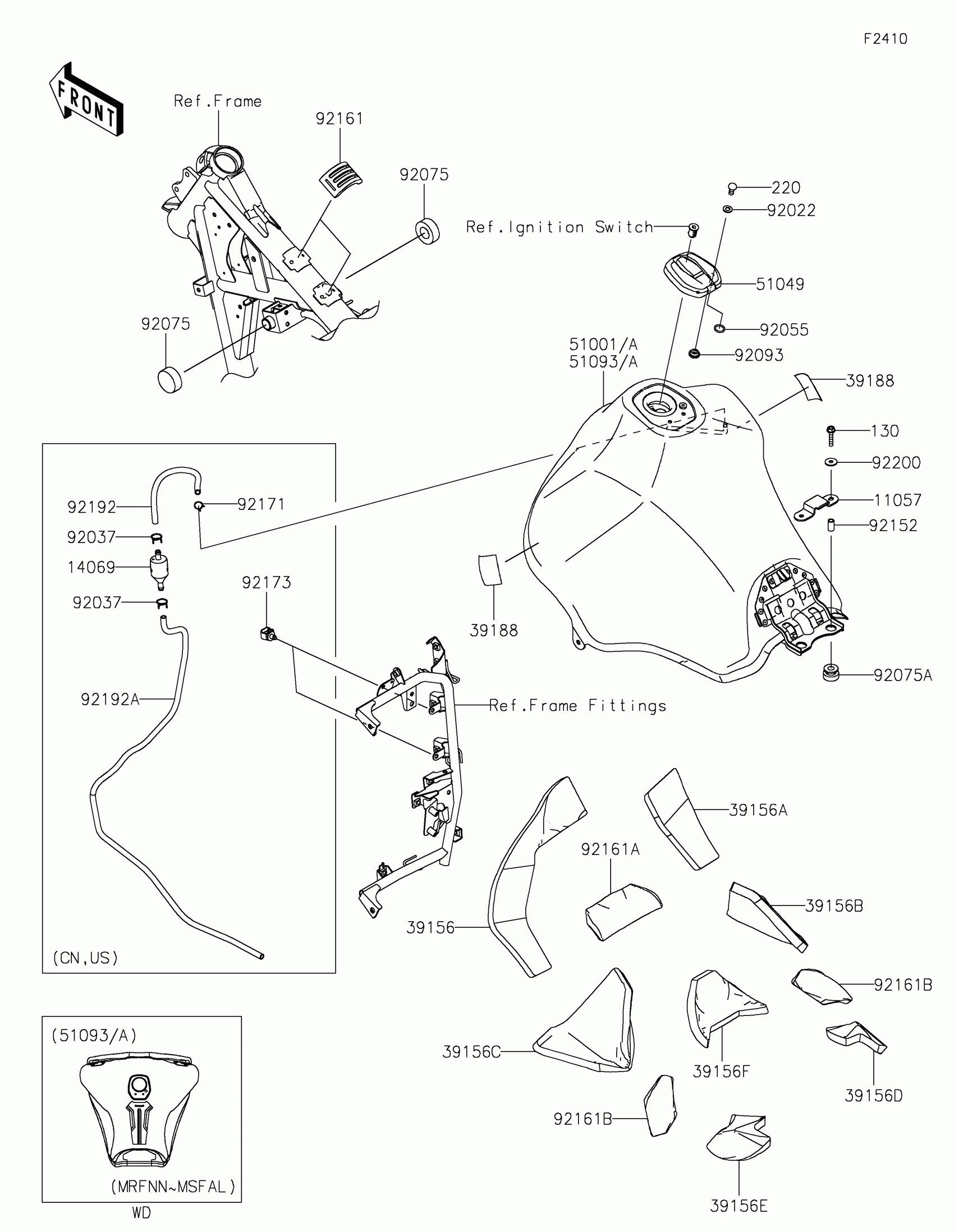

2025 Kawasaki KLR650 S Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SEAT

11057-4274

1

$4.47

In stock

39156

PAD,FR,LH

39156-2664

1

$22.51

In stock

39156A

PAD,FR,RH

39156-2665

1

$9.92

In stock

39156B

PAD,MID,RH

39156-2701

1

$13.75

In stock

39156C

PAD,MID,LH

39156-2702

1

$13.75

In stock

39156D

PAD,RR,RH

39156-2703

1

$5.92

In stock

39156E

PAD,RR,LH

39156-2704

1

$5.92

In stock

39156F

PAD,CNT

39156-2705

1

$8.24

In stock

39188

TAPE,40X50

39188-0049

1

$2.24

In stock

51049

CAP-TANK,FUEL

51049-0760

1

$78.96

In stock

51093

TANK-COMP-FUEL,M.C.GRAY

51093-5173-51A

1

$1,040.24

In stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92055

RING-O

92055-1023

1

$3.12

In stock

92075

DAMPER,FUEL TANK

92075-101

1

$4.93

In stock

92075A

DAMPER

92075-1660

1

$6.44

In stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock

92152

COLLAR,6.8X10X18

92152-2726

1

$2.63

In stock

92161

DAMPER

92161-2372

1

$4.08

In stock

92161A

DAMPER,CNT

92161-2394

1

$13.61

In stock

92161B

DAMPER,LH&RH

92161-2395

1

$10.93

In stock

92200

WASHER,6.5X20X1.6

92200-1962

1
Out of stock

130

BOLT-FLANGED,6X30

130BB0630

1

$3.52

In stock

220

1

$0.75

In stock

14069

BREATHER,FUEL TANK

14069-1004

1

$8.09

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92171

CLAMP,8X0.7

92171-1973

1

$1.20

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92192

1

$4.25

In stock

92192A

1

$12.37

In stock
