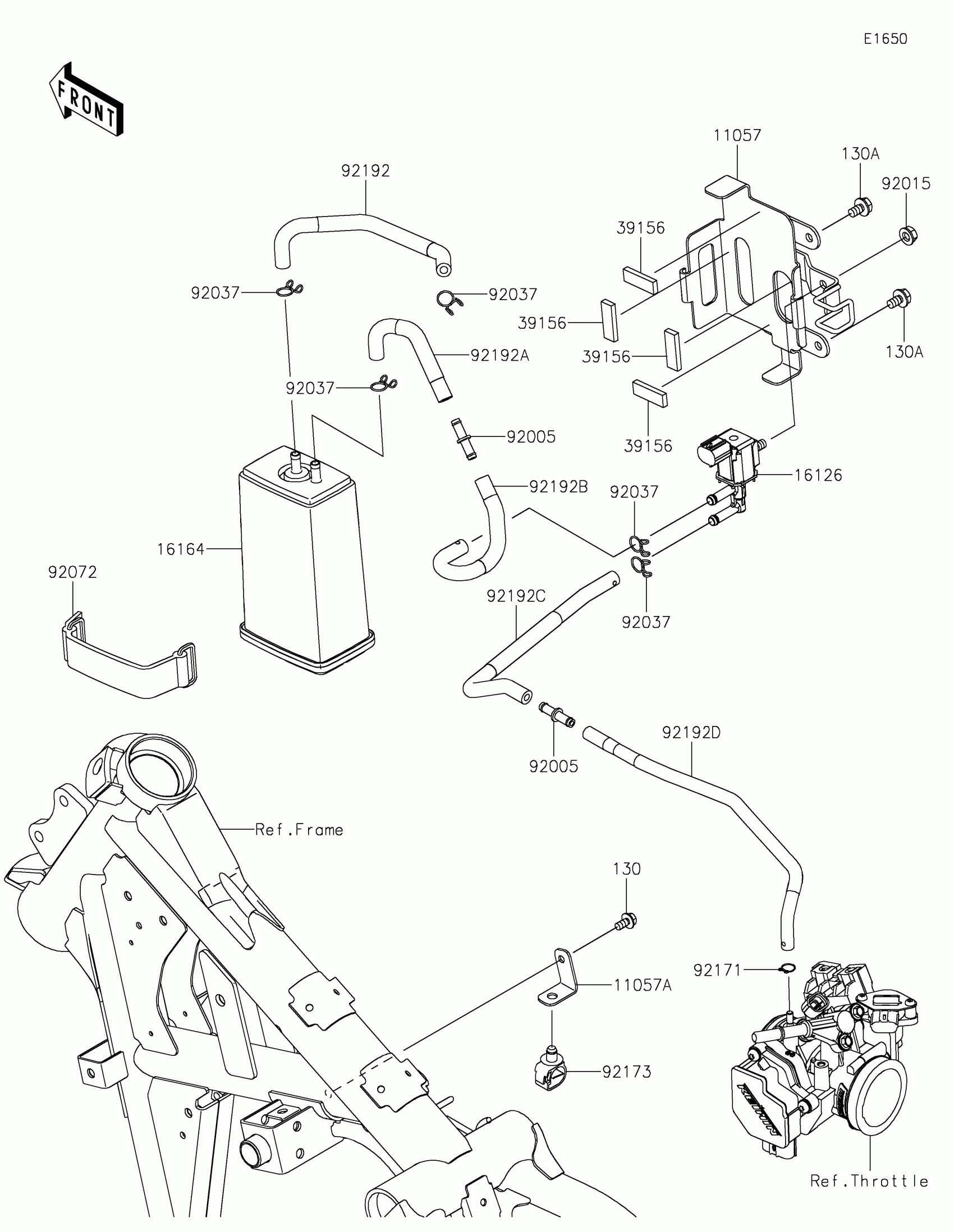

Kawasaki KLR650 S Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-4309

$38.23

11057A

BRACKET,EVAPO TUBE

11057-4394

$3.12

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

39156

PAD,10X30X4

39156-0927

$0.85

92005

FITTING

92005-0721

$8.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,TUBE

92037-147

$5.61

92072

BAND,L=90

92072-0135

$13.62

92171

CLAMP

92171-0573

$1.20

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92192

TUBE,TANK-CANISTER

92192-2455

$25.93

92192A

TUBE,CANISTER-FITTING

92192-2456

$22.58

92192B

TUBE,FITTING-VALVE

92192-2457

$20.29

92192C

TUBE,VALVE-FITTING

92192-2458

$39.84

92192D

TUBE,FITTING-THROTTLEBODY

92192-2591

$52.13

130

BOLT-FLANGED,5X10

130BA0510

$1.27

130A

BOLT-FLANGED,6X10

130BA0610

$0.97
