Description

Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44008

PIPE-FORK OUTER

44008-0097

$475.95

44008A

PIPE-FORK OUTER

44008-0098

$475.95

44013

PIPE-FORK INNER

44013-0107

$352.37

44023

CYLINDER-SET-FORK

44023-0195

$181.51

44026

SPRING-FRONT FORK

44026-0298

$71.34

44029

SEAT-FORK SPRING

44029-0005

$44.62

44037

HOLDER-FORK UNDER

44037-0206

$614.87

44039

HOLDER-FORK UPPER

44039-0202

$321.22

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$29.57

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$28.71

44071

DAMPER-ASSY,FORK,LH

44071-1563

$766.97

44071A

DAMPER-ASSY,FORK,RH

44071-1564

$766.97

49006

BOOT

49006-0645

$63.03

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

$19.34

92055

RING-O

92055-1321

$1.35

92072

BAND,BOOT

92072-1077

$9.98

92093

SEAL,DUST

92093-0036

$20.49

92152

COLLAR,FORK

92152-0410

$14.80

92200

WASHER

92200-1467

$9.91

120

BOLT-SOCKET,8X30

120CA0830

$2.80

130

BOLT-FLANGED,8X40

130BA0840

$1.98

220

SCREW-PAN-CROS,4X16

220AB0416

$1.81

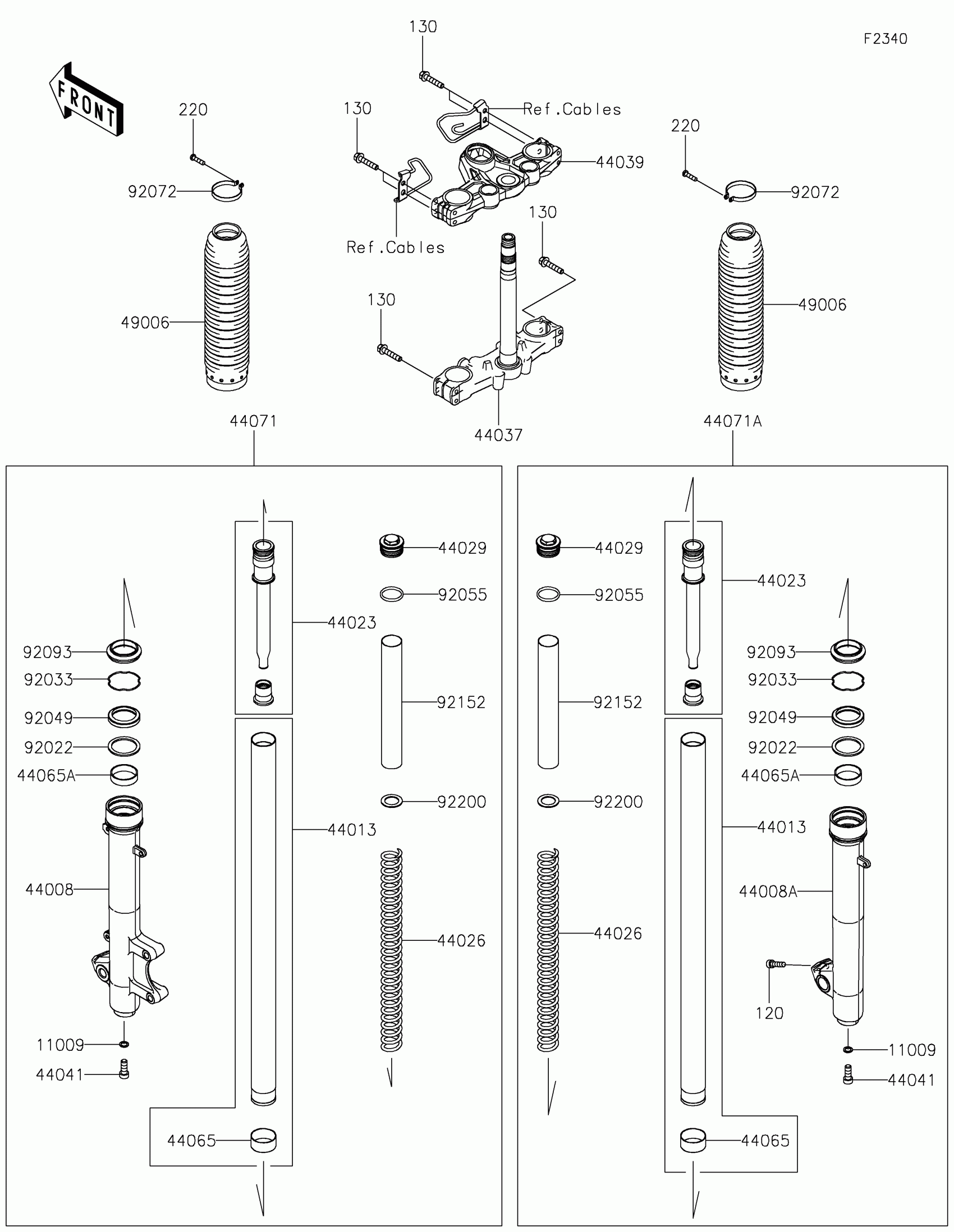

Kawasaki KLR650 S Front Fork Diagram

GASKET,10.5X15X1.5

PIPE-FORK OUTER

PIPE-FORK OUTER

PIPE-FORK INNER

CYLINDER-SET-FORK

SPRING-FRONT FORK

SEAT-FORK SPRING

HOLDER-FORK UNDER

HOLDER-FORK UPPER

BOLT,SOCKET,FORK CYLINDER

BUSHING-FRONT FORK,INNER TUBE

BUSHING-FRONT FORK,OUTER TUBE

DAMPER-ASSY,FORK,LH

DAMPER-ASSY,FORK,RH

BOOT

WASHER,FORK OUTER TUBE

RING-SNAP

SEAL-OIL,FORK OUTER TUBE

RING-O

BAND,BOOT

SEAL,DUST

COLLAR,FORK

WASHER

BOLT-SOCKET,8X30

BOLT-FLANGED,8X40

SCREW-PAN-CROS,4X16
