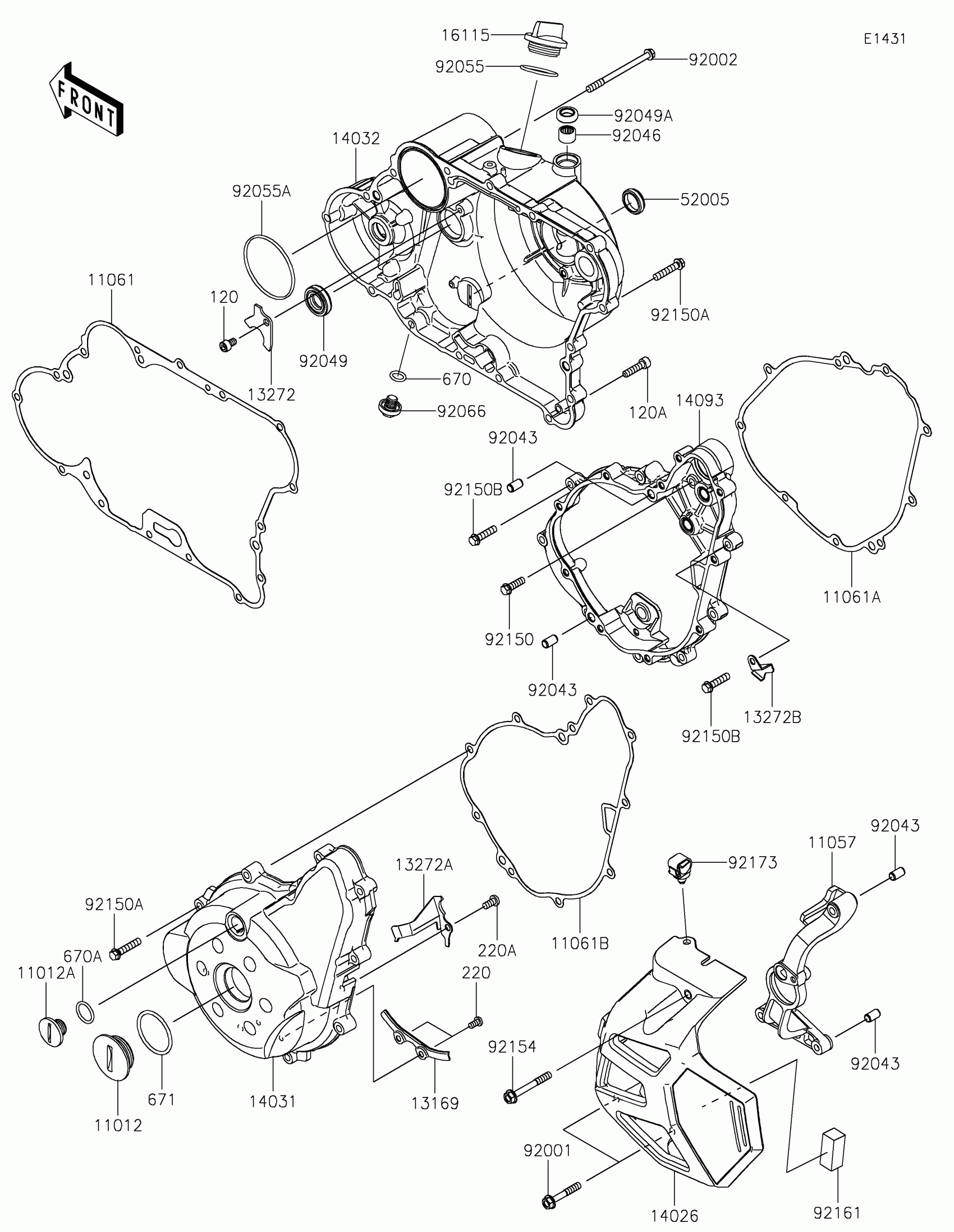

Kawasaki KLR650 S Engine Cover(s) Diagram
#
11012
CAP
11012-1362
$8.79
11012A
CAP,TOP MARK
11012-1363
$6.51
11057
BRACKET,SPEED SENSOR
11057-4312
$67.96
11061
GASKET,CLUTCH COVER
11061-0429
$15.89
11061A
GASKET,GENERATOR CASE COVER
11061-1486
$26.99
11061B
GASKET,GENERATOR COVER
11061-1487
$26.99
13169
PLATE,PULSING COIL LEAD
13169-1882
$8.86
13272
PLATE,OIL SEAL
13272-0863
$7.98
13272A
PLATE,GENERATOR
13272-0869
$10.60
13272B
PLATE,GENERATOR
13272-3871
$2.56
14026
COVER-CHAIN
14026-0153
$63.59
14031
COVER-GENERATOR
14031-0126
$324.18
14032
COVER-CLUTCH
14032-0674
$392.10
14093
COVER,GENERATOR CASE
14093-1080
$271.40
16115
CAP-OIL FILLER
16115-1068
$5.74
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92001
BOLT,6X38
92001-1899
$4.39
92002
BOLT,FLANGED,6X80
92002-1568
Unavailable
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL,SCY 15X30X7
92049-1158
$25.27
92049A
SEAL-OIL
92049-1560
$9.28
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,62.6X66X3.1
92055-1221
$8.86
92066
PLUG,DRAIN
92066-1156
$9.20
92150
BOLT,6X20
92150-1010
Unavailable
92150A
BOLT,6X30
92150-1021
Unavailable
92150B
BOLT,FLANGED-SMALL,6X25
92150-1779
Unavailable
92154
BOLT,FLANGED,6X50
92154-4222
$2.56
92161
DAMPER,15X35X15
92161-2359
$1.59
92173
CLAMP,12MM DIA.
92173-0736
$5.05
120
BOLT-SOCKET,6X10
120CA0610
$1.71
120A
BOLT-SOCKET,6X25
120CB0625
$2.62
220
SCREW-PAN-CROS,5X10
220AA0510
$0.71
220A
SCREW-PAN-CROS,6X12
220AA0612
$1.19
670
O RING,11MM
670B2011
$1.28
670A
O RING,18MM
670B2018
$1.42
671
O RING,40MM
671B2540
$6.22
