Description

Price

13087

HUB-CLUTCH

13087-0046

$146.22

13088

PLATE-FRICTION

13088-0023

$16.58

13089

PLATE-CLUTCH,T=2.3

13089-0016

$12.75

13095

HOUSING-COMP-CLUTCH

13095-0129

$505.82

13102

RELEASE-COMP-CLUTCH

13102-0083

$60.60

13187

PLATE-CLUTCH OPERATING

13187-0037

$75.58

13280

HOLDER

13280-0379

$14.18

46102

ROD

46102-0668

$21.63

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92026

SPACER,25.5X48X2

92026-0114

$5.65

92026A

SPACER,25.1X38X4

92026-0154

$20.32

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92143

COLLAR

92143-1769

$33.18

92145

SPRING,CLUTCH

92145-0796

$8.51

92150

BOLT,6X12

92150-1965

$4.31

92153

BOLT,UPSET-WP,6X32

92153-1880

$3.39

92180

SHIM,15.3X27.5X2.0

92180-0149

$3.90

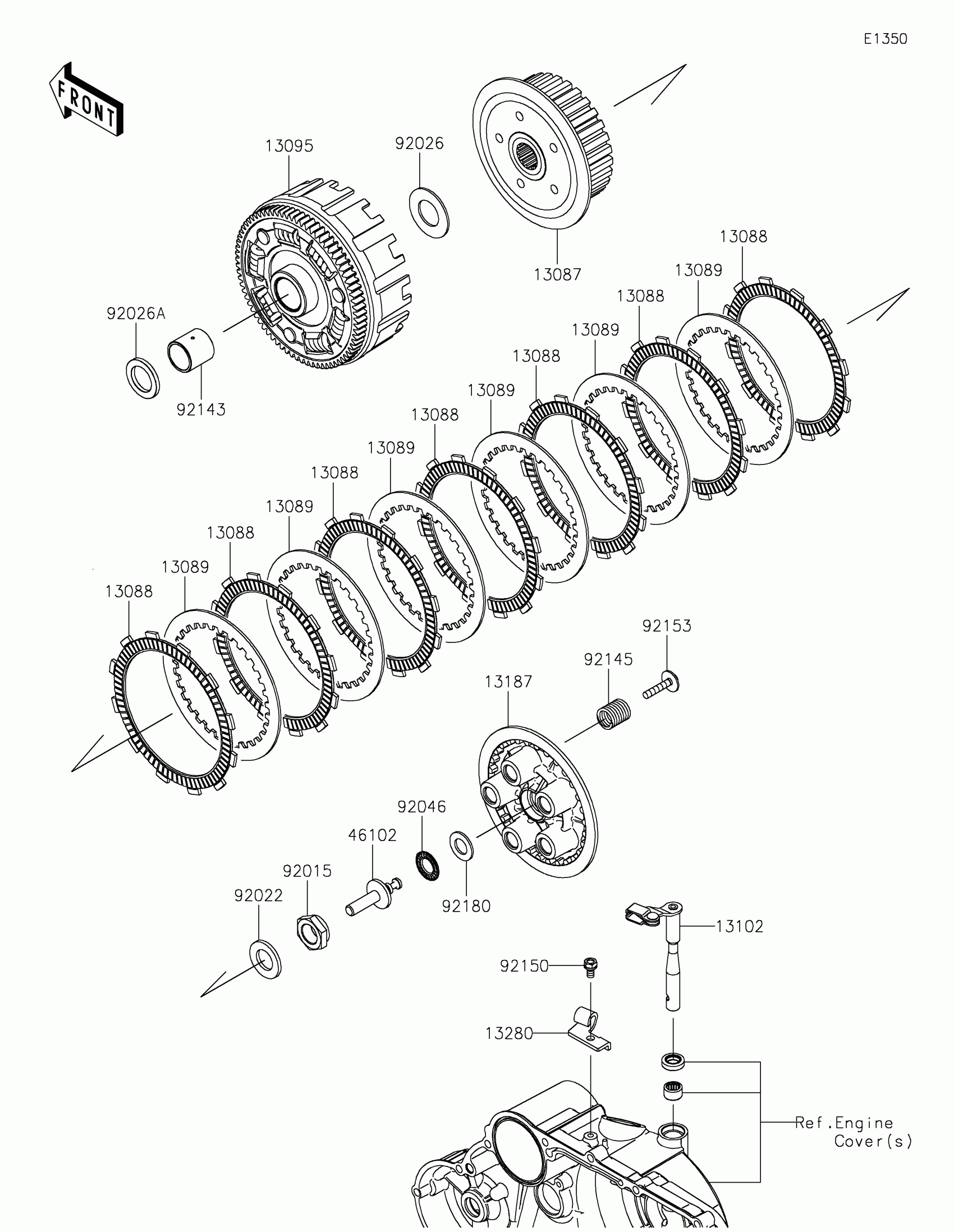

Kawasaki KLR650 S Clutch Diagram
