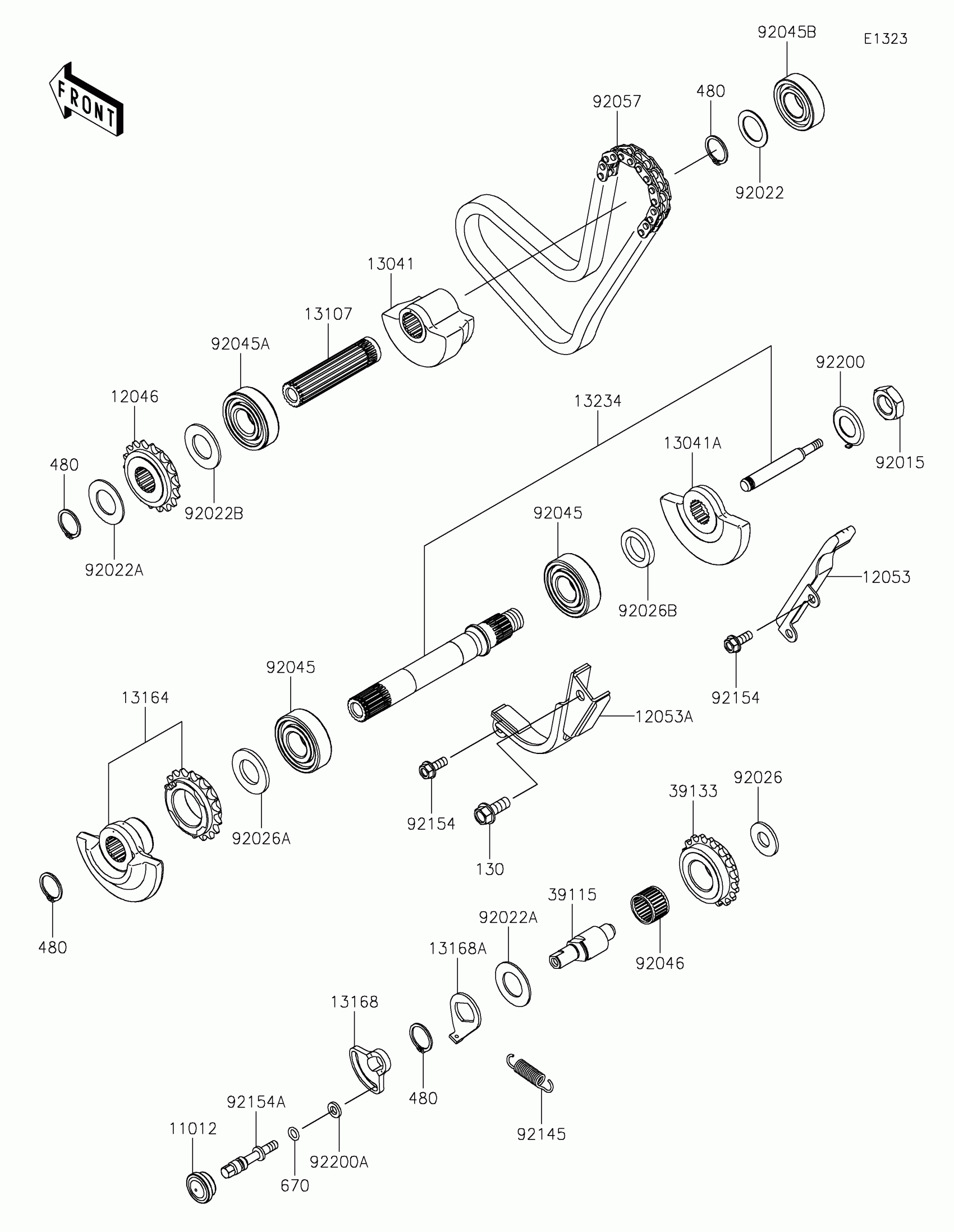

Kawasaki KLR650 S Balancer Diagram
#
Description
Price
11012
CAP
11012-1369
$5.46
12046
SPROCKET,BALANCER,18T
12046-1165
$94.37
12053
GUIDE-CHAIN,RR
12053-1111
$39.83
12053A
GUIDE-CHAIN,FR
12053-1175
$59.07
13041
BALANCER,RR
13041-0032
$140.28
13041A
BALANCER,FR,RH
13041-0034
$105.38
13107
SHAFT,BALANCER,RR
13107-1104
$78.57
13164
BALANCER-COMP,FR,LH
13164-0002
$169.05
13168
LEVER,IDLER SHAFT
13168-0184
$42.02
13168A
LEVER
13168-0911
$4.59
13234
SHAFT-COMP,BALANCER,FR
13234-0035
$136.13
39115
SHAFT-IDLER
39115-0022
$64.82
39133
SPROCKET-IDLER,IDLER
39133-1060
$95.16
92015
NUT,16MM
92015-1477
$8.10
92022
WASHER,20.5X30X1,STEEL
92022-112
$8.86
92022A
WASHER,20.3X36X1.5
92022-1489
$6.22
92022B
WASHER,20.2X36X2
92022-1880
$7.34
92026
SPACER,12.2X27X2.3
92026-0151
$11.16
92026A
SPACER,20.2X36X3
92026-0155
$12.32
92026B
SPACER,20.2X30X5
92026-1245
$15.16
92045
BEARING-BALL,20X47X14
92045-0070
$27.56
92045A
BEARING-BALL
92045-0071
$27.56
92045B
BEARING-BALL,20X42X12
92045-0072
$11.73
92046
BEARING-NEEDLE
92046-0640
$17.80
92057
CHAIN,BALANCER,BF06HX70L
92057-0888
$336.12
92145
SPRING
92145-0529
$7.60
92154
BOLT,FLANGED,6X16
92154-1428
$1.48
92154A
BOLT,IDLER LEVER
92154-4358
$58.67
92200
WASHER
92200-0558
$6.26
92200A
WASHER,6.5X12X2.0
92200-1263
$3.32
130
BOLT-FLANGED,8X20
130CA0820
$1.71
480
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
670
O RING,7MM
670B1507
$1.28
