2025 Kawasaki KLR650 S Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

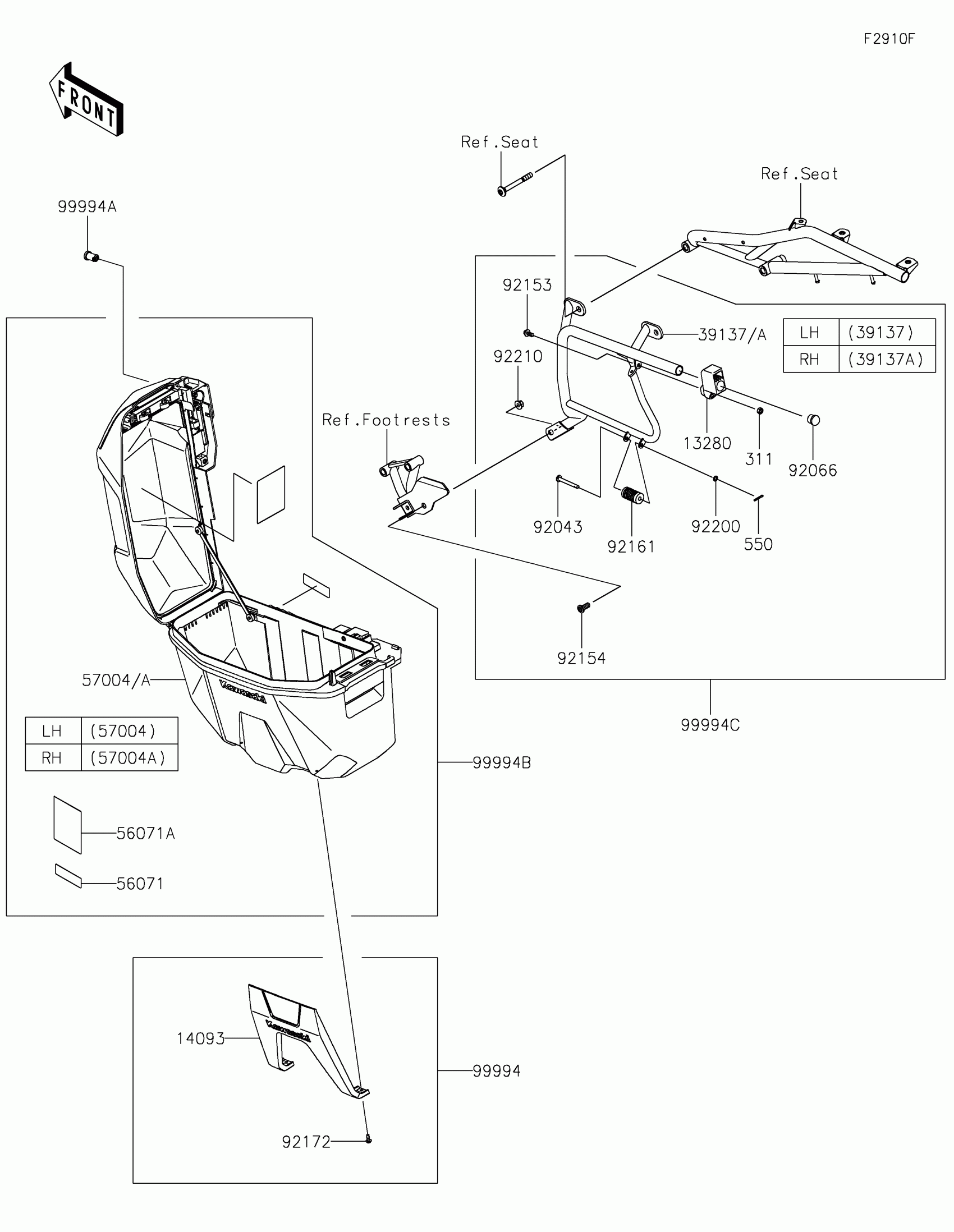

2025 Kawasaki KLR650 S Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,PANNIER

13280-1314

1

$34.17

In stock

14093

COVER,PANNIER,M.P.SILVER

14093-1068-GU

1

$157.76

In stock

39137

STAY-COMP,LH

39137-0738

1

$78.03

In stock

39137A

STAY-COMP,RH

39137-0739

1

$78.03

In stock

56071

1

$7.32

In stock

56071A

1

$44.95

In stock

57004

BAG-ASSY,PANNIER,LH

57004-0023

1
Out of stock

57004A

BAG-ASSY,PANNIER,RH

57004-0024

1

$346.63

In stock

92043

PIN,6X44.5

92043-1110

1

$4.51

In stock

92066

PLUG

92066-1484

1
Out of stock

92153

BOLT,FLANGED,6X14

92153-1571

1

$1.81

In stock

92154

BOLT,SOCKET8X20

92154-1711

1

$1.68

In stock

92161

DAMPER

92161-2401

1

$6.13

In stock

92172

SCREW,SOCKET,5X14

92172-0823

1

$0.85

In stock

92200

WASHER,6.2X10X1

92200-1465

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0304

1
Out of stock

99994

1

$118.99

In stock

99994A

ROTOR(2PC)

99994-1566

1

$60.78

In stock

99994B

SIDECASES

99994-1866

1

$735.59

In stock

99994C

FITTING-SIDECASES

99994-1942

1

$26.16

In stock

311

NUT-HEX,6MM

311BA0600

1

$1.64

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
