2025 Kawasaki KLR650 S Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

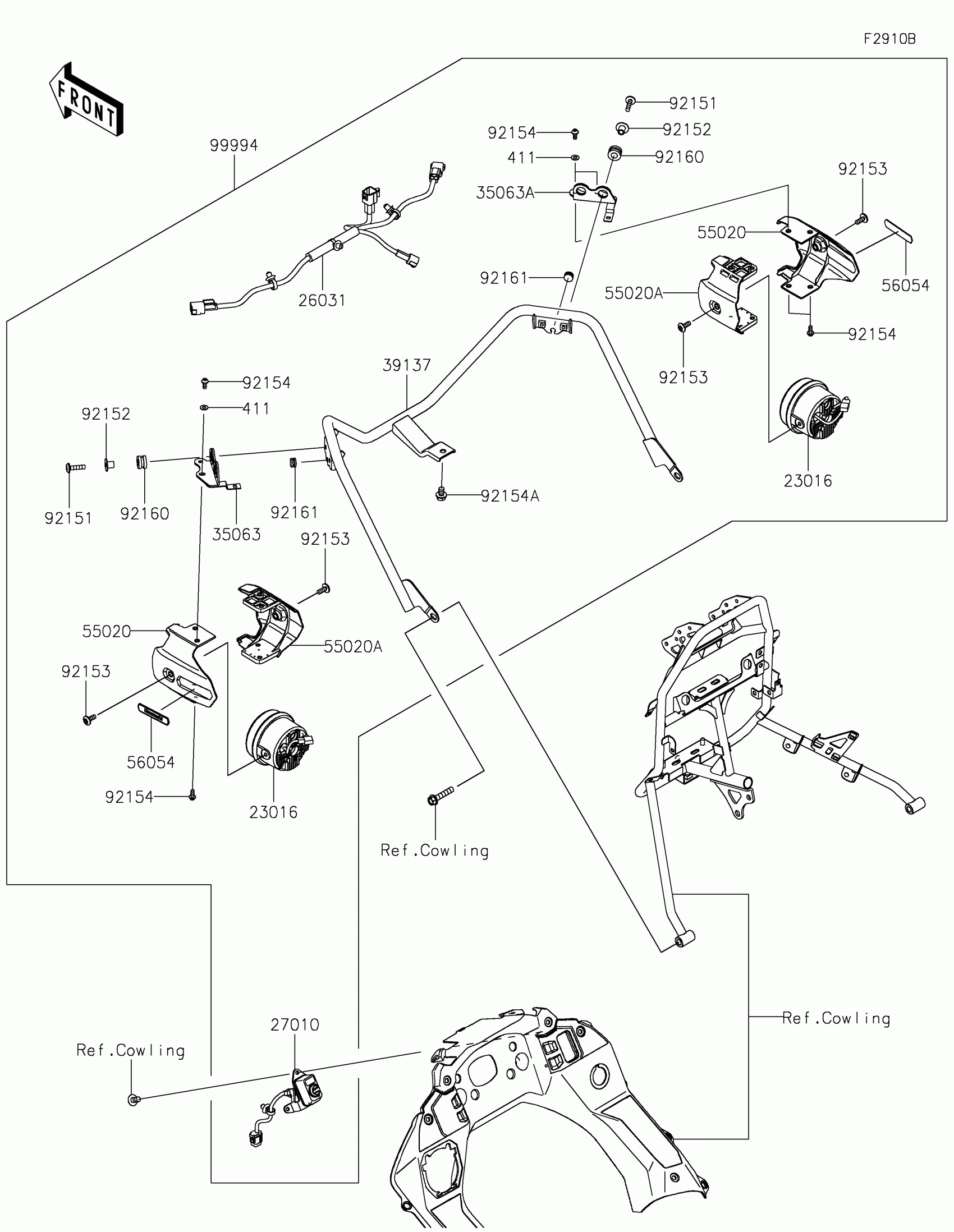

2025 Kawasaki KLR650 S Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23016

LAMP-ASSY,LED,FOG,PIAA

23016-0599

1
Out of stock

26031

HARNESS,FOG LAMP

26031-3860

1
Out of stock

27010

SWITCH,FOG LAMP

27010-0968

1
Out of stock

35063

STAY,LH

35063-1537

1
Out of stock

35063A

STAY,RH

35063-1538

1
Out of stock

39137

STAY-COMP,MAIN

39137-0713

1
Out of stock

55020

GUARD,OUTER

55020-1825

1
Out of stock

55020A

GUARD,INNER

55020-1826

1
Out of stock

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

1
Out of stock

92151

BOLT,SOCKET,6X25

92151-1611

1
Out of stock

92152

COLLAR,6.5X20X12

92152-2262

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92154A

BOLT,FLANGED,8X12

92154-4252

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER,8X14X8.9

92161-1666

1
Out of stock

99994

FOG LAMP

99994-1498

1
Out of stock

411

WASHER-PLAIN,5MM

411AB0500

1
Out of stock
