2025 Kawasaki KLR650 S ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

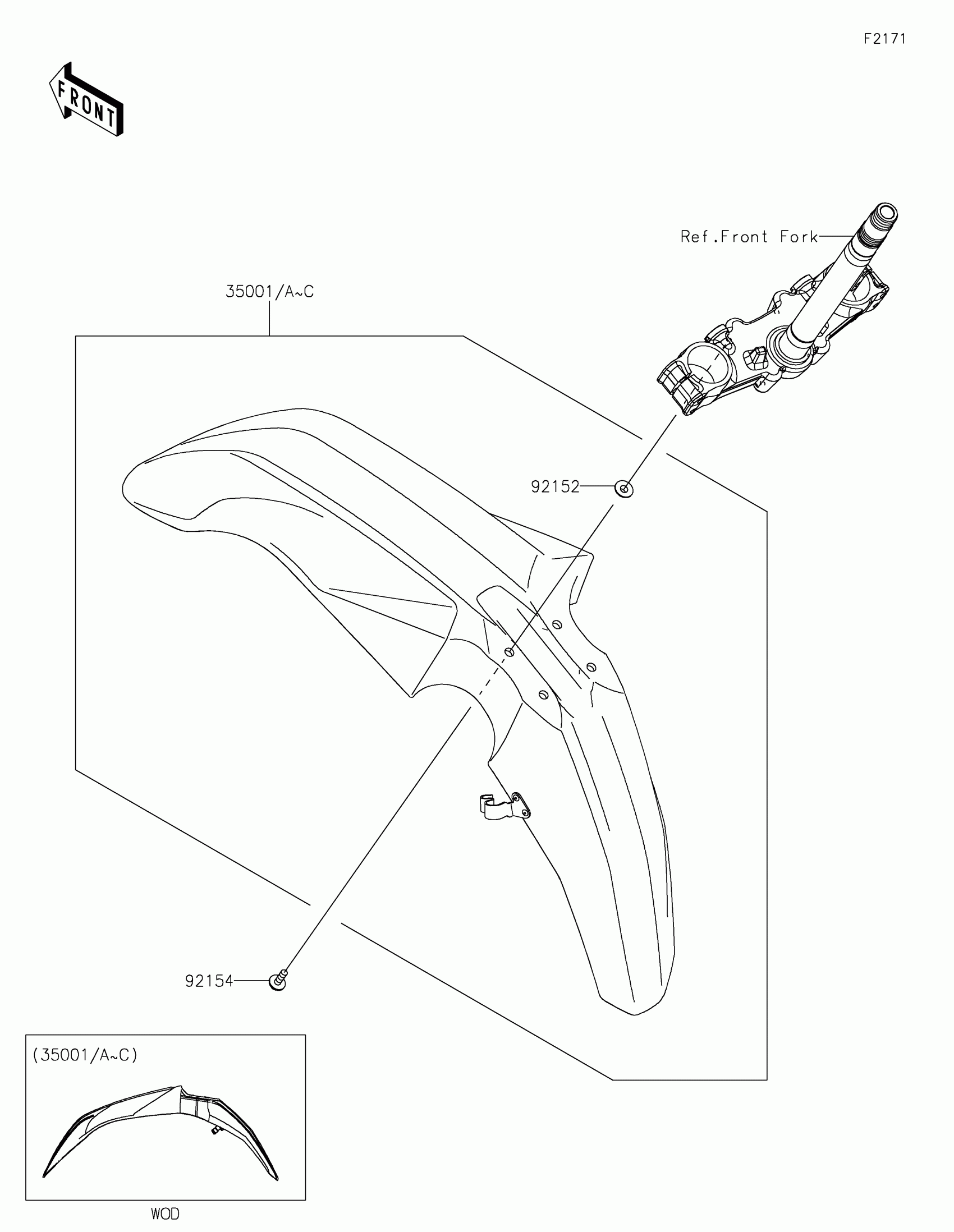

2025 Kawasaki KLR650 S ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35001

FENDER-ASSY-FRONT,B.WHITE

35001-0083-266

1
Out of stock

92152

COLLAR

92152-0427

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-0392

1
Out of stock
