2025 Kawasaki KLR650 S ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

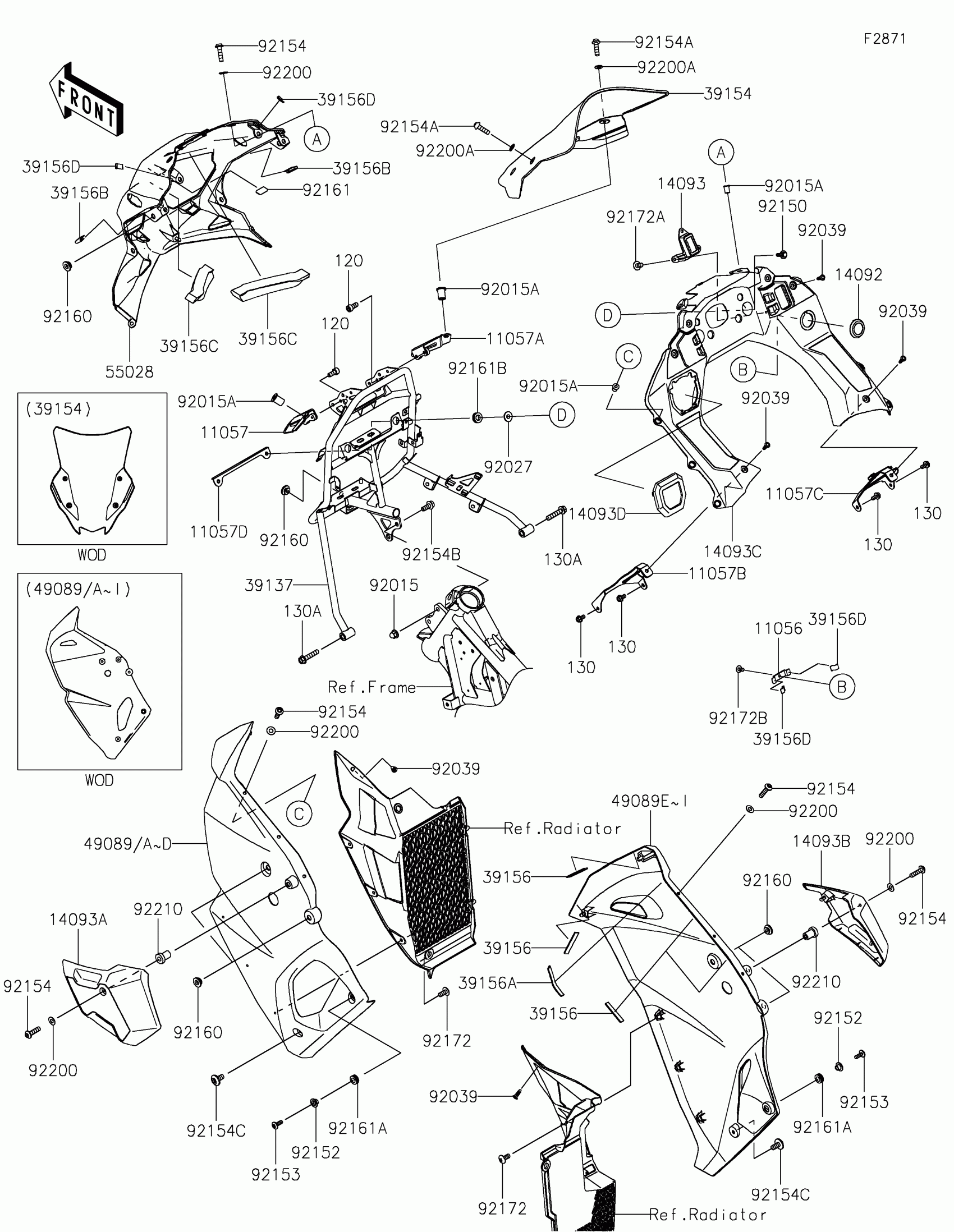

2025 Kawasaki KLR650 S ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CAP COVER

11056-4313

1

$1.10

In stock

11057

1

$4.68

In stock

11057A

1

$4.68

In stock

11057B

1

$9.61

In stock

11057C

1

$11.39

In stock

11057D

BRACKET,METER

11057-7893

1

$5.19

In stock

14092

COVER,DC SOCKET

14092-0214

1

$5.71

In stock

14093

COVER,FOG SW.

14093-0565

1

$2.37

In stock

14093A

COVER,SHROUD,LH

14093-1074

1

$43.54

In stock

14093B

COVER,SHROUD,RH

14093-1075

1

$43.54

In stock

14093C

COVER,DASHBOARD

14093-1076

1

$226.54

In stock

14093D

COVER,USB

14093-1077

1

$31.45

In stock

39137

STAY-COMP,COWLING

39137-0731

1

$329.45

In stock

39154

WINDSHIELD

39154-0434

1

$142.66

In stock

39156

PAD,10X50X2

39156-1924

1

$2.02

In stock

39156A

PAD,10X80X2

39156-2238

1

$1.20

In stock

39156B

PAD,25X25X2

39156-2573

1

$1.12

In stock

39156C

PAD,20X15X150

39156-2762

1

$4.83

In stock

39156D

PAD,20X10X2

39156-2849

1

$0.69

In stock

49089C

1

$199.09

In stock

49089H

1

$185.72

In stock

55028

COWLING,UPP

55028-0800

1

$119.60

In stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92027

COLLAR,L=7.4

92027-1848

1

$3.72

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-2770

1

$3.07

In stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0216

1

$1.78

In stock

92154A

BOLT,SOCKET,5X18

92154-1945

1

$1.47

In stock

92154B

BOLT,SOCKET,8X20

92154-2314

1

$2.02

In stock

92154C

BOLT,SOCKET,6X12

92154-2355

1

$1.66

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

92161A

DAMPER,10X18X6.5

92161-2091

1

$2.02

In stock

92161B

DAMPER,10X20X6

92161-2168

1

$3.92

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92172A

SCREW,5X10

92172-0864

1

$1.20

In stock

92172B

SCREW,CROSS,4X8

92172-1227

1

$0.47

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.2X10X1

92200-2286

1

$0.44

In stock

92210

NUT,5MM

92210-0001

1
Out of stock

120

BOLT-SOCKET,5X12

120CB0512

1

$1.51

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,8X40

130BA0840

1

$1.68

In stock
