Description

Price

11012

CAP

11012-1369

$5.46

12046

SPROCKET,BALANCER,18T

12046-1165

$94.37

12053

GUIDE-CHAIN,RR

12053-1111

$39.83

12053A

GUIDE-CHAIN,FR

12053-1175

$59.07

13041

BALANCER,RR

13041-0032

$140.28

13041A

BALANCER,FR,RH

13041-0034

$105.38

13107

SHAFT,BALANCER,RR

13107-1104

$78.57

13164

BALANCER-COMP,FR,LH

13164-0002

$169.05

13168

LEVER,IDLER SHAFT

13168-0184

$42.02

13168A

LEVER

13168-0911

$4.59

13234

SHAFT-COMP,BALANCER,FR

13234-0035

$136.13

39115

SHAFT-IDLER

39115-0022

$64.82

39133

SPROCKET-IDLER,IDLER

39133-1060

$95.16

92015

NUT,16MM

92015-1477

$8.10

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,20.3X36X1.5

92022-1489

$6.22

92022B

WASHER,20.2X36X2

92022-1880

$7.34

92026

SPACER,12.2X27X2.3

92026-0151

$11.16

92026A

SPACER,20.2X36X3

92026-0155

$12.32

92026B

SPACER,20.2X30X5

92026-1245

$15.16

92045

BEARING-BALL,20X47X14

92045-0070

$27.56

92045A

BEARING-BALL

92045-0071

$27.56

92045B

BEARING-BALL,20X42X12

92045-0072

$11.73

92046

BEARING-NEEDLE

92046-0640

$17.80

92057

CHAIN,BALANCER,BF06HX70L

92057-0888

$336.12

92145

SPRING

92145-0529

$7.60

92154

BOLT,FLANGED,6X16

92154-1428

$1.48

92154A

BOLT,IDLER LEVER

92154-4358

$58.67

92200

WASHER

92200-0558

$6.26

92200A

WASHER,6.5X12X2.0

92200-1263

$3.32

130

BOLT-FLANGED,8X20

130CA0820

$1.71

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

670

O RING,7MM

670B1507

$1.28

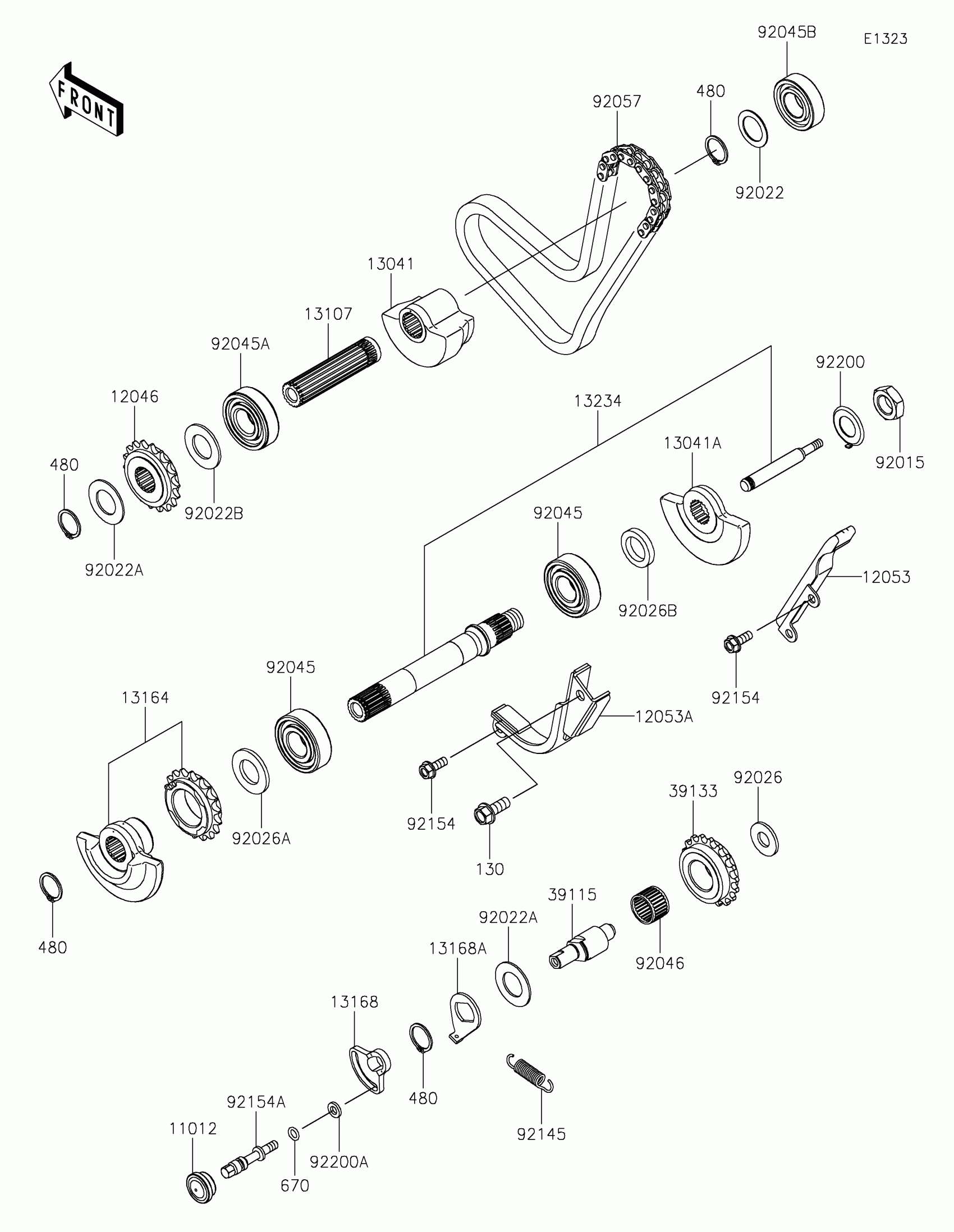

Kawasaki KLR650 S ABS Balancer Diagram

CAP
