Description

Price

41034

DRUM-ASSY,REAR BRAKE

41034-1154

$641.80

41068

AXLE,RR

41068-1237

$87.77

42033

COUPLING-ASSY,REAR HUB

42033-1112

$224.56

42036

SLEEVE,REAR AXLE,L=16

42036-1206

$19.64

42041

SPROCKET-HUB,43T

42041-1260

$75.98

42046

WASHER,17.3X32X3.2

42046-009

$7.84

92004

STUD,8X16

92004-1150

$5.46

92015

NUT,FLANGED,LOCK,8MM

92015-1668

$4.69

92015A

NUT,CASTLE,16MM

92015-1947

$9.91

92033

RING-SNAP,42MM

92033-1041

$6.16

92033A

RING-SNAP,47MM

92033-1042

$4.22

92057

CHAIN,DRIVE,DID520V-2X106L

92057-1253

Unavailable

92075

DAMPER,SHOCK,RR HUB

92075-1068

$47.86

92143

COLLAR,REAR BRAKE DRUM,L=113

92143-1060

$35.74

92143A

COLLAR,REAR AXLE,L=30

92143-1061

$22.59

92143B

COLLAR,REAR AXLE,L=17

92143-1062

$29.71

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6003G

601B6003G

$17.91

601A

BEARING-BALL,#6004UG

601B6004UG

$37.11

601B

BEARING-BALL,#6204UG

601B6204UG

$29.76

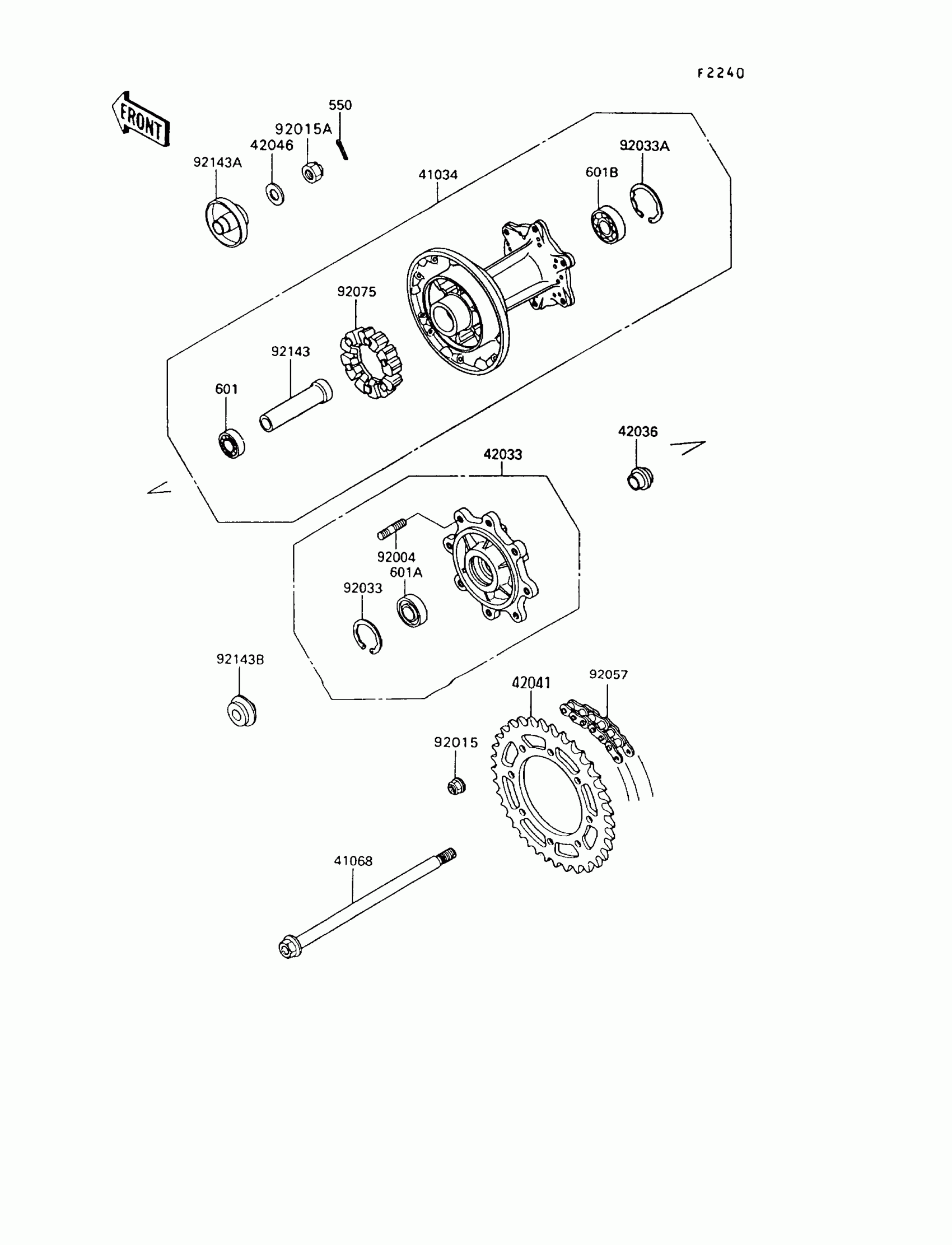

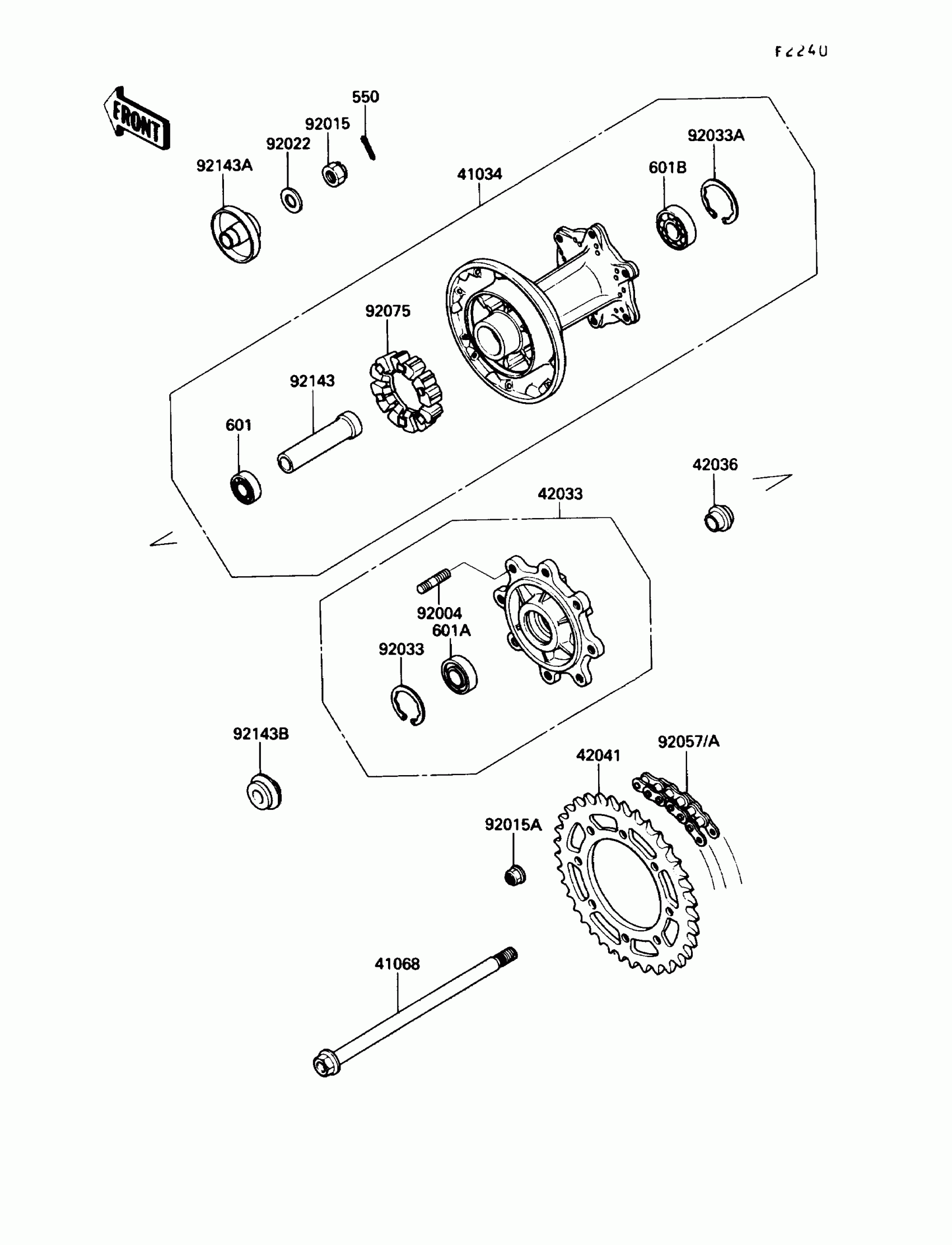

Kawasaki KLR650 Rear Hub Diagram
