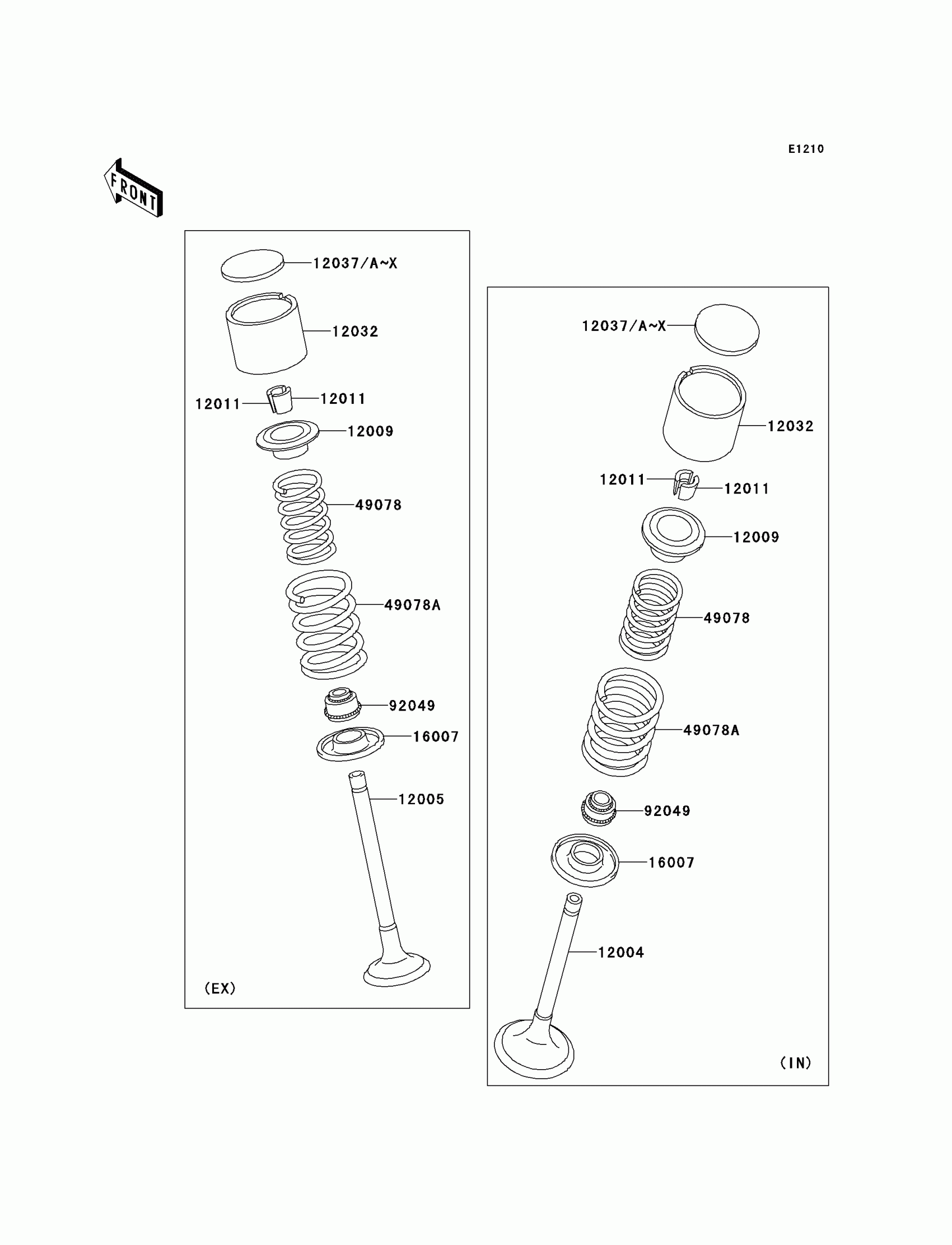

Kawasaki KLR650 New Edition Valve(s) Diagram
#
12004
VALVE-INTAKE
12004-0727
$50.79
12005
VALVE-EXHAUST
12005-0740
$80.39
12009
RETAINER-VALVE SPRING
12009-005
$13.08
12011
COLLET,RETAINER
12011-004
$5.46
12032
TAPPET
12032-1002
$70.18
12037
SHIM,T=2.00
12037-001
Unavailable
12037A
SHIM,T=2.05
12037-002
Unavailable
12037B
SHIM,T=2.10
12037-003
Unavailable
12037C
SHIM,T=2.15
12037-004
Unavailable
12037D
SHIM,T=2.20
12037-005
Unavailable
12037E
SHIM,T=2.25
12037-006
Unavailable
12037F
SHIM,T=2.30
12037-007
Unavailable
12037G
SHIM,T=2.35
12037-008
Unavailable
12037H
SHIM,T=2.40
12037-009
Unavailable
12037I
SHIM,T=2.45
12037-010
Unavailable
12037J
SHIM,T=2.50
12037-011
Unavailable
12037K
SHIM,T=2.55
12037-012
Unavailable
12037L
SHIM,T=2.60
12037-013
Unavailable
12037M
SHIM,T=2.65
12037-014
Unavailable
12037N
SHIM,T=2.70
12037-015
Unavailable
12037O
SHIM,T=2.75
12037-016
Unavailable
12037P
SHIM,T=2.80
12037-017
Unavailable
12037Q
SHIM,T=2.85
12037-018
Unavailable
12037R
SHIM,T=2.90
12037-019
Unavailable
12037S
SHIM,T=2.95
12037-020
Unavailable
12037T
SHIM,T=3.00
12037-021
Unavailable
12037U
SHIM,T=3.05
12037-022
Unavailable
12037V
SHIM,T=3.10
12037-023
Unavailable
12037W
SHIM,T=3.15
12037-024
Unavailable
12037X
SHIM,T=3.20
12037-025
Unavailable
16007
SEAT-SPRING,VALVE
16007-1024
$6.51
49078
SPRING-ENGINE VALVE,INNER
49078-1065
$14.76
49078A
SPRING-ENGINE VALVE,OUTER
49078-1066
$14.76
92049
SEAL-OIL,RV37129.5
92049-016
$18.35
