Description

Price

13127

SHAFT-TRANSMISSION INPUT,15T

13127-0084

$227.59

13128A

SHAFT-TRANSMISSION OUTPUT

13128-0674

$225.70

13144

SPROCKET-OUTPUT,15T

13144-1253

$55.51

13260

GEAR,INPUT TOP,24T

13260-1326

$130.80

13260A

GEAR,OUTPUT LOW,34T

13260-1327

$135.01

13260B

GEAR,OUTPUT TOP,19T

13260-1331

$129.59

13260C

GEAR,INPUT 2ND,18T

13260-1464

$88.46

13260D

GEAR,OUTPUT 2ND,26T

13260-1465

$133.24

13260E

GEAR,OUTPUT 3RD,25T

13260-1467

$133.24

13260F

GEAR,INPUT 3RD,22T

13260-1518

$130.80

13260G

GEAR,INPUT 4TH,22T

13260-1519

$123.43

13260H

GEAR,OUTPUT 4TH,21T

13260-1520

$137.37

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,20.3X29X0.5

92022-1479

$5.05

92022B

WASHER,TOOTHED,25.3X29.5X0.5

92022-1482

$4.69

92022C

WASHER,25.3X30X0.5

92022-159

$8.58

92022D

WASHER,25.3X32X0.5

92022-225

$5.52

92022E

WASHER,20.5X25.5X0.5

92022-252

$6.22

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

92027

COLLAR,25X32X15.3

92027-1800

$28.72

92028

BUSHING,26X35X14

92028-131

$38.06

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP,18MM

92033-029

$9.82

92046

BEARING-NEEDLE,KT202614

92046-1170

$18.16

92055

RING-O,21.5X1.5

92055-0196

$4.45

92143A

COLLAR,25X32X3.0

92143-1721

$10.65

92200

WASHER

92200-0851

$5.98

92200A

WASHER,2ND GEAR

92200-1170

$4.31

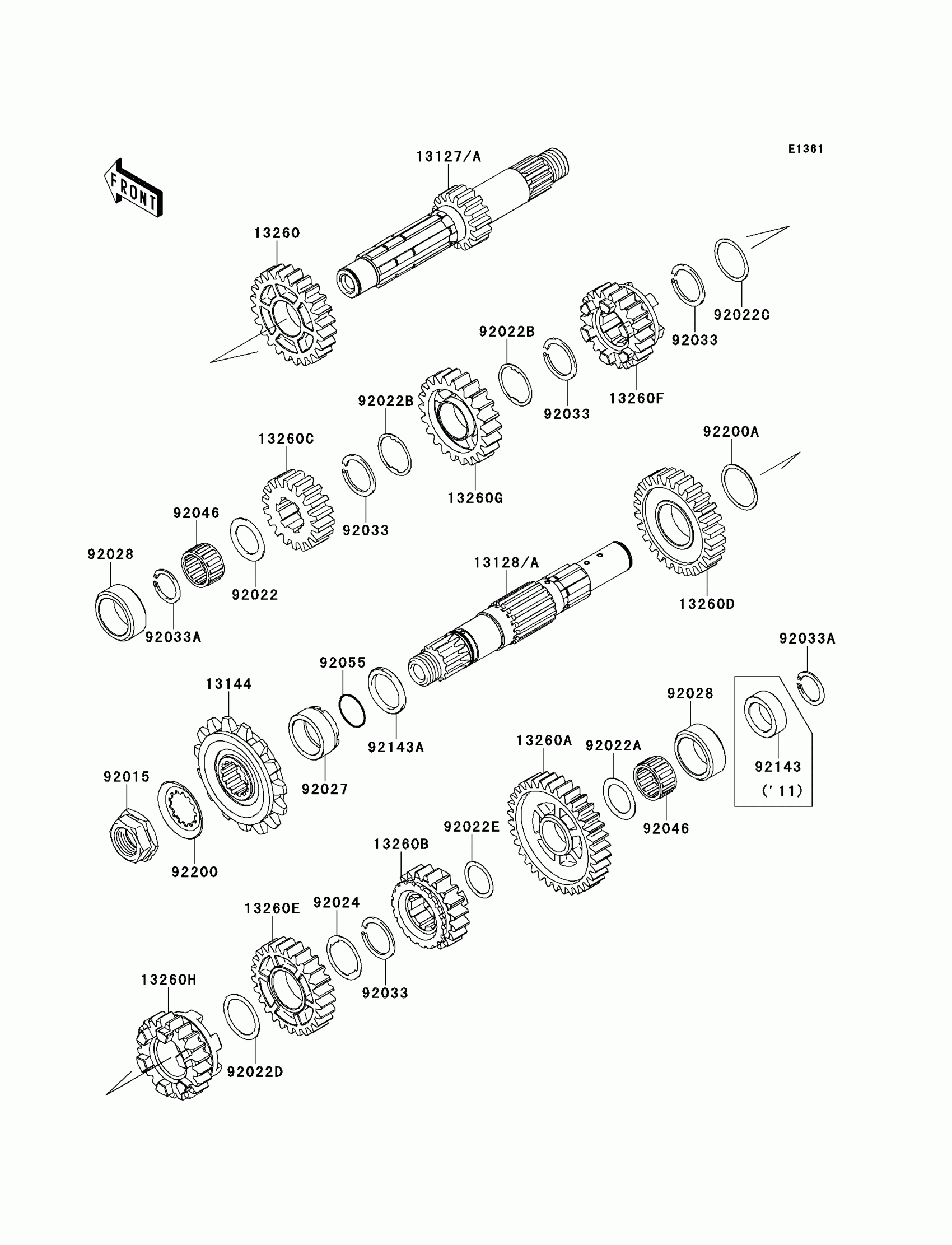

Kawasaki KLR650 New Edition Transmission Diagram
