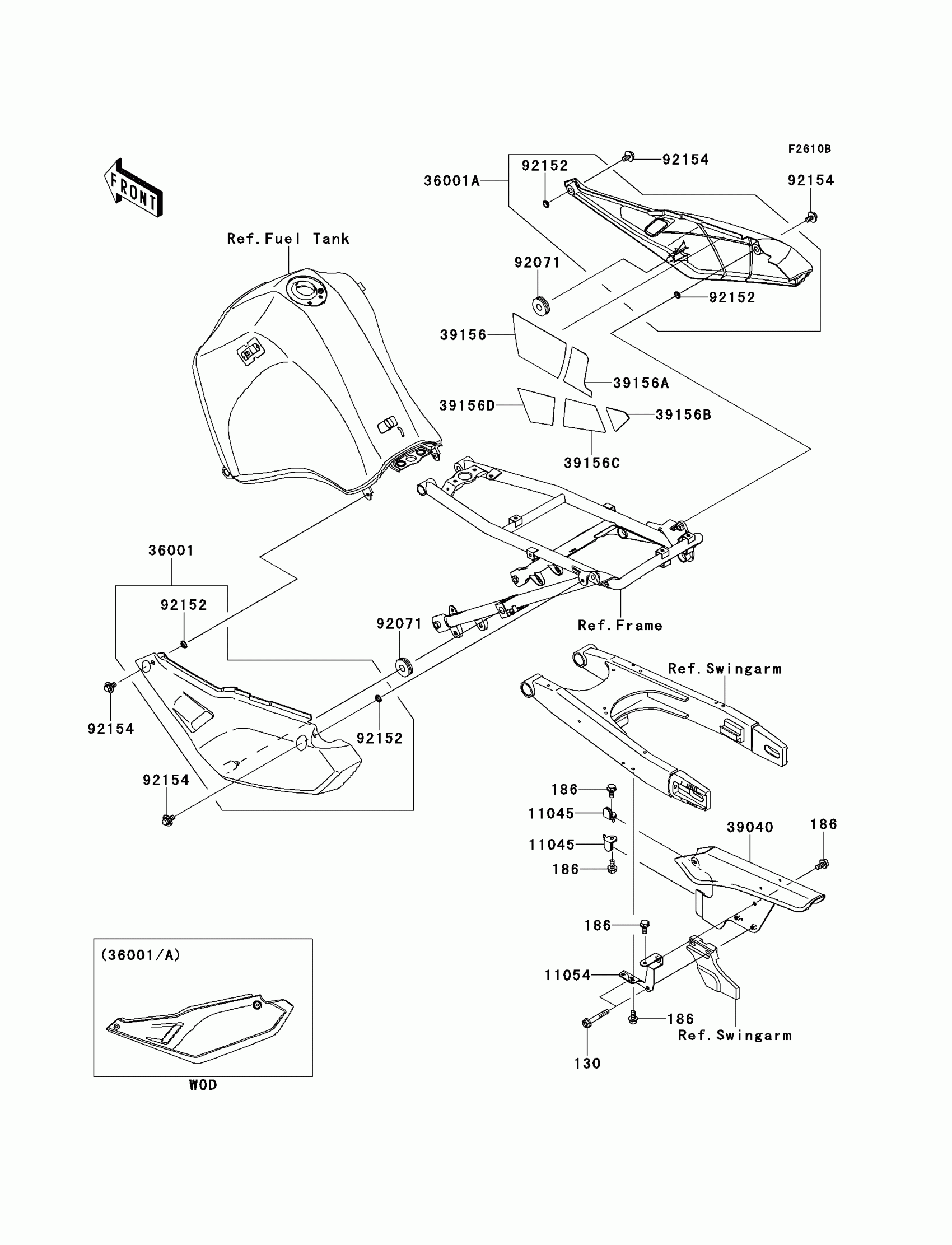

Kawasaki KLR650 New Edition Side Covers/Chain Cover(EES) Diagram

Description

Price

130

BOLT-FLANGED,6X40

130BA0640

$1.20

186

BOLT-UPSET-WP,6X12

186BA0612

$2.51

11045

BRACKET,CHAIN CASE,FR

11045-1335

$10.27

11054

BRACKET,CHAIN CASE,RR

11054-0390

$26.41

36001

COVER-SIDE,LH,EBONY

36001-0098-6C

$121.07

36001A

COVER-SIDE,RH,EBONY

36001-0099-6C

$121.07

39040

COVER-ASSY-CHAIN CASE

39040-0003

$91.56

39156

PAD,SIDE COVER,RH,UPP,FR

39156-0652

$27.54

39156A

PAD,SIDE COVER,RH,UPP,RR

39156-0653

$18.56

39156B

PAD,SIDE COVER,RH,LWR,RR

39156-0654

$15.66

39156C

PAD,SIDE COVER,RH,LWR,CNT

39156-0655

$19.74

39156D

PAD,SIDE COVER,RH,LWR,FR

39156-0656

$22.17

92071

GROMMET

92071-056

$4.26

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92154

BOLT,FLANGED,6X12

92154-0369

$3.05
