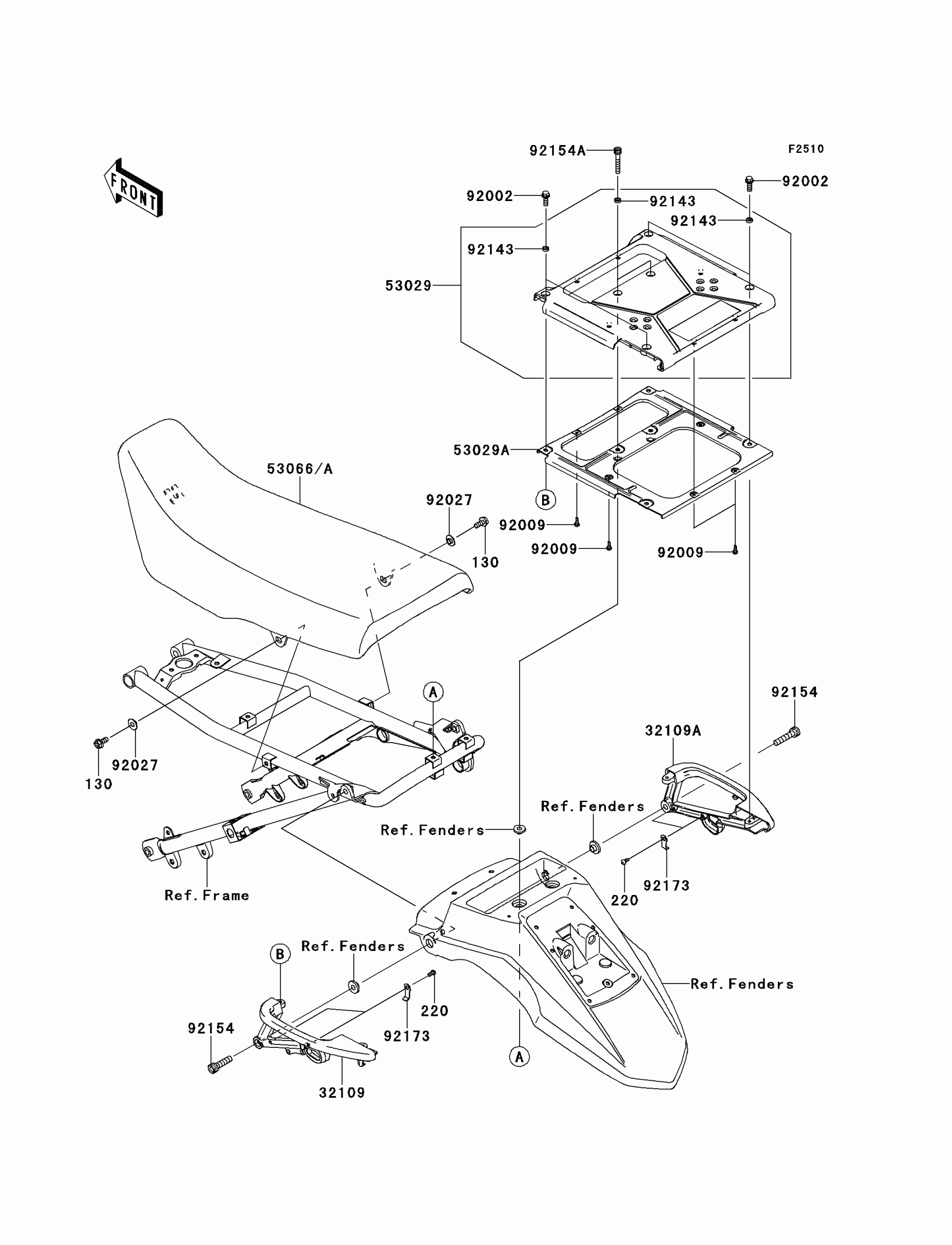

Kawasaki KLR650 New Edition Seat Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

220

SCREW-PAN-CROS,4X8

220AB0408

$0.99

32109

GRIP-FRAME,LH,F.S.BLACK

32109-0018-18R

$118.46

32109A

GRIP-FRAME,RH,F.S.BLACK

32109-0019-18R

$118.46

53029

CARRIER,UPP

53029-0046

$121.47

53029A

CARRIER,LWR

53029-0047

$117.16

53066A

SEAT-ASSY,DUAL,BLACK/GRAY

53066-0430-41B

$408.95

92002

BOLT,6X16

92002-1933

$4.73

92009

SCREW,TAPPING,4X10

92009-1040

$3.69

92027

COLLAR

92027-1794

$4.31

92143

COLLAR

92143-1307

$3.94

92154

BOLT,SOCKET,8X35

92154-0367

$3.05

92154A

BOLT,SOCKET,6X35

92154-0368

$3.05

92173

CLAMP

92173-0210

$3.69
