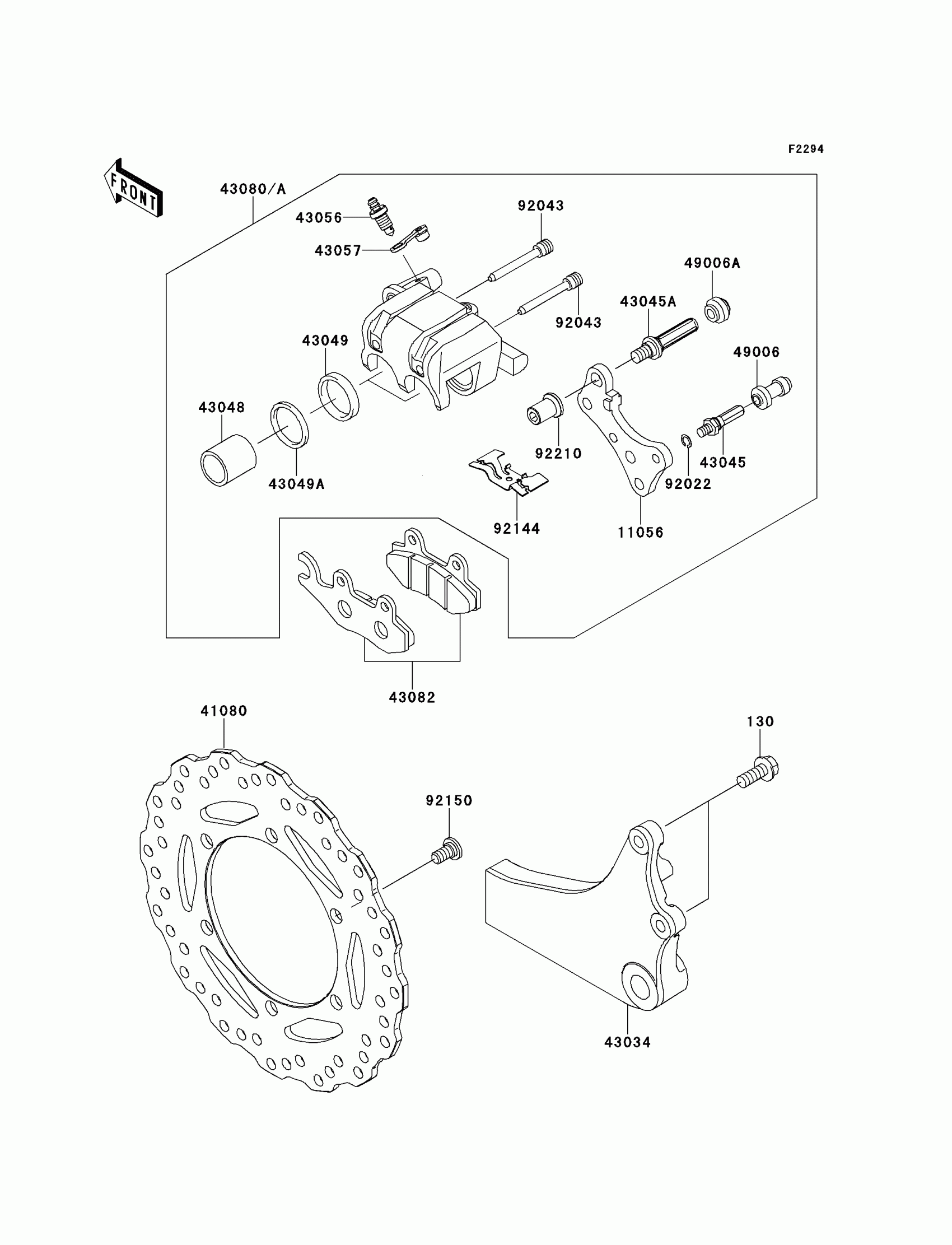

Kawasaki KLR650 New Edition Rear Brake Diagram

Description

Price

130

BOLT-FLANGED,8X20

130BA0820

$4.14

11056

BRACKET,CALIPER

11056-0202

$119.31

41080

DISC,RR,BLACK

41080-0100-11H

$304.63

43034

HOLDER-BRAKE,REAR CALIPER

43034-0030

$165.19

43045

SHAFT-CALIPER

43045-0004

$23.07

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1066

$73.05

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080A

CALIPER-SUB-ASSY,RR,BLACK

43080-0096-25S

$389.21

43082

PAD-ASSY-BRAKE

43082-0080

$68.09

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,8X15

92150-1852

$4.69

92210

NUT

92210-0615

$6.26
