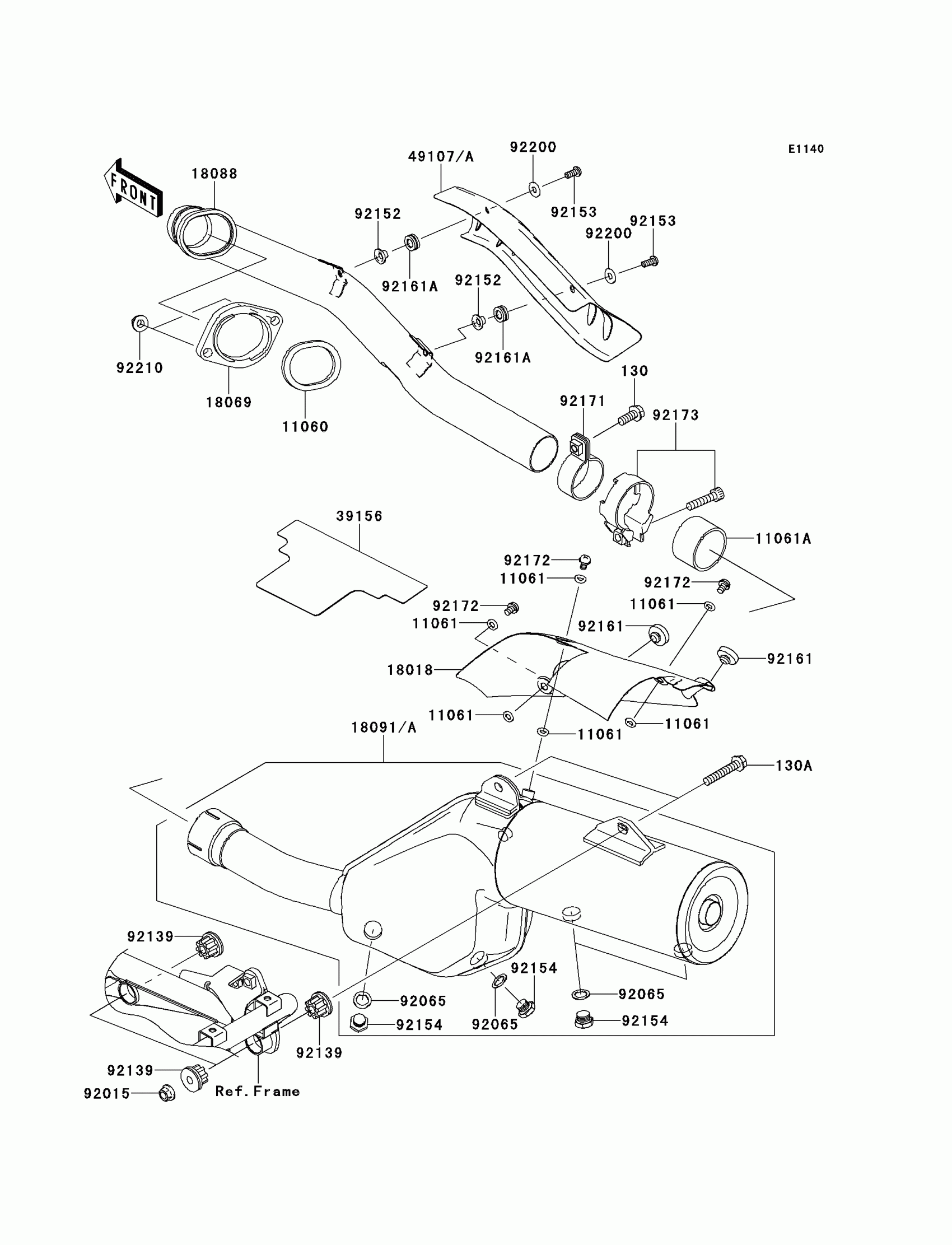

Kawasaki KLR650 New Edition Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X20

130BD0820

$2.80

130A

BOLT-FLANGED

130CC0845

$3.56

11060

GASKET,EXHAUST PIPE HOLDER

11060-1108

$9.20

11061

GASKET,6.2X11.5X1.5

11061-0372

Unavailable

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-0431

$30.42

18018

PLATE-HEAT GUARD

18018-0006

$107.92

18069

HOLDER-EXHAUST PIPE

18069-1063

$32.86

18088

PIPE-EXHAUST

18088-0608

$312.50

18091A

BODY-COMP-MUFFLER

18091-0826

$956.92

39156

PAD

39156-0651

$46.80

49107A

COVER-EXHAUST PIPE

49107-0735

$108.34

92015

NUT,8MM

92015-1402

$4.69

92065

GASKET,12.5X18X1,DRAIN PLUG

92065-073

$4.07

92139

BUSHING

92139-0317

$23.79

92152

COLLAR

92152-0620

$4.69

92153

BOLT,SOCKET,6X14

92153-1886

$2.97

92154

BOLT,12X10

92154-0333

$3.69

92161

DAMPER

92161-0336

$5.65

92161A

DAMPER

92161-1475

$5.33

92171

CLAMP,43MM

92171-0752

$19.42

92172

SCREW,6X10

92172-0097

$2.43

92173

CLAMP

92173-0281

$26.57

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,CAP,8MM

92210-1132

$4.18
