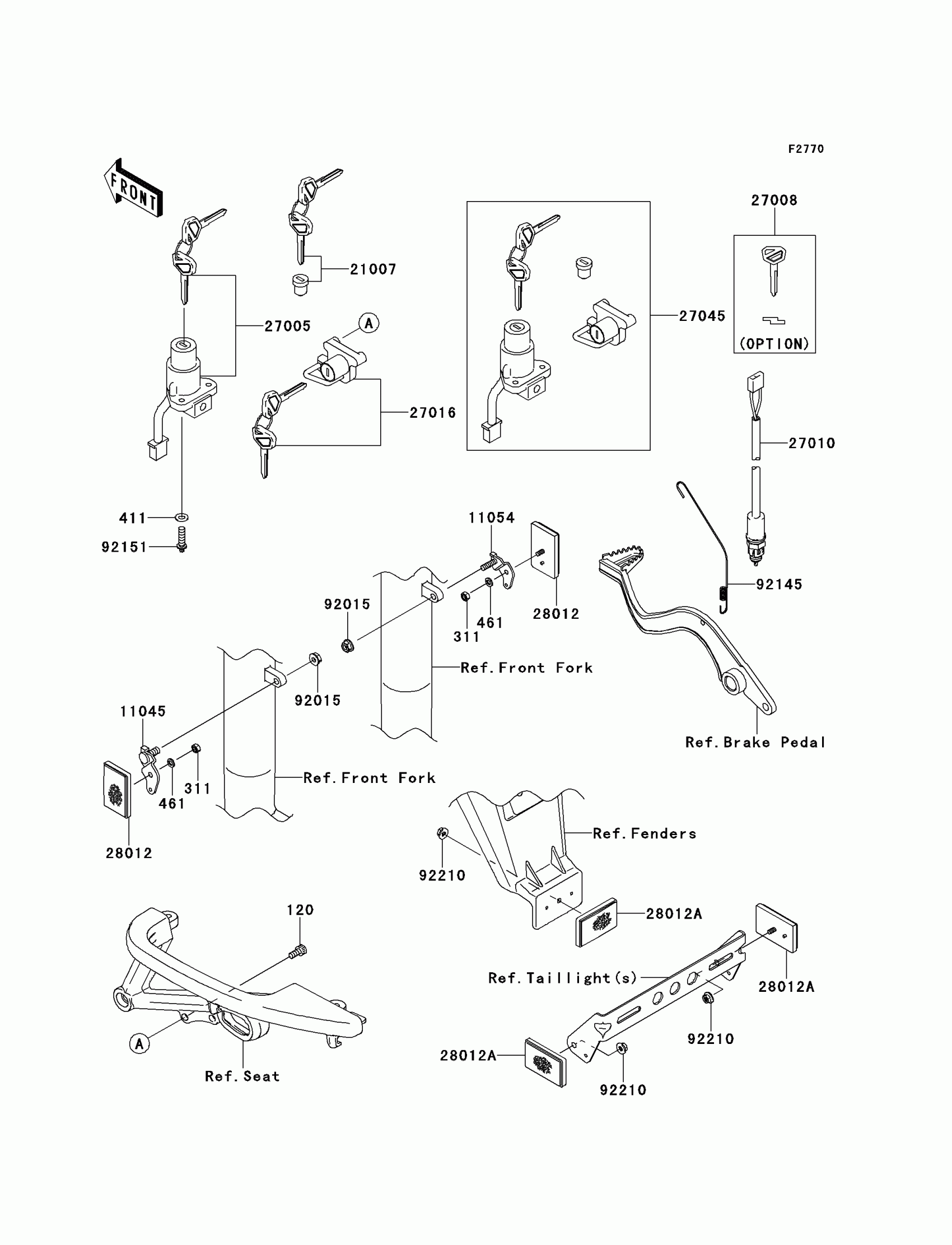

Kawasaki KLR650 New Edition Ignition Switch Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CB0612

$2.49

311

NUT-HEX,5MM

311AB0500

$0.43

411

WASHER-PLAIN,6MM

411AA0600

$2.92

461

WASHER-SPRING,5MM

461DB0500

$1.50

11045

BRACKET,REFLECTOR,FR

11045-1354

$7.68

11054

BRACKET,REFLECTOR,FR

11054-1889

$9.67

21007

ROTOR,LOCK,TANK CAP

21007-5052

$57.26

27005

SWITCH-ASSY-IGNITION

27005-0030

$156.77

27008

KEY-LOCK,BLANK

27008-1220

$17.90

27010

SWITCH,REAR BRAKE

27010-0119

$52.97

27016

LOCK-ASSY,HELMET

27016-5349

$67.81

27045

SWITCH-ASSY

27045-5340

$232.05

28012

REFLECTOR-REFLEX

28012-1003

$22.09

28012A

REFLECTOR-REFLEX

28012-1088

$22.46

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92145

SPRING

92145-0778

$6.20

92151

BOLT,TORX,6X22

92151-1946

$3.94

92210

NUT,FLANGED,5MM

92210-0007

$2.70
