Handlebar

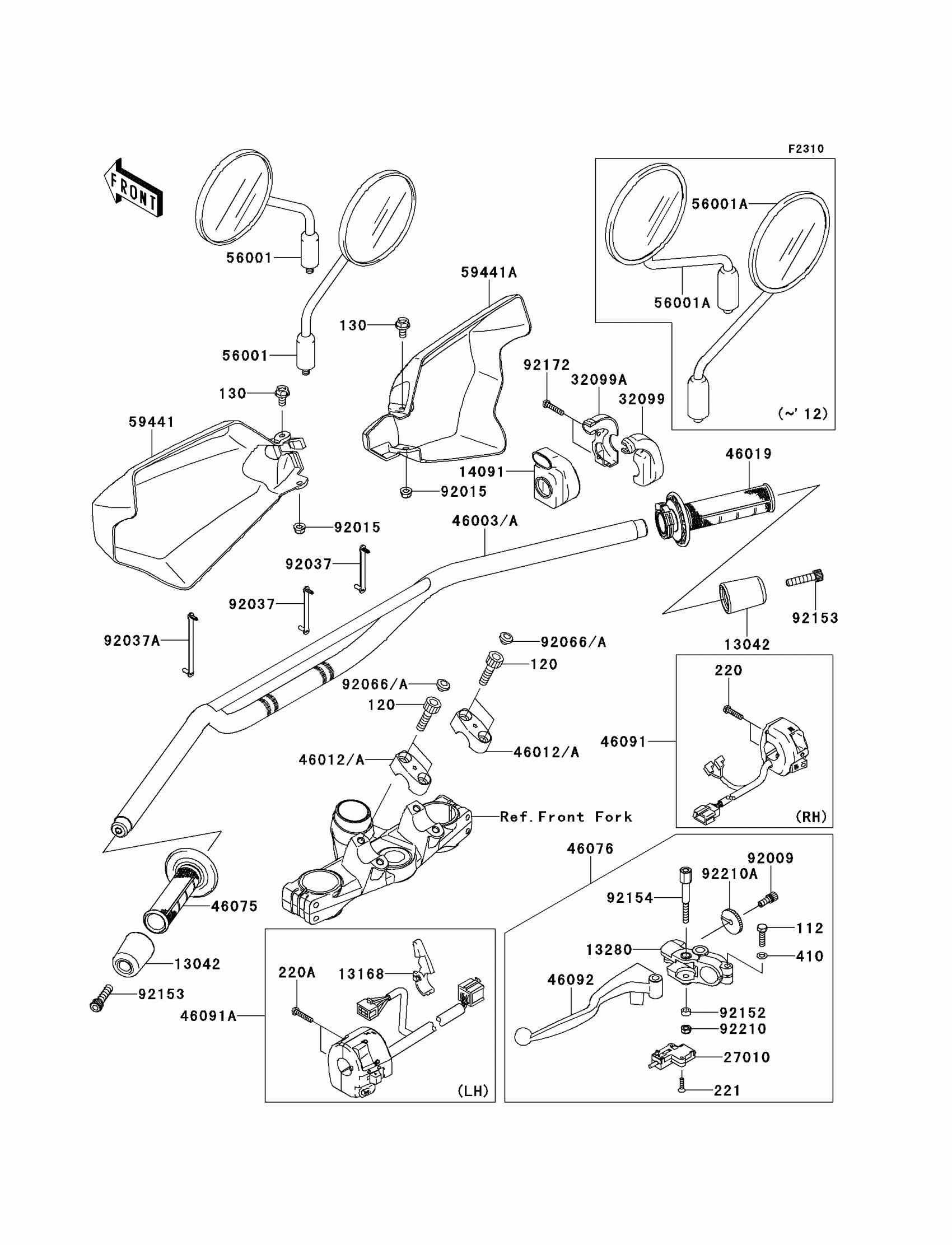

Kawasaki KLR650 New Edition Handlebar Diagram
#
112
BOLT-UPSET,6X22
112BB0622
$4.69
120
BOLT-SOCKET,8X30
120CB0830
$4.69
130
BOLT-FLANGED,6X12
130BB0612
$2.34
220
SCREW-PAN-CROS,5X22
220AB0522
$1.11
220A
SCREW-PAN-CROS,5X25
220AB0525
$3.52
221
SCREW-CSK-CROS,3X16
221AB0316
$3.67
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
13042
WEIGHT,HANDLE
13042-5002
$51.69
13168
LEVER,CHOKE
13168-1756
$2.83
13280
HOLDER,CLUTCH LEVER
13280-0105
$37.17
14091
COVER,THROTTLE CASE
14091-0182
$10.06
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
32099
CASE,THROTTLE,RR
32099-0002
$30.31
32099A
CASE,THROTTLE,FR
32099-0003
$30.31
46003
HANDLE,F.S.BLACK
46003-0104-18R
$135.80
46012
HOLDER-HANDLE,UPP,F.S.BLACK
46012-0042-18R
$30.42
46019
GRIP-ASSY,THROTTLE
46019-0028
$46.85
46075
GRIP,LH
46075-0043
$32.86
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0072
$56.89
46091
HOUSING-ASSY-CONTROL,RH
46091-0135
$150.36
46091A
HOUSING-ASSY-CONTROL,LH
46091-0193
$164.00
46092
LEVER-GRIP,CLUTCH
46092-1206
Unavailable
56001
MIRROR-ASSY
56001-0137
$45.64
59441
COVER-HANDLE,LH,EBONY
59441-0031-6C
$40.59
59441A
COVER-HANDLE,RH,EBONY
59441-0032-6C
$39.85
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92037A
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92066
PLUG
92066-0735
$4.45
92152
COLLAR,6.5X10.5X4
92152-0433
$3.93
92153
BOLT,SOCKET,8X40
92153-1901
$4.20
92154
BOLT,6X58
92154-0370
$9.25
92172
SCREW,5X20
92172-0069
$3.32
92210
NUT,LOCK,6MM
92210-0006
$2.46
92210A
NUT,CABLE ADJUST LOCK,8MM
92210-0311
$14.69
